Name: LM397MFX
Brand: Texas Instruments
SKU: LM397MFX
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM397MFX

Part No.:: LM397MFX

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM397MFX.pdf

Description:: IC COMPARATOR VOLT SGL SOT23-5

In Stock:: 3872

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM397MFX Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Type:
General Purpose
NumberofElements:
1
OutputType:
CMOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
5V ~ 30V, ±2.5V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
13mA @ 5V
Current-Quiescent(Max):
2mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
940µs
Hysteresis:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM397MFX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM397MFX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM397MFX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM397MFX information

Views：

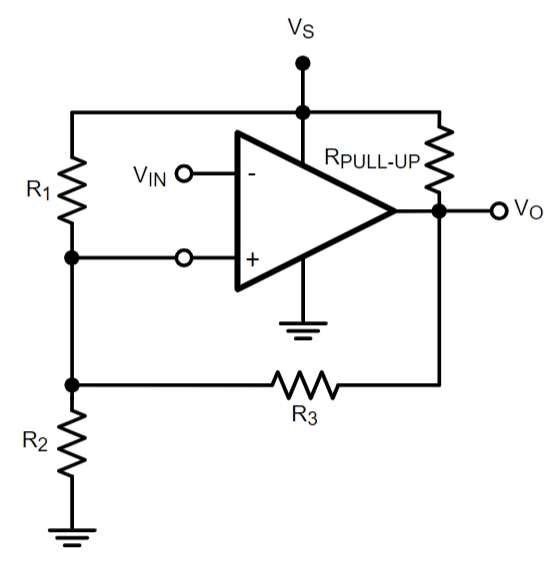

LM397MFX Typical application Circuitry

LM397MFX

LM397MFX is a single voltage comparator designed for precision voltage comparison applications. It is commonly used in electronic circuits that require a decision-making element based on the comparison of two voltages, such as threshold detection, signal conditioning, and simple analog-to-digital conversion interfaces.

Application Scenarios

A typical application for the LM397MFX is in overvoltage protection circuits, where it can monitor the voltage level of a power supply and trigger a protective mechanism if the voltage exceeds a predefined safe threshold.

Parameter Features

- Single Input Voltage Comparator: The LM397MFX specializes in comparing a single pair of voltages, making it straightforward and effective for many comparison tasks.

- Low Input Offset Voltage: Ensures high accuracy in voltage comparison, which is crucial for sensitive applications.

- Wide Supply Voltage Range: Offers flexibility in various design voltages, accommodating a broad spectrum of application requirements.

- Open-Collector Output: Provides versatile output interfacing options, allowing for direct connection to a variety of loads or digital logic levels.

Circuit Connection Example: Overvoltage Protection Circuit

Designing an overvoltage protection circuit with the LM397MFX involves critical considerations to ensure reliable operation:

- Power Supply Connection: Connect the VCC pin of the LM397MFX (pin 5) to the power supply that is being monitored, ensuring that the supply voltage is within the IC's operational range.

- Ground Connection: Attach the GND pin (pin 2) to the system's ground to establish a common reference for voltage comparison.

- Reference Voltage Setup: Apply a fixed reference voltage, representing the maximum safe threshold, to the non-inverting input (pin 3). This can be derived from a stable voltage reference source or a precisely calculated voltage divider network.

- Voltage Monitoring: Connect the power supply voltage, which needs monitoring, to the inverting input (pin 4) of the LM397MFX.

- Protective Mechanism Activation: Utilize the open-collector output (pin 1) to control a relay or a transistor that can disconnect the load or trigger an alarm in case of an overvoltage condition. An external pull-up resistor may be required to set the proper logic level when the comparator output is inactive.

Design Considerations

When implementing a circuit with the LM397MFX, it's essential to ensure the accuracy of the reference voltage, as it determines the overvoltage threshold. The power supply for the LM397MFX should be stable and free from noise to avoid false triggering. Additionally, the output configuration, especially the choice of the pull-up resistor and the load it drives, must be carefully considered to match the circuit requirements. It's also crucial to account for the transient response and any potential delays in the protective mechanism to ensure timely intervention.

In summary, the LM397MFX serves as a reliable component in overvoltage protection circuits, providing a simple yet effective solution for monitoring voltage levels and safeguarding electronic systems. By meticulously addressing reference voltage accuracy, power supply stability, output configuration, and transient response considerations, designers can effectively leverage the LM397MFX for enhanced system protection.
