What is the Additional Feature ?

Name: LM397MF
Brand: Texas Instruments
SKU: LM397MF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM397MF

Part No.:: LM397MF

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM397MF.pdf

Description:: IC COMPARATOR VOLT SGL SOT23-5

In Stock:: 357

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM397MF Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
CMOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
5V ~ 30V, ±2.5V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
13mA @ 5V
Current-Quiescent(Max):
2mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
940µs
Hysteresis:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM397MF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM397MF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM397MF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM397MF information

Views：

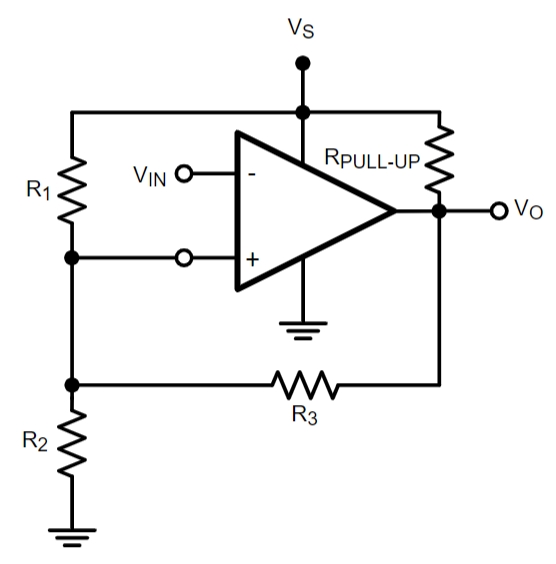

LM397MF Typical application Circuitry

LM397MF

LM397MF is a single voltage comparator designed for applications that require a simple and efficient method to compare two voltages and output a digital signal representing the comparison result.

Application Scenarios

A common application for the LM397MF is in battery voltage monitoring systems, where it can be used to compare the battery voltage against a predefined threshold and provide an indication when the battery voltage falls below this threshold, signaling the need for recharge or replacement.

Parameter Features

- Single Supply Operation: The LM397MF is appropriate for battery-operated devices because it can run on a single power source.

- Low Input Offset Voltage: This is essential for precision monitoring applications as it guarantees precise voltage comparison.

- Broad Supply Voltage Range: This feature increases its adaptability to various circuit designs by being compatible with a range of power supply voltages.

- Open-Collector Output: Allows for easy interfacing with other digital logic or driving a relay or LED for indication purposes.

Circuit Connection Example: Battery Voltage Monitoring

Incorporating the LM397MF into a battery voltage monitoring circuit involves several key steps:

- Power Supply Connection: Connect the VCC pin of the LM397MF (pin 5) to a positive power supply, which can be the battery voltage itself if within the IC's operating range.

- Grounding: Attach the GND pin (pin 2) to the system ground. This establishes a common reference point for the voltage comparison.

- Reference Voltage Setup: Apply a precise reference voltage, corresponding to the desired battery voltage threshold, to the non-inverting input (pin 3). This can be achieved using a voltage divider or a precise reference voltage source.

- Battery Voltage Input: Connect the battery voltage, which needs to be monitored, to the inverting input (pin 4) of the LM397MF.

- Output Indication: The open-collector output (pin 1) can be connected to an LED (with a current-limiting resistor) or a digital input of a microcontroller. The LED or microcontroller can then provide a visual or digital indication when the battery voltage falls below the threshold.

Design Considerations

When designing with the LM397MF, it's important to consider the power supply voltage to ensure it's within the IC's operating range. The choice of the reference voltage is crucial, as it sets the threshold for comparison. Additionally, the output configuration needs to be considered, especially if driving a load directly from the open-collector output, which may require an external pull-up resistor. The input impedance and the layout should also be optimized to minimize noise and ensure stable operation.

In summary, the LM397MF is an effective solution for applications like battery voltage monitoring, providing a simple yet reliable method for voltage comparison. By addressing key design aspects such as power supply compatibility, reference voltage accuracy, output configuration, and noise minimization, designers can effectively utilize the LM397MF in their electronic systems.
