Texas Instruments LM393PWRG3

Part No.:: LM393PWRG3

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM393PWRG3.pdf

Description:: IC COMPARATOR DIFF DUAL 8TSSOP

In Stock:: 2590

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393PWRG3 Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM393PWRG3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393PWRG3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393PWRG3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393PWRG3 information

Views：

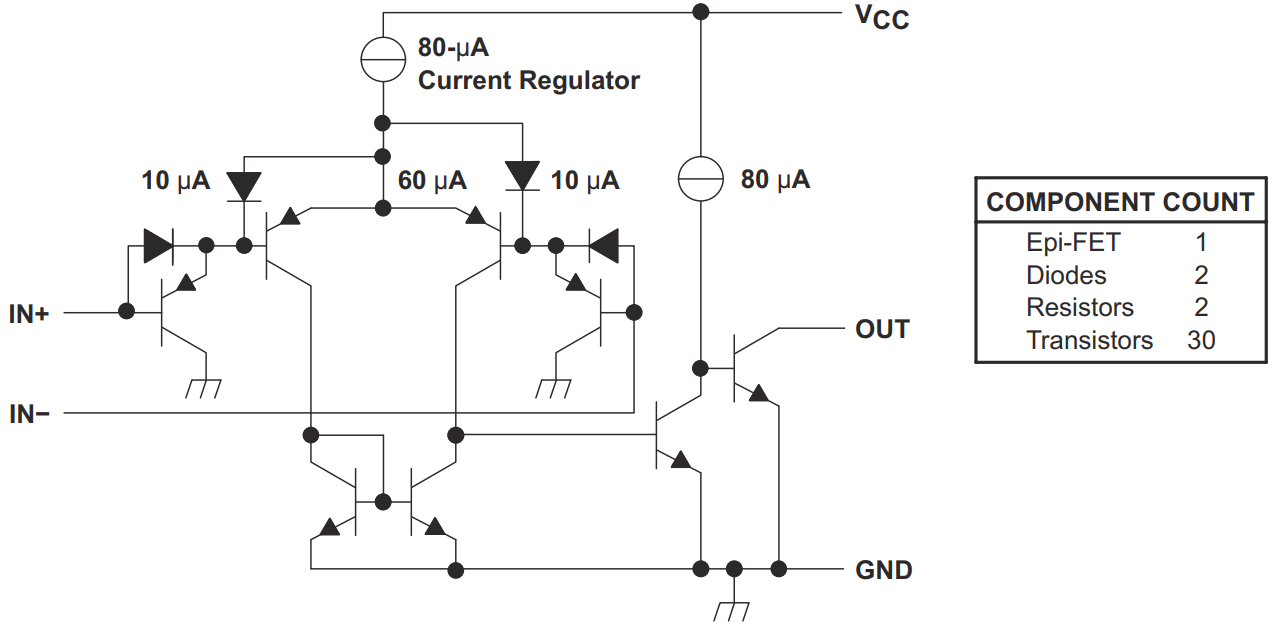

LM393PWRG3 Typical application Circuitry

LM393PWRG3

The LM393PWRG3 is a variant within the LM393 family of integrated circuits, which are dual differential comparators. These devices are essential in various applications that require voltage comparison, such as triggering mechanisms for alarms or monitoring systems. The LM393PWRG3 is particularly notable for its energy efficiency and its capacity to operate across a wide voltage range.

1. Establishing Power Supply Connections: The LM393PWRG3 requires careful attention to its power supply connections. The device features two main pins: Vcc, which is the positive supply voltage, and GND, the ground. Suitable for flexible operation, the LM393PWRG3 can function with supply voltages ranging from 2V to 36V for single supply conditions and ±1V to ±18V for dual supply modes. Secure and precise connections to these pins are essential for the IC's optimal functionality.

2. Comparator Inputs Configuration: The LM393PWRG3 has two comparators, each with an inverting (IN-) and a non-inverting (IN+) input. The inverting input typically connects to a reference voltage, while the non-inverting input is for the voltage that is compared against this reference. Correctly configuring these inputs is critical for the comparators to function correctly.

3. Output Pins Setup: Each comparator within the LM393PWRG3 is associated with an individual output pin. These outputs are 'open-collector' type, which means they require external pull-up resistors to achieve a complete high state in the output. When the voltage at the non-inverting input exceeds the voltage at the inverting input, the output is active low.

4. Enhancing Circuit Stability: To ensure stability in the circuit using the LM393PWRG3, it is advisable to place a bypass capacitor between the Vcc and GND pins, in close proximity to the IC. This capacitor is instrumental in maintaining a consistent supply voltage and reducing noise, which could otherwise interfere with the comparator's operation.

For effective utilization of the LM393PWRG3 in electronic circuits, one must thoroughly understand the pin configuration and the role each pin plays. This IC can be a part of diverse applications, extending from basic voltage level detection to intricate devices like oscillators or converters.

To summarize, integrating the LM393PWRG3 into an electronic design requires meticulous power supply connections, accurate input signal routing, and a proper setup of the output stage with external pull-up resistors. These steps are crucial to exploiting the full potential of this versatile and efficient comparator IC in electronic applications.
