Texas Instruments LM393PE4

Part No.:: LM393PE4

Manufacturer:: Texas Instruments

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: LM393PE4.pdf

Description:: IC DUAL DIFF COMPARATOR 8-DIP

In Stock:: 6675

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393PE4 Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

LM393PE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393PE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393PE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393PE4 information

Views：

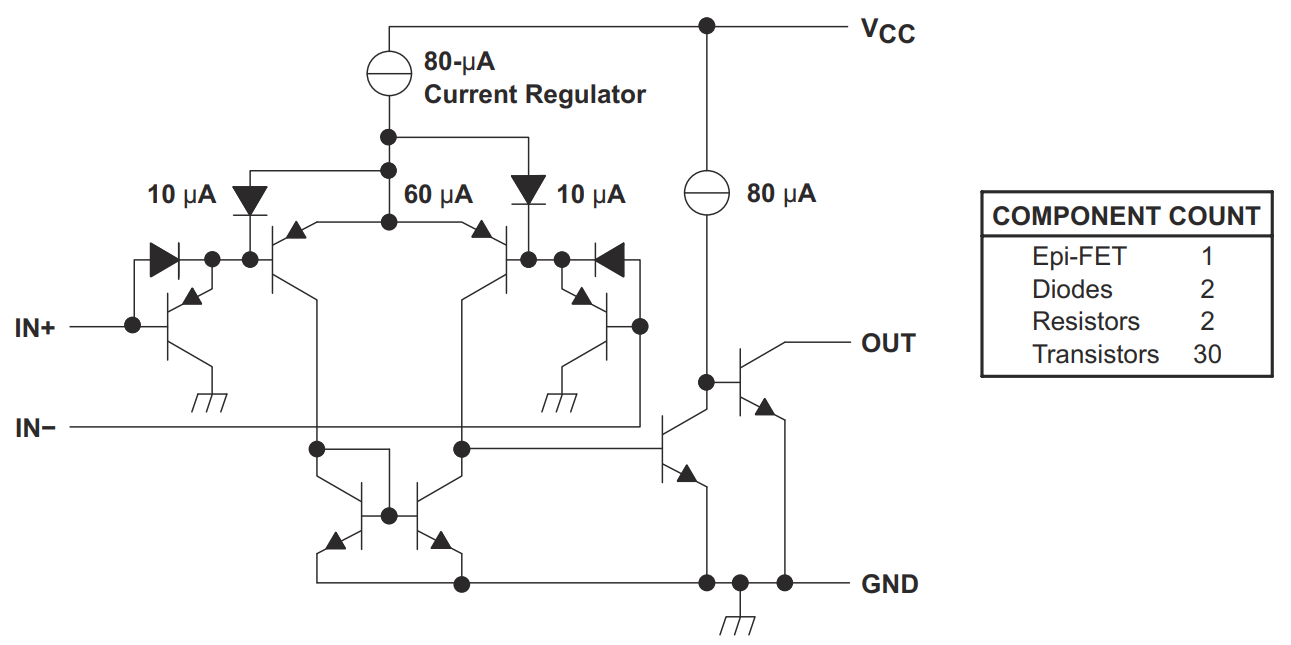

LM393PE4 Typical application Circuitry

LM393PE4

The LM393PE4 is a component of the LM393 family, a set of integrated circuits renowned for their dual differential comparator functionality. These comparators are essential in a myriad of electronic applications that require the precise comparison of voltages, such as in sensor circuits or for triggering events when a certain voltage threshold is crossed. The LM393PE4 is distinguished by its low power usage and the ability to operate with a wide range of supply voltages.

1. Power Supply Connection Strategy: For the LM393PE4 to function, it must be connected to a power supply via two specific pins: Vcc, which is the pin for the positive supply voltage, and GND, the pin for the ground. The LM393PE4 can operate with supply voltages ranging from 2V to 36V in single supply mode, and from ±1V to ±18V in dual supply mode. The connections to these pins must be secure and precise to ensure the IC functions correctly.

2. Comparator Input Pin Structure: The LM393PE4 features two comparators, each with an inverting (IN-) and a non-inverting (IN+) input pin. The inverting input is commonly connected to a stable reference voltage, while the non-inverting input is where the variable voltage, to be compared with the reference, is connected. Proper configuration of these inputs is essential for accurate operation of the comparators.

3. Output Pin Configuration: The LM393PE4 is equipped with individual output pins for each comparator. These are 'open-collector' outputs, which means they require the addition of external pull-up resistors to ensure a defined high-level output state. The output pin will be low when the voltage at the non-inverting input is greater than that at the inverting input, which is a condition often used in digital logic circuits.

4. Improving Circuit Stability: To ensure that the LM393PE4 operates stably, a bypass capacitor should be placed between the Vcc and GND pins. This capacitor serves to stabilize the supply voltage and to minimize potential electrical noise, improving the reliability and performance of the comparator.

Incorporating the LM393PE4 into an electronic circuit demands a solid understanding of its pin configuration to make effective use of its capabilities. The LM393PE4 is versatile and can be used in applications ranging from simple voltage level monitoring to more complex systems like timing circuits or analog-to-digital converters.

In summary, integrating the LM393PE4 into an electronic design requires careful attention to power supply connections, precise routing of input signals, and correct configuration of the output stage with external components. These steps are critical to harness the full potential of this efficient and adaptable comparator IC in various electronic applications.
