Texas Instruments LM393PE3

Part No.:: LM393PE3

Manufacturer:: Texas Instruments

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: LM393PE3.pdf

Description:: IC COMPARATOR DIFF DUAL 8DIP

In Stock:: 34528

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393PE3 Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

LM393PE3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393PE3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393PE3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393PE3 information

Views：

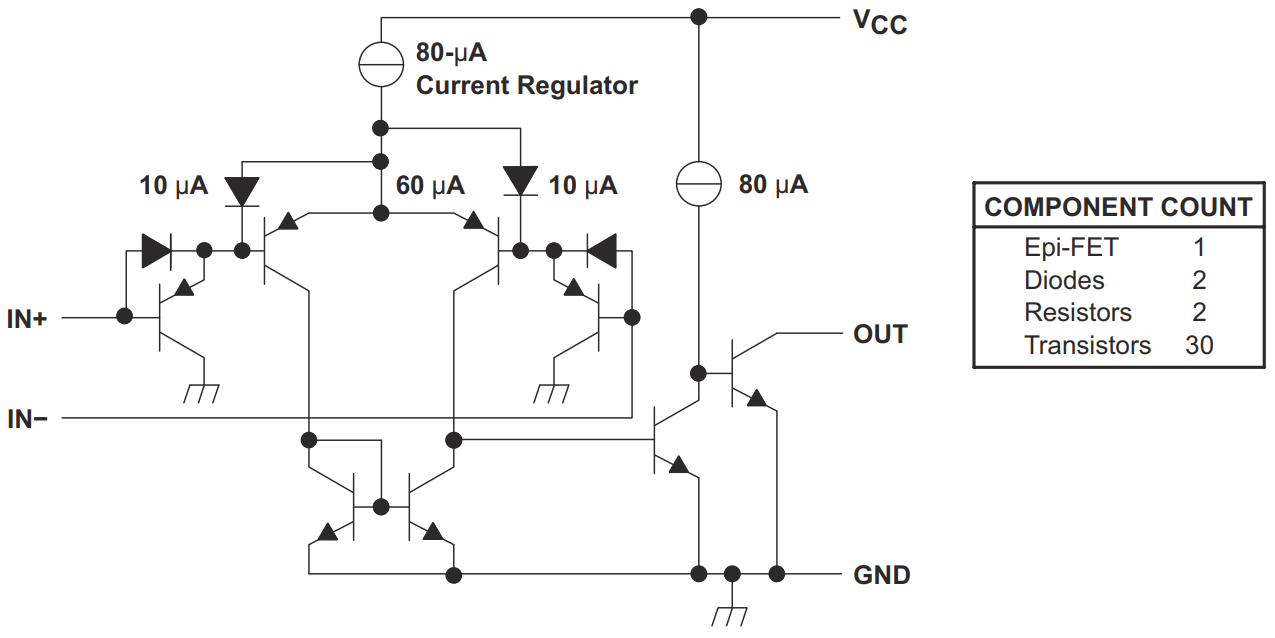

LM393PE3 Typical application Circuitry

LM393PE3

The LM393PE3 is part of the widely recognized LM393 series, which encompasses integrated circuits designed as dual differential comparators. These ICs are indispensable in a multitude of electronic applications that require the comparison of voltage levels, such as signal processing and control systems. The LM393PE3 is especially commended for its economical power usage and its ability to function across an extensive range of supply voltages.

1. Power Supply Pin Connection Considerations: The LM393PE3's operation is dependent on the appropriate connections to its power supply pins. These include Vcc, the pin for positive supply voltage, and GND, the pin for ground. The device is capable of operating with supply voltages from 2V to 36V in single-supply modes, and ±1V to ±18V in dual-supply modes. It is imperative to connect these pins accurately to ensure the IC's proper functionality.

2. Configuration of Comparator Input Pins: Within the LM393PE3, each comparator is equipped with an inverting (IN-) and a non-inverting (IN+) input pin. The inverting input is often linked to a reference voltage, while the non-inverting input is connected to the voltage being compared. Precise configuration of these inputs is crucial for the comparators to function correctly.

3. Design of Output Pins: The LM393PE3 includes separate output pins for each comparator. The outputs are of the 'open-collector' type, necessitating external pull-up resistors for proper high-level signal output. The output becomes low when the voltage at the non-inverting input is higher than the inverting input's voltage, which is commonly utilized in interfacing with digital logic circuits.

4. Enhancing Circuit Stability: For circuits utilizing the LM393PE3, it is recommended to add a bypass capacitor between the Vcc and GND pins, positioned close to the IC. This capacitor is critical in stabilizing the supply voltage and reducing noise, thus improving the reliability and performance of the comparator.

Incorporating the LM393PE3 into an electronic circuit requires detailed knowledge of the pin layout and an understanding of each pin's role. This IC can be effectively used in diverse applications, from straightforward voltage monitoring to more complex devices such as oscillators or analog-to-digital converters.

In summary, the integration of the LM393PE3 into an electronic design demands meticulous management of power supply connections, precise input signal handling, and correct configuration of the output stage with external components. Adhering to these protocols ensures that the LM393PE3's full potential as a versatile and efficient comparator IC is leveraged in electronic applications.
