ON Semiconductor LM393N

The LM393N could be a broadly utilized low-power comparator IC, perfect for comparing two voltages and creating a advanced yield showing which input is higher. Known for its unwavering quality, straightforwardness, and moo control utilization, it exceeds expectations in different electronic applications, making it a prevalent choice for originators.

What is the LM393N Comparator?

The LM393N could be a double comparator IC, meaning it contains two autonomous voltage comparators in a single bundle. It's commonly utilized in applications requiring level detection, waveform shaping, and other analog flag handling assignments. Not at all like operational intensifiers (op-amps), comparators just like the LM393N are particularly outlined to switch between two unmistakable yield states, making them perfect for computerized meddle.

Key Highlights of the LM393N

The LM393N offers a few key highlights that make it alluring for different applications:

Moo Control Utilization: It works with negligible control, making it appropriate for battery-powered gadgets.
Wide Supply Voltage Extend: The IC can work with voltages as moo as 2V and as tall as 36V.
Open-Collector Yield: This permits the comparator to interface with distinctive rationale levels, making it flexible for computerized circuits.
Dual Comparator Configuration: Having two comparators in a single package saves space and simplifies design.

These features make the LM393N suitable for many real-world applications. Let's explore some of the most common uses and provide tips on how to get the best performance out of this IC.

LM358 vs. LM393: Pinouts and Inside Circuitry

When comparing the LM393N with the LM358, both are prevalent ICs, but they serve distinctive capacities and have distinctive inside plans. Understanding these contrasts can offer assistance in choosing the correct component for your application.

Pinouts Comparison

The LM358 could be a double operational speaker, whereas the LM393N may be a double comparator. In spite of the fact that they share comparative stick arrangements, there are key contrasts in their capacities.

LM358 Pinout: The LM358 operational intensifier contains two autonomous op-amps inside a single coordinates circuit bundle. It highlights inputs for the altering and non-inverting terminals of each op-amp, as well as yield pins for each intensifier. Also, the LM358 incorporates committed control supply pins, labeled V+ for the positive supply voltage and V− for the negative supply voltage.

LM393 Pinout: The LM393N comparator too has two free comparators in a single bundle. In any case, rather than giving nonstop analog yield just like the LM358, the LM393N gives computerized yield (open-collector) that requires a pull-up resistor to operate appropriately. The pinout incorporates rearranging and non-inverting inputs for each comparator, yield pins, and control supply pins (Vcc and GND).

Inner Circuit Comparison

The inner structures of the LM358 and LM393 vary significantly, reflecting their particular utilitarian purposes.

LM358 Inside Circuit: The LM358 is an operational speaker, planned for analog signal handling. It has an inside input circle that stabilizes the yield, allowing it to intensify little input signals into bigger output voltages. The inner circuitry is optimized for moo input balanced voltage and tall pick up.

LM393 Inner Circuit: The LM393N, on the other hand, could be a comparator. It needs the inner input circle display in op-amps, as it's designed to switch quickly between two states instead of giving a ceaseless analog yield. The open-collector output stage allows it to interface easily with digital circuits. Internally, the LM393N is optimized for fast response times and low power consumption rather than precise amplification.

These differences between the LM358 and LM393 make each more suitable for specific tasks. For analog amplification, the LM358 op amp is the better choice. However, when you need a fast-switching digital output, the LM393N comparator is the preferred option.

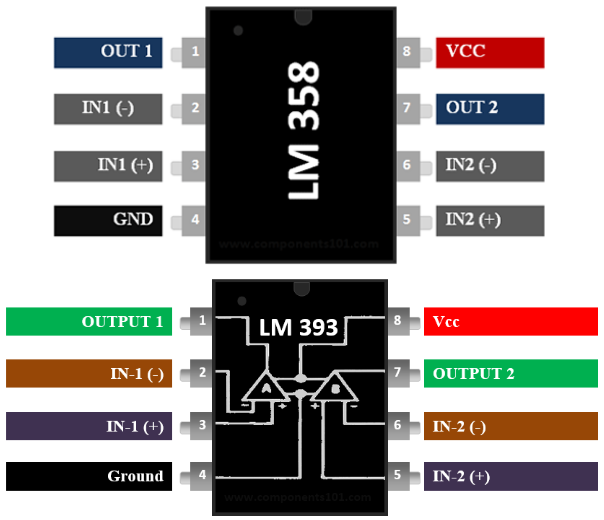

LM358 vs LM393: Pinouts

LM358 and LM393 share the same pinout configurations

Real-World Applications of the LM393N

1. Zero-Crossing Finder

A zero-crossing locator could be a circuit that distinguishes when a signal crosses the zero voltage point. Typically significant in applications such as AC flag checking, waveform era, and phase-locked circles. The LM393N's quick reaction time and open-collector yield make it an fabulous choice for actualizing a zero-crossing finder.

In this application, the LM393N compares the input AC flag to the reference voltage (ordinarily ground or 0V). When the AC flag crosses zero, the comparator switches its yield, making a square wave that speaks to the zero-crossing focuses.

Tip:

When planning a zero-crossing locator with the LM393N, guarantee that your input flag is appropriately conditioned. Employing a little resistor-capacitor (RC) organize to channel out high-frequency clamor can progress the precision of your locator.

2. Voltage Level Detecting

Voltage level detecting is essential in control supply checking, battery charging frameworks, and different other electronic frameworks. The LM393N is broadly utilized to make voltage level finders, where it compares the input voltage to a settled reference voltage. For case, in a battery charger, the LM393N can be utilized to distinguish when the battery voltage surpasses a predefined limit, activating a charging circuit or providing a low-battery caution.

Tip:

When setting up a voltage level detector, select your reference voltage carefully. The precision of your detecting circuit depends intensely on the solidness of this reference. Consider employing a exactness voltage reference IC in case tall exactness is required.

3. Temperature Observing

Temperature observing circuits frequently depend on thermistors or other temperature sensors to deliver a voltage relative to temperature. The LM393N can be utilized to compare this voltage against a reference, giving an yield that shows whether the temperature is inside a craved run. This makes the LM393N a profitable component in thermostats, cooling frameworks, and security gadgets where temperature control is basic.

Tip:

In temperature checking circuits, minimize the length of sensor wires to diminish the impact of clamor and parasitic capacitance. Protected cables may too offer assistance decrease impedances in touchy applications.

Major Differences Between LM358 and LM393

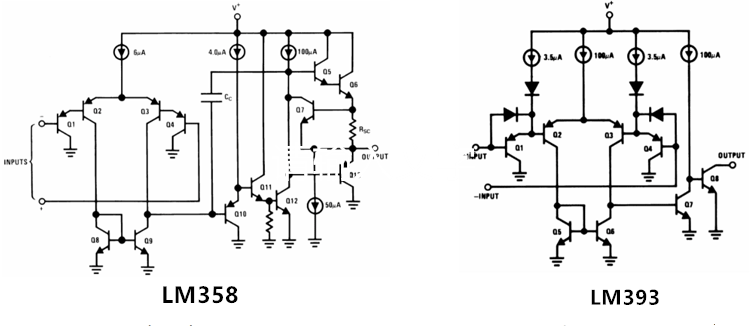

LM358 vs LM393: Internal Circuit

Comparators in Op-Amp Roles: What to Watch Out For

Whereas comparators and operational speakers (op-amps) share comparative inside structures, they serve distinctive purposes. It's common for originators to consider employing a comparator as an op-amp in straightforward applications, but there are some key differences to be beyond any doubt .

Comparators are designed for digital output, meaning they switch between high and low states, whereas op-amps provide continuous analog output. Using a comparator in place of an op-amp can lead to performance issues, such as instability and oscillation. For applications that require analog signal processing, stick to using op-amps like the LM358 op amp instead of comparators.

4. LM393N as a Simple Oscillator

The LM393N can be used to create a basic oscillator circuit, generating square waves that are useful in clock generation, signal modulation, and timing applications. By connecting a capacitor and resistors in the right configuration, you can achieve a simple relaxation oscillator that toggles between high and low states at a frequency determined by the component values.

Tip:

When designing oscillators with the LM393N, select component values that offer a good balance between frequency stability and amplitude. Additionally, ensure that your power supply is stable to avoid unwanted frequency shifts.

Using an Op Amp as a Comparator: Considerations

In certain circumstances, creators may select to utilize an operational intensifier as a comparator for the purpose of comfort or accessibility. In any case, utilizing an op amp as comparator can lead to execution issues.Op amps are designed to work in closed-loop configurations, providing continuous analog output. Comparators, like the LM393N, are optimized for fast switching and open-loop operation, meaning they are more suitable for digital output applications.

5. Window Comparator

A window comparator is a circuit that detects whether an input voltage falls within a specific range. This approach is advantageous in different applications, counting battery checking, flag conditioning, and sensor meddle. The LM393N can be designed as a window comparator, with one comparator identifying the upper voltage restrain and the other identifying the lower voltage restrain. The output signals can then be combined to indicate whether the input is within the desired range.

Tip:

When designing a window comparator, ensure that the reference voltages for the upper and lower limits are stable and noise-free. This will improve the accuracy of your detection circuit.

Conclusion

The LM393N is a highly flexible and reliable comparator IC that finds its way into a wide range of applications, from zero-crossing detectors to voltage level sensing and oscillators. Understanding the strengths and limitations of comparators versus operational amplifiers can help you choose the right component for your design. For analog signal processing, the LM358 op amp is often a better choice, while the LM393N shines in digital interfacing tasks where fast switching and low power consumption are essential.

When designing circuits, always consider the application requirements and component characteristics to ensure optimal performance. Whether you're employing a comparator as op amp or testing with the op amp as a comparator arrangement, knowing the trade-offs will assist you accomplish way better comes about in your ventures.

With cautious plan and component determination, the LM393N can be a capable instrument in your gadgets weapons store, making a difference you make proficient, solid, and cost-effective arrangements.
