Rohm Semiconductor LM393DT

Part No.:: LM393DT

Manufacturer:: Rohm Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM393DT.pdf

Description:: IC COMPARATOR DUAL 0.4MA 8-SOIC

In Stock:: 3284

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393DT Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Signature
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
7mV @ 5V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM393DT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393DT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393DT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393DT information

Views：

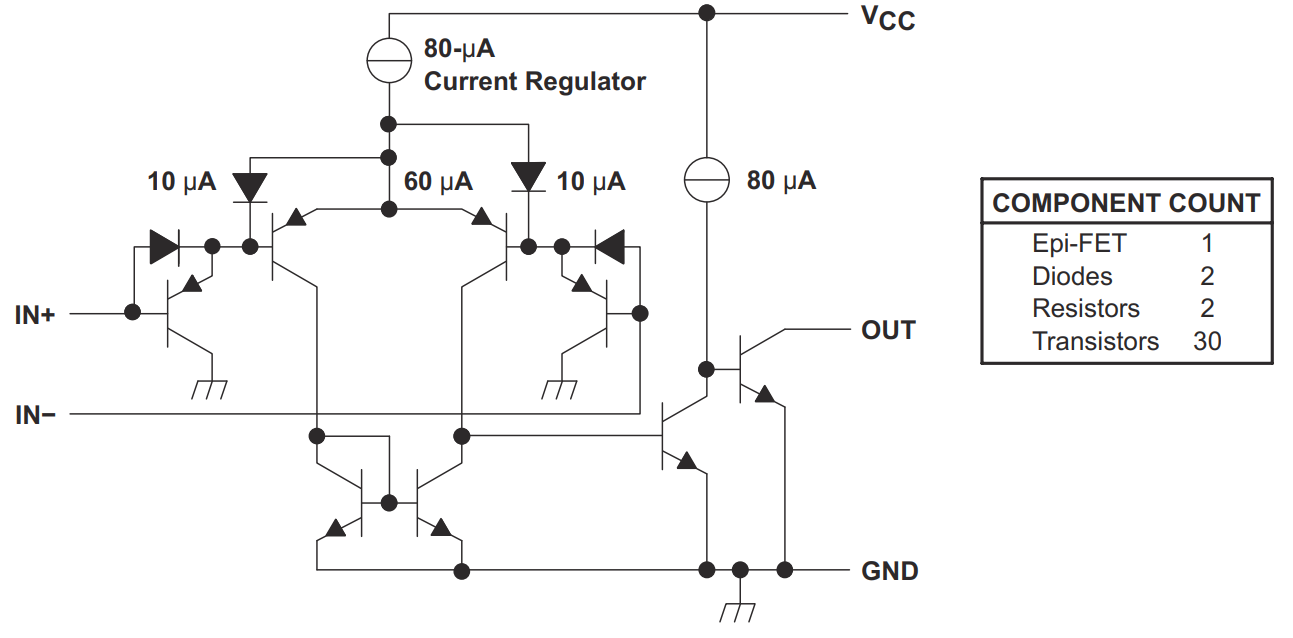

LM393DT Typical application Circuitry

LM393DT

The LM393DT is a significant variant in the LM393 series of integrated circuits, recognized for their dual differential comparators. This series is acclaimed in electronic design for its adeptness in voltage comparison, crucial in a variety of electronic applications. The LM393DT is particularly valued for its minimal power requirements and adaptability to operate across a diverse array of supply voltages.

1. Connection of Power Supply: The effective functioning of the LM393DT hinges on its power supply connections. It includes two essential pins: Vcc, the positive supply voltage, and GND, the ground. The LM393DT is engineered to work within a voltage range, typically from 2V to 36V for single supply operations, and ±1V to ±18V for dual supply configurations. Accurate and stable connections to these pins are crucial for the IC to perform optimally.

2. Configuring Input Pins: The dual comparator functionality of the LM393DT is encapsulated in its input pin configuration. Each comparator in the LM393DT has an inverting (IN-) and a non-inverting (IN+) input. These inputs are central to the comparator's function, receiving the voltages to be compared. Typically, the inverting input is used for a fixed reference voltage, while the non-inverting input connects to a variable voltage that is compared against this reference.

3. Output Pin Setup: The LM393DT features distinct output pins for each comparator. These outputs are designed as 'open-collector', necessitating the inclusion of external pull-up resistors to ensure proper functionality. Many digital interface applications can benefit from the LM393DT because of its versatile output, which is high when the contrary is true and low when the voltage at the non-inverting input is higher than the voltage at the inverting input.

4. Stabilizing the Circuit: It is recommended to integrate a bypass capacitor in the circuit using the LM393DT. Positioned between the Vcc and GND pins, preferably close to the IC, this capacitor aids in maintaining a stable supply voltage and reducing noise, which is crucial for the efficient operation of the comparator.

Incorporating the LM393DT into an electronic circuit demands a comprehensive understanding of its pin layout and their specific functionalities. This knowledge is vital for effectively leveraging the LM393DT in various applications, from straightforward voltage level detection to more complex systems like oscillators and analog-to-digital converters.

In summary, the successful implementation of the LM393DT in electronic designs is contingent on meticulous power supply management, precise input signal connections, and appropriate configuration of the output stage. These considerations are key to fully harnessing the capabilities of this versatile and efficient comparator IC in a broad spectrum of electronic applications.
