Texas Instruments LM393DRE4

Part No.:: LM393DRE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM393DRE4.pdf

Description:: IC DUAL DIFF COMPARATOR 8-SOIC

In Stock:: 2500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393DRE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM393DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393DRE4 information

Views：

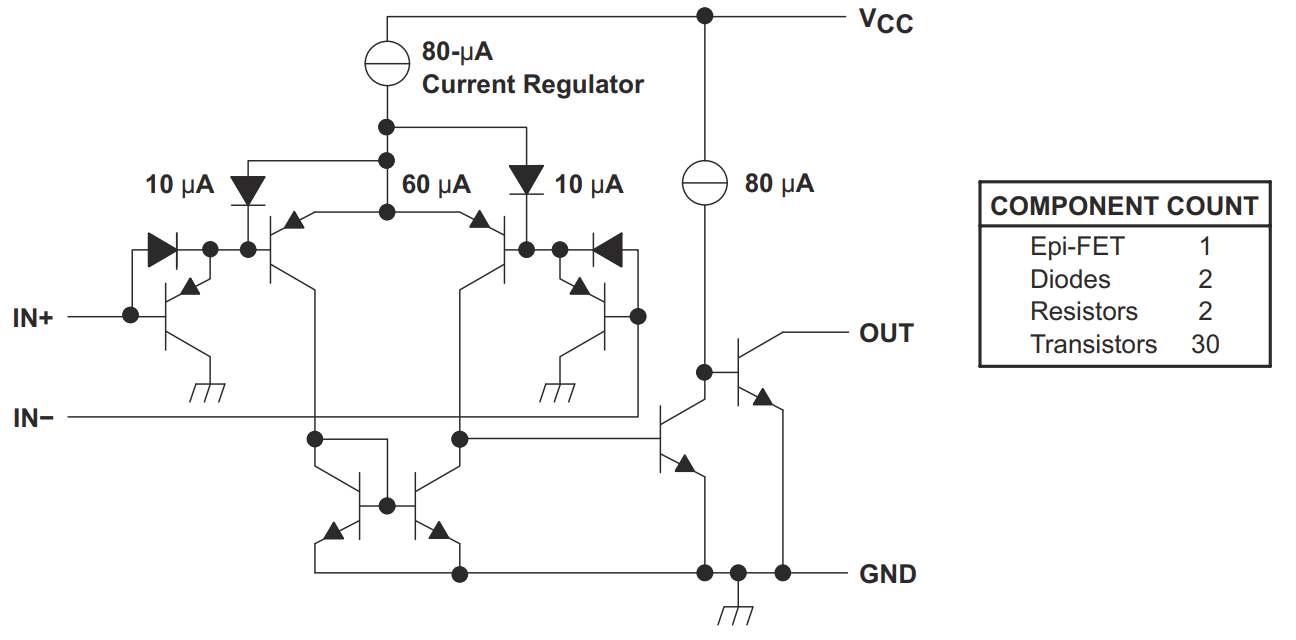

LM393DRE4 Typical application Circuitry

LM393DRE4

The LM393DRE4 belongs to the LM393 series of integrated circuits, renowned for their dual differential comparators. This series is particularly notable for its versatility in voltage comparison tasks across various electronic applications. The LM393DRE4 stands out for its efficient performance in conditions requiring low power and wide voltage range operation.

1. Voltage Supply Connections: Central to the functionality of the LM393DRE4 is its power supply configuration. It comprises two primary pins: Vcc, the positive supply voltage, and GND, the ground connection. The LM393DRE4 operates effectively with a supply voltage ranging typically from 2V to 36V for a single supply setup or ±1V to ±18V for dual supply configurations. Ensuring these connections are correctly established is paramount for the IC's optimal functioning.

2. Input Pins Configuration: The dual comparator nature of the LM393DRE4 is defined by its input pins. Each comparator has an inverting (IN-) and a non-inverting (IN+) input. These pins receive the signals that are to be compared. The inverting input usually receives a fixed reference voltage, while the non-inverting input is where the variable signal, subject to comparison, is connected.

3. Output Connections: Unique to the LM393DRE4, each comparator has its individual output pin. Given that these outputs are designed as 'open-collector', it is essential to connect an external pull-up resistor to each output. The output behavior is such that it goes low when the voltage at the non-inverting input surpasses that at the inverting input, and remains high in the opposite scenario. This functionality makes the LM393DRE4 apt for diverse digital interfacing applications.

4. Circuit Stability Enhancements: A key recommendation for using the LM393DRE4 is the inclusion of a bypass capacitor. Placed between the Vcc and GND pins, close to the IC, this capacitor helps in stabilizing the voltage supply and mitigating noise, ensuring smoother operation of the comparator.

Incorporating the LM393DRE4 into a circuit necessitates a thorough understanding of its pin layout and their respective roles. This understanding is crucial for leveraging the LM393DRE4's capabilities in various applications, from simple voltage level detection to more complex systems like oscillators and analog-to-digital converters.
