ON Semiconductor LM393DR2GH

Part No.:: LM393DR2GH

Manufacturer:: ON Semiconductor

Package:: -

Datasheet:

Description:: IC COMP DUAL OFFSET LV 8SOIC

In Stock:: 2683

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM393DR2GH Specifications

Package/Case:
-
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Obsolete
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
-

LM393DR2GH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM393DR2GH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM393DR2GH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM393DR2GH information

Views：

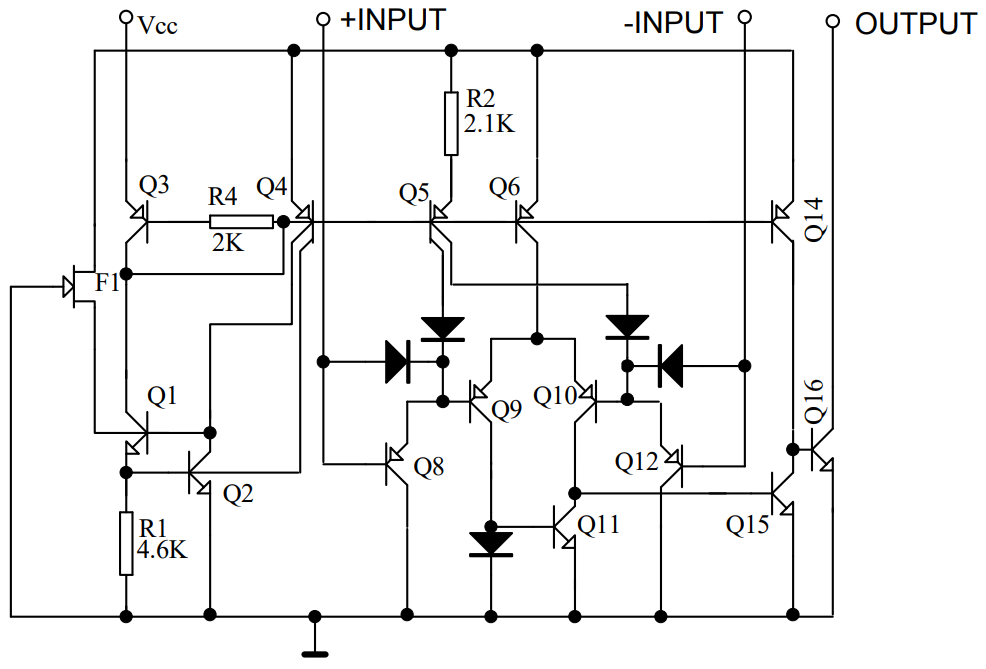

LM393DR2GH Typical application Circuitry

LM393DR2GH

The LM393DR2GH is part of the LM393 series of integrated circuits, which are characterized by dual differential comparators. These devices are widely used in electronic circuits for comparing voltages and are known for their low power consumption and wide voltage range compatibility. The LM393DR2GH, in particular, is designed for precision voltage comparison tasks in various applications.

1. Pin 1 (Output of Comparator A - LM393DR2GH): In the LM393DR2GH, this pin serves as the output for the first comparator. It provides the comparison result of the first comparator unit.

2. Pin 2 (Inverting Input of Comparator A - LM393DR2GH): This pin functions as the inverting input for the first comparator in the LM393DR2GH, where the reference voltage is typically applied.

3. Pin 3 (Non-Inverting Input of Comparator A - LM393DR2GH): Used for the non-inverting input of the first comparator, this pin in the LM393DR2GH is where the input voltage to be compared is applied.

4. Pin 4 (Ground or Negative Power Supply - LM393DR2GH): The LM393DR2GH uses this pin for grounding or connecting to the negative side of the power supply, crucial for the stability of the comparator.

5. Pin 5 (Non-Inverting Input of Comparator B - LM393DR2GH): As the non-inverting input for the second comparator, this pin in the LM393DR2GH is used for applying the input voltage for the second comparison unit.

6. Pin 6 (Inverting Input of Comparator B - LM393DR2GH): This pin serves as the inverting input for the second comparator in the LM393DR2GH, where the reference voltage for the second comparator is typically applied.

7. Pin 7 (Output of Comparator B - LM393DR2GH): The output from the second comparator within the LM393DR2GH is obtained from this pin.

8. Pin 8 (Positive Power Supply - LM393DR2GH): Essential for the operation of the LM393DR2GH, this pin connects to the positive power supply.

The LM393DR2GH is commonly used in electronic designs for applications such as voltage level detection, window comparators, and other voltage comparison-based systems. Ensuring accurate connection of each pin according to the circuit's specific requirements, and considering the IC's specifications like voltage range and operating conditions, is crucial. A thorough understanding of each pin's function in the LM393DR2GH is key to effectively utilizing this comparator in electronic projects.
