Texas Instruments LM339PWR

Part No.:: LM339PWR

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM339PWR.pdf

Description:: IC QUAD DIFF COMPARATOR 14-TSSOP

In Stock:: 2704

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM339PWR Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
4
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 30V, ±1V ~ 15V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM339PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM339PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM339PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM339PWR information

Views：

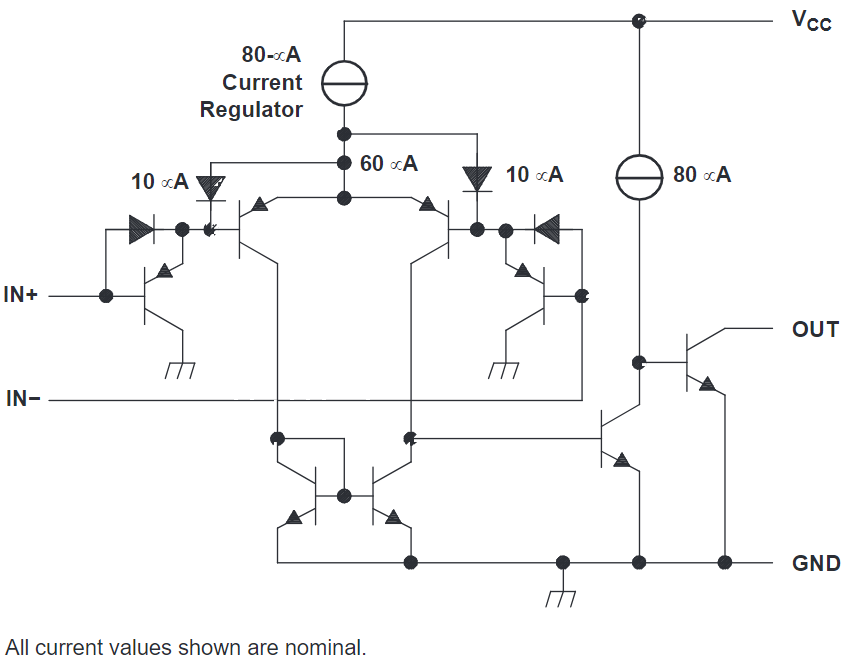

LM339PWR Typical application Circuitry

LM339PWR

The LM339PWR is a model in the LM339 series of integrated circuits, known for their functionality as quad differential comparators. These comparators are designed to compare voltages present at their input terminals and provide digital outputs based on these comparisons. The LM339 series, including the LM339PWR, is widely used in electronic applications that require accurate voltage comparison, such as sensor interfacing, voltage level detection, and control systems.

1. Pin Configuration: The LM339PWR typically comes in a TSSOP (Thin Shrink Small Outline Package) with 14 pins. It includes four comparator units, each having an inverting (IN-) and non-inverting (IN+) input, and individual outputs for each comparator. The package also has pins for VCC (positive power supply) and GND (ground).

2. Power Supply Connections: The positive power source is linked to the VCC pin, while the ground is connected to the GND pin. The LM339PWR can operate with both single and dual power supplies, and it's crucial to ensure that the supply voltage is within the IC's specified operational range.

3. Input Connections: There are inverting and non-inverting inputs on each comparator. The comparator outputs a digital signal based on the voltage comparison between these two inputs, indicating which input has a higher voltage.

4. Output Connections: The outputs of the LM339PWR are open-collector, meaning they require external pull-up resistors to provide a high output level. The output state changes based on the relative voltages at the inverting and non-inverting inputs.

5. Comparator Functionality: The LM339PWR is used for applications that need voltage level detection and comparison, such as digital logic systems where analog signals are converted into digital signals.

6. Circuit Protection: Including protective elements like current limiting resistors is advisable, particularly when interfacing the comparator outputs with other components in the circuit.

7. Layout Considerations: When designing a circuit with the LM339PWR, careful planning of the routing for inputs and outputs is important to minimize noise and interference, particularly in analog signal paths.

Designing with the LM339PWR involves meticulous attention to detail to ensure it functions effectively as a voltage comparator. The LM339PWR's ability to provide accurate voltage comparisons across multiple channels makes it a valuable component in various electronic applications, particularly where precision in voltage monitoring and control is required.
