National Semiconductor LM339N

Part No.:: LM339N

Manufacturer:: National Semiconductor

Package:: 14-DIP (0.300, 7.62mm)

Datasheet:: LM339N.pdf

Description:: LM339 QUAD DIFFERENTIAL COMPARAT

In Stock:: 2574

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM339N Specifications

Package/Case:
14-DIP (0.300, 7.62mm)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
4
OutputType:
Open-Collector, CMOS, DTL, ECL, MOS, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
10mV
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

LM339N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM339N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM339N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM339N information

Views：

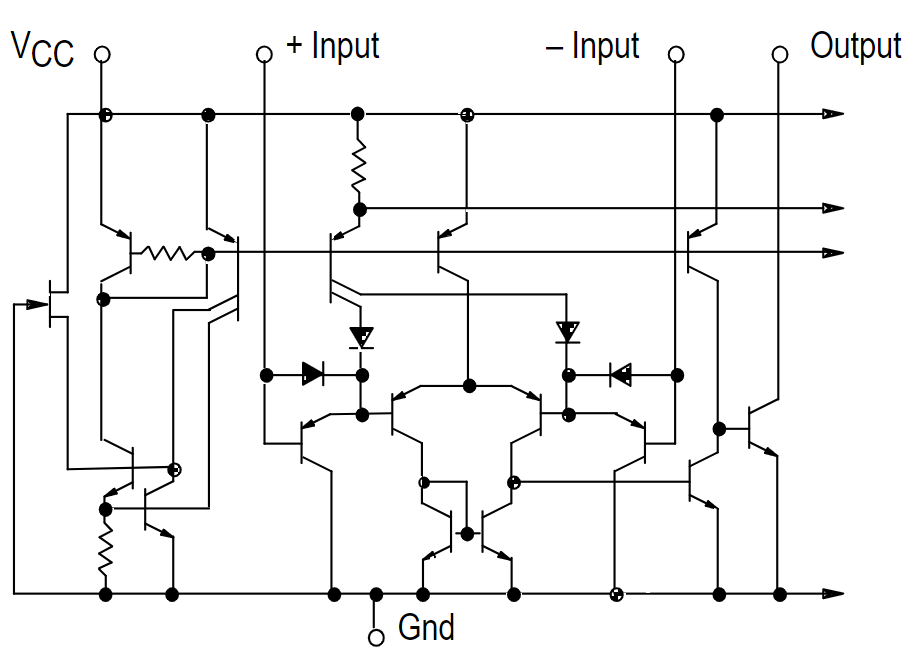

LM339N Typical application Circuitry

LM339N

The LM339N is part of the LM339 series of integrated circuits, which are well-recognized for their quad differential comparators. These devices are designed to compare the voltages presented at their input terminals and provide digital outputs based on these comparisons. The LM339 series, including the LM339N, is extensively used in various applications where accurate voltage comparison is crucial, such as in sensor interfacing, voltage level detection, and control systems.

1. Pin Configuration: The LM339N typically comes in a DIP (Dual In-line Package) with 14 pins. It features four independent comparator units, each with an inverting (IN-) and non-inverting (IN+) input, and individual outputs for each comparator. Additionally, there are pins for VCC (positive power supply) and GND (ground).

2. Power Supply Connections: The GND pin is linked to ground, and the VCC pin is connected to the positive power source. The LM339N can operate with both single and dual power supplies, and it's important to ensure that the supply voltage is within the IC's specified range.

3. Input Connections: There are inverting and non-inverting inputs on each comparator. A signal indicating which input has a greater voltage is produced by the comparators. These inputs are where the voltages to be compared are connected.

4. Output Connections: The outputs of the LM339N are open-collector, meaning they can sink current but cannot source it. Therefore, external pull-up resistors are typically connected to each output to pull the output high when the comparator is not sinking current.

5. Comparator Functionality: The LM339N is used in applications that require voltage level detection and comparison, such as in digital logic systems where analog signals need to be converted into digital signals.

6. Circuit Protection: Implementing protective elements like current limiting resistors is advisable, especially when the comparator outputs are interfaced with other components that might be sensitive to higher currents.

7. Layout Considerations: In designing a circuit with the LM339N, careful planning of the routing of inputs and outputs is essential to minimize noise and interference, particularly in analog signal paths.

Designing with the LM339N involves meticulous attention to these details to ensure it functions effectively as a voltage comparator. The LM339N's capability to provide accurate voltage comparisons across multiple channels makes it a valuable component in various electronic applications, especially where precision in voltage monitoring and control is required.
