Name: LM339DTBR2
Brand: ON Semiconductor
SKU: LM339DTBR2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor LM339DTBR2

Part No.:: LM339DTBR2

Manufacturer:: ON Semiconductor

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM339DTBR2.pdf

Description:: IC COMPARATOR QUAD SGL 14-TSSOP

In Stock:: 2112

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM339DTBR2 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
General Purpose
NumberofElements:
4
OutputType:
CMOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
3V ~ 36V, ±1.5V ~ 18V
Voltage-InputOffset(Max):
5mV @ 5V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM339DTBR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM339DTBR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM339DTBR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM339DTBR2 information

Views：

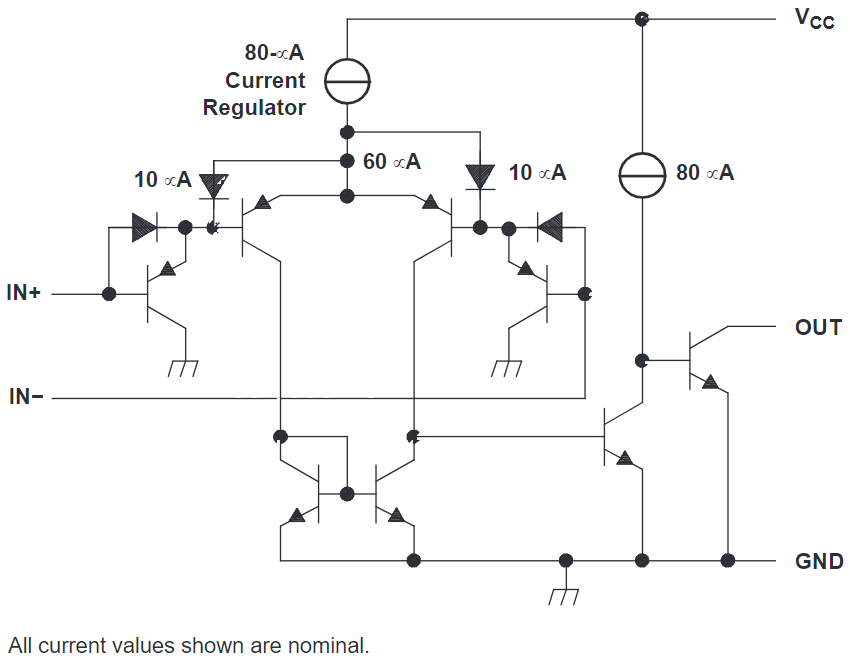

LM339DTBR2 Typical application Circuitry

LM339DTBR2

The LM339DTBR2 is part of the LM339 series of integrated circuits, renowned for their quad differential comparators. These devices are specifically designed for voltage comparison tasks across multiple channels, providing digital outputs that reflect these comparisons. The LM339 series, including the LM339DTBR2, is widely employed in electronic applications requiring precise voltage comparison, such as sensor interfacing, voltage level detection, and control systems.

1. Pin Configuration: A TSSOP (Thin Shrink Small Outline Package) containing 14 pins is standard packaging for the LM339DTBR2. This includes four comparator units, each with an inverting (IN-) and non-inverting (IN+) input, and individual outputs. Additionally, the package includes pins for VCC (positive power supply) and GND (ground).

2. Power Supply Connections: The VCC pin is connected to the positive power supply, while the GND pin is connected to the ground. The LM339DTBR2 can operate with both single and dual power supplies, and it's crucial to ensure that the supply voltage is within the IC's specified range.

3. Input Connections: There are inverting and non-inverting inputs on each comparator. The comparator outputs a digital signal based on the voltage comparison between these two inputs, indicating which input has a higher voltage.

4. Output Connections: The outputs of the LM339DTBR2 are open-collector, meaning they require external pull-up resistors to provide a high output level. The output state of each comparator changes depending on the relative voltages at the inverting and non-inverting inputs.

5. Comparator Functionality: The LM339DTBR2 is used in applications that require voltage level detection and comparison. Each comparator's output switches states based on the relative voltages at its inputs, making it suitable for digital logic decisions based on analog signals.

6. Circuit Protection: Implementing protective elements like current limiting resistors is advisable, particularly when the outputs are interfaced with other circuit components that may be sensitive to higher currents.

7. Layout Considerations: When designing a circuit with the LM339DTBR2, careful planning of the routing of inputs and outputs is essential to minimize noise and interference, especially in analog signal paths.

Designing with the LM339DTBR2 involves meticulous attention to these details to ensure efficient and reliable operation as a voltage comparator. The LM339DTBR2's ability to provide accurate voltage comparisons across multiple channels makes it a valuable component in various electronic applications, particularly where precision in voltage monitoring and control is required.
