Texas Instruments LM339DRG3

Part No.:: LM339DRG3

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM339DRG3.pdf

Description:: IC COMPARATOR DIFF QUAD 14SOIC

In Stock:: 2634

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM339DRG3 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
4
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 30V, ±1V ~ 15V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM339DRG3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM339DRG3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM339DRG3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM339DRG3 information

Views：

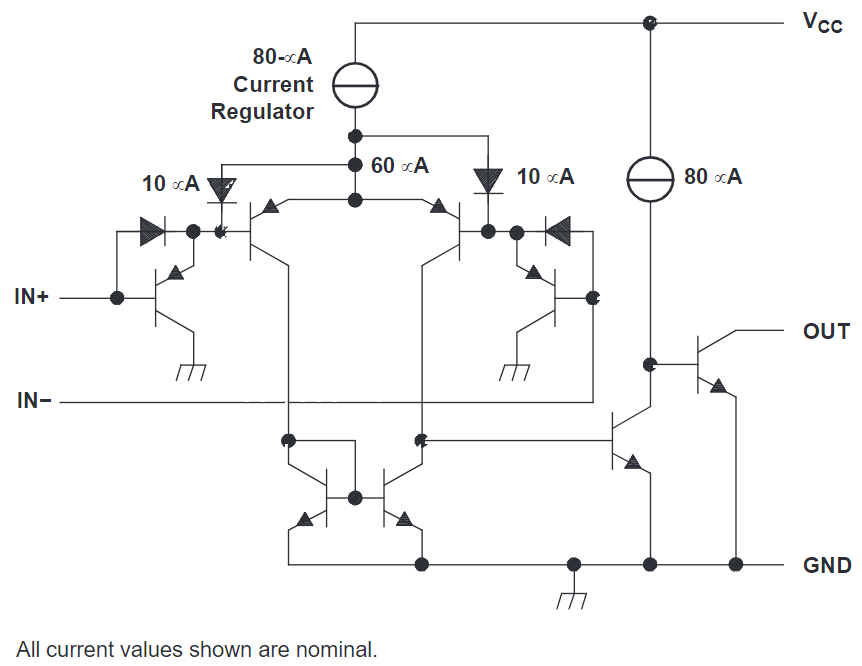

LM339DRG3 Typical application Circuitry

LM339DRG3

The LM339DRG3 is part of the LM339 series of integrated circuits, known for their functionality as quad differential comparators. These comparators are designed to provide digital output signals based on the comparison of two input voltages. The LM339 series, including the LM339DRG3, finds extensive application in electronic circuits where precise voltage comparison is essential, such as in sensor interfacing, voltage level detection, and control systems.

1. Pin Configuration: The LM339DRG3 typically comes in a SOIC (Small Outline Integrated Circuit) package with 14 pins. This includes four comparator units, each with an inverting (IN-) and non-inverting (IN+) input, and individual outputs. Additionally, there are pins for VCC (positive power supply) and GND (ground).

2. Power Supply Connections: The GND pin is linked to ground, and the VCC pin is connected to the positive power source. The LM339DRG3 can operate with both single and dual power supplies, and it's important to ensure that the supply voltage is within the IC's specified range.

3. Input Connections: Every comparator features both non-inverting and inverting inputs. The comparator outputs a signal indicating which input is higher. These inputs are where the voltages to be compared are connected.

4. Output Connections: The outputs of the LM339DRG3 are open-collector, meaning they require external pull-up resistors to provide a high output level. The output of each comparator changes state depending on the comparison result of the voltages at its inputs.

5. Comparator Functionality: The LM339DRG3 is utilized in applications that require voltage level detection and comparison. Each comparator's output will switch between high and low states based on the relative voltages at its inverting and non-inverting inputs.

6. Circuit Protection: It's advisable to include protection mechanisms, such as current limiting resistors, especially when interfacing with components sensitive to higher currents.

7. Layout Considerations: When designing a circuit with the LM339DRG3, it's important to consider the routing of inputs and outputs to minimize noise and interference, particularly in analog signal paths.

Designing with the LM339DRG3 involves careful planning and precise implementation of each pin connection to ensure efficient and reliable comparator operation. The LM339DRG3's ability to provide accurate voltage comparisons across multiple channels makes it a valuable component in various electronic applications, especially in systems where digital decision-making is based on analog signals.
