LM317MDT-001-ON information

Views：

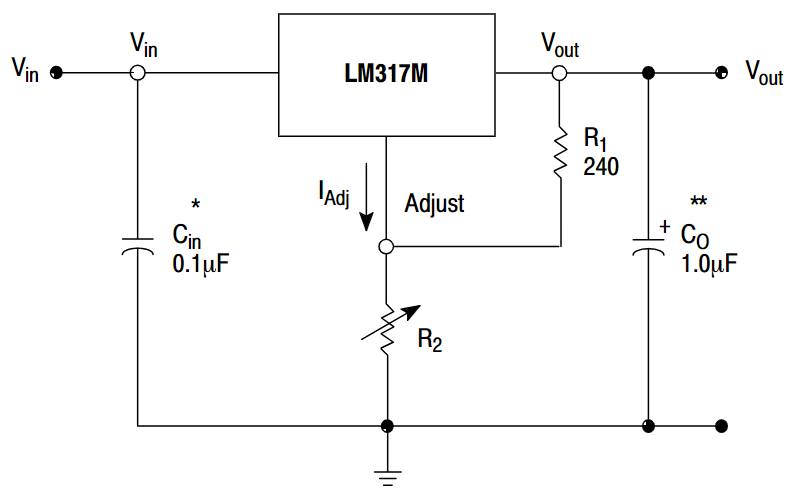

LM317MDT-001-ON Typical application Circuitry

LM317MDT-001-ON

The LM317MDT-001-ON is part of the LM317 series, a line of adjustable three-terminal positive voltage regulators. This series, developed by ON Semiconductor, is designed to provide an adjustable output voltage that can be set using just two external resistors. The LM317MDT-001-ON is known for its versatility, allowing for a wide range of output voltages while maintaining a constant current over the load range. Power sources, battery chargers, and motor control circuits are just a few of the numerous applications that heavily rely on it.

1. Adjust (Pin 1): This pin is used to set the output voltage. Connect a resistor (R1) from this pin to the output and another resistor (R2) from this pin to ground. The output voltage is set based on the values of these resistors using the formula: Vout = 1.25V (1 + R2/R1) + Iadj R2.

2. Output (Pin 2): The regulated output voltage is obtained from this pin. Connect this pin to the load that requires the regulated voltage.

3. Input (Pin 3): Connect this pin to the input voltage source. The input voltage should be higher than the desired output voltage by at least the dropout voltage of the regulator but should not exceed the maximum input voltage rating.

4. Key Features of the LM317MDT-001-ON:

- Adjustable Output Voltage: The LM317MDT-001-ON offers a flexible output voltage range, which can be adjusted using external resistors.

- Wide Range of Input Voltages: It can handle a broad spectrum of input voltages, making it suitable for various applications.

- Thermal Overload Protection: The device includes built-in protection against excessive temperature, enhancing its reliability.

- Output Current Capability: It is capable of delivering 1.5 A of load current, making it suitable for a range of applications.

When designing a circuit with the LM317MDT-001-ON, it is important to consider the datasheet specifications, particularly concerning the voltage range and current limits. Choose suitable resistors for R1 and R2 in order to get the intended output voltage. Additionally, ensure that the input voltage is always higher than the output voltage by the dropout voltage. For applications requiring significant load current, adequate heat sinking may be necessary to manage thermal dissipation.

In summary, the LM317MDT-001-ON is an efficient and flexible voltage regulator, ideal for a wide variety of adjustable power supply applications. Its ability to provide a regulated output voltage with a simple external resistor setup makes it a popular choice in electronic circuit designs.
