Texas Instruments LM293DRE4

Part No.:: LM293DRE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM293DRE4.pdf

Description:: IC COMPARATOR DIFF DUAL 8SOIC

In Stock:: 2068

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293DRE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM293DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293DRE4 information

Views：

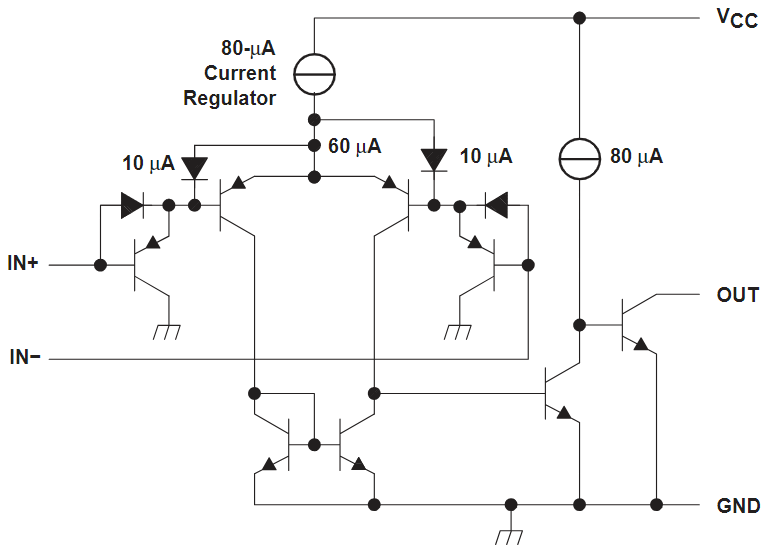

LM293DRE4 Typical application Circuitry

LM293DRE4

The LM293DRE4 is a model from the LM293 series of integrated circuits, specifically known for its dual differential comparators. This series, developed by Texas Instruments, is integral in electronics where the primary task is to compare two voltage levels or signals to ascertain which one is higher. The LM293DRE4 is particularly versatile, capable of operating across a broad range of voltages and suitable for both single and dual power supply configurations.

1. Inverting Input of Comparator 1 (Pin 1): For the first comparator in the LM293DRE4, this pin is used as the inverting input. The voltage at this point is compared with that at the non-inverting input (Pin 2).

2. Non-Inverting Input of Comparator 1 (Pin 2): This pin functions as the non-inverting input for the first comparator, where the voltage is compared against the inverting input (Pin 1).

3. Output of Comparator 1 (Pin 3): The outcome of the comparison from the first comparator is available at this pin. A high output is produced when there is a greater voltage at the non-inverting input (Pin 2) than at the inverting input (Pin 1).

4. VCC (Pin 4): This pin connects to the positive supply voltage. The LM293DRE4's ability to function with varying supply voltages makes it adaptable for diverse circuit designs.

5. Output of Comparator 2 (Pin 5): As the output for the second comparator, this pin reflects the comparison result. The output status depends on the voltage comparison between the non-inverting (Pin 6) and inverting inputs (Pin 7).

6. Non-Inverting Input of Comparator 2 (Pin 6): Serving as the non-inverting input for the second comparator, this pin's voltage is compared with the inverting input (Pin 7).

7. Inverting Input of Comparator 2 (Pin 7): This pin is the inverting input for the second comparator. It's where the voltage is compared with the non-inverting input (Pin 6).

8. Ground (Pin 8): In single-supply operations, this pin is connected to ground. In dual-supply operations, it connects to the negative supply voltage.

9. Characteristics of the LM293DRE4:

- Wide Voltage Range: The LM293DRE4 is compatible with a variety of supply voltages, enhancing its flexibility in different electronic environments.

- Dual Comparator Configuration: Featuring two comparators in one package, it allows for efficient and compact circuit designs.

- Single or Dual Power Supply Functionality: This component can operate with either a single or a dual power supply, adding to its versatility in different applications.

When designing circuits with the LM293DRE4, adherence to the datasheet specifications, especially regarding voltage ranges and output current capabilities, is crucial. Including pull-up or pull-down resistors on the output pins is often necessary, based on the specific requirements of the application. Additionally, ensuring the input voltages do not exceed the supply voltage is important to prevent potential damage to the IC.

Overall, the LM293DRE4 is a robust and flexible choice for applications requiring voltage comparison, with its dual comparator design and adaptable power supply options making it a valuable asset in various electronic projects.
