STMicroelectronics LM293ADT

Part No.:: LM293ADT

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM293ADT.pdf

Description:: IC COMP DUAL LP BIPO 8SOIC

In Stock:: 7184

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293ADT Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
2mV @ 30V
Current-InputBias(Max):
0.1µA @ 5V
Current-Output(Typ):
18mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM293ADT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293ADT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293ADT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293ADT information

Views：

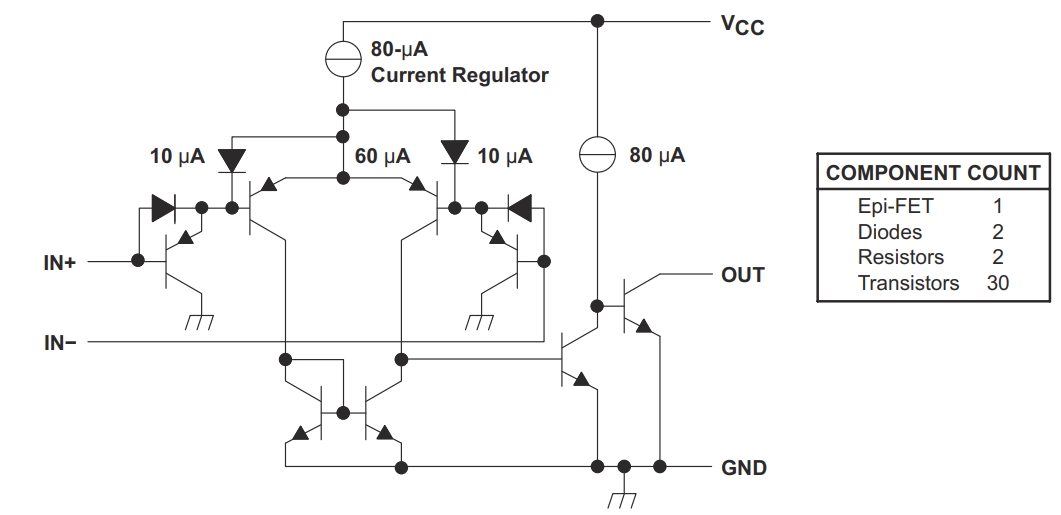

LM293ADT Typical application Circuitry

LM293ADT

The LM293ADT is a dual voltage comparator integrated circuit, commonly used for comparing two input voltage levels and providing a digital output indicating which is higher.

Application Scenarios: The LM293ADT is widely used in sensor interfacing, signal conditioning, battery chargers, and other electronic circuits where voltage comparison is required.

Key Features: It operates over a wide voltage range, has a low input bias current, and a low input offset voltage. The LM293ADT can work with both single and dual power supplies.

Circuit Design Example – Battery Level Indicator:

1. Power Supply Connection: Attach pin 8 (VCC) of the LM293ADT to a power source, such as 5V. This is the comparator's positive supply voltage.

2. Grounding: Attach the LM293ADT's pin 4 (GND) to the ground of the circuit. As a result, the comparator has a shared reference point.

3. Reference Voltage Setup: Connect a reference voltage (e.g., 3V) to pin 5 (IN1-), the inverting input of the first comparator. This voltage will be used as a threshold for comparison.

4. Battery Voltage Input: Connect the positive terminal of the battery to be monitored to pin 6 (IN1+), the non-inverting input of the first comparator.

5. Output Connection: The comparison result is provided by Pin 1 (OUT1) of the LM293ADT. Use this pin to connect an LED or an input from a microcontroller to show whether the battery voltage is higher or lower than the reference value.

6. Feedback Network for Hysteresis: To add hysteresis and prevent oscillations, a resistor feedback network can be added between pin 1 (OUT1) and pin 6 (IN1+).

7. Optional Second Comparator: The LM293ADT contains a second comparator that can be used for an additional voltage comparison, with pins 2, 3, and 7 serving as the output, inverting input, and non-inverting input, respectively.

Design considerations: Take into account the input signal levels, hysteresis requirement, power supply voltage, and reference voltage accuracy while designing with the LM293ADT. For correct operation, it's also critical to make sure the input voltages stay within the designated range.

In summary, the LM293ADT is essential in applications like battery level indicators, where voltage comparison is crucial. Implementing this circuit involves careful planning regarding power supply, reference voltage, input connections, and output interfacing for effective and reliable operation.
