Texas Instruments LM293ADR

Part No.:: LM293ADR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM293ADR.pdf

Description:: IC DUAL GP DIFF COMPARATR 8SOIC

In Stock:: 2894

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293ADR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
2mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM293ADR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293ADR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293ADR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293ADR information

Views：

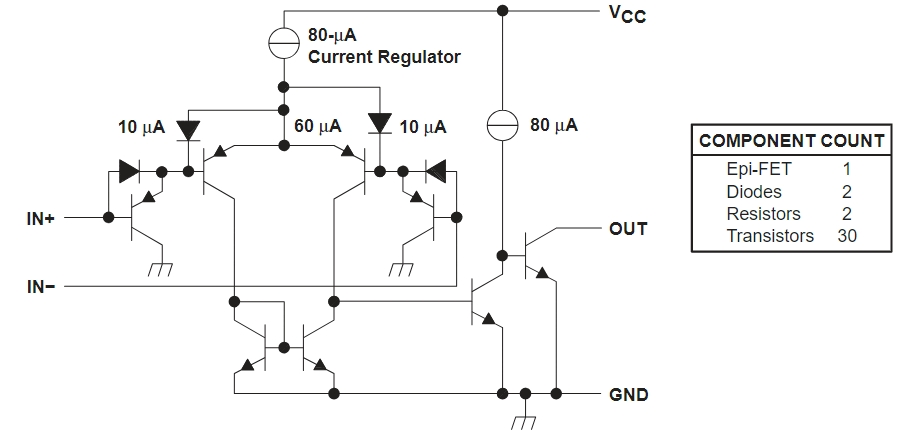

LM293ADR Typical application Circuitry

LM293ADR

A dual voltage comparator device for precise voltage comparison applications is the LM293ADR. It is commonly used in various electronic circuits for comparing two voltages and providing a digital output to indicate which voltage is higher.

Applications: The LM293ADR is versatile and can be used in a variety of scenarios, including battery voltage monitoring, window comparators, level shifting, and analog-to-digital converters.

Parameters: This LM293ADR chip typically operates within a wide supply voltage range of 2V to 36V, with a low input offset voltage of 2mV and a low supply current of 0.8mA. In addition, its quick reaction time makes it appropriate for high-speed uses.

Circuit Design for a Voltage Level Detector:

1. Supply Voltage: Connect the positive supply voltage (Vcc) to pin 8 and the ground to pin 4 of the LM293ADR. For this application, a supply voltage of 5V is suitable.

2. Reference Voltage: Set a reference voltage using a voltage divider circuit. Connect a 10kΩ resistor from Vcc to pin 6 (non-inverting input of the first comparator) and another 10kΩ resistor from pin 6 to ground. This creates a reference voltage of 2.5V at pin 6.

3. Input Voltage: Connect the voltage to be detected to pin 5 (inverting input of the first comparator).

4. Output: The output of the comparator is available at pin 7. Connect a 1kΩ pull-up resistor from pin 7 to Vcc. The output will be high (close to Vcc) when the input voltage is less than the reference voltage, and low (close to ground) when the input voltage is higher than the reference voltage.

5. LED Indicator: To visually indicate the output status, connect an LED in series with a 220Ω current-limiting resistor from pin 7 to ground. The LED will light up when the input voltage is higher than the reference voltage.

Design Considerations:

- Hysteresis: To prevent false triggering due to noise, add hysteresis by connecting a feedback resistor between the output (pin 7) and the non-inverting input (pin 6).

- Power Supply Decoupling: Place a 0.1µF ceramic capacitor close to the power supply pins (pin 8 and pin 4) to filter out any noise on the supply line.

- Input Protection: If the input voltage can exceed the supply voltage, use clamping diodes or voltage dividers to protect the input pins.

By adhering to these guidelines and incorporating the LM293ADR chip into your circuit design, you can create a reliable and efficient voltage level detector suitable for a variety of applications.
