What is the Additional Feature ?

Name: LM293ADGKRG4
Brand: Texas Instruments
SKU: LM293ADGKRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM293ADGKRG4

Part No.:: LM293ADGKRG4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LM293ADGKRG4.pdf

Description:: IC DUAL GP DIFF COMPARATR 8VSSOP

In Stock:: 2108

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293ADGKRG4 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Last Time Buy
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
2mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM293ADGKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293ADGKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293ADGKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293ADGKRG4 information

Views：

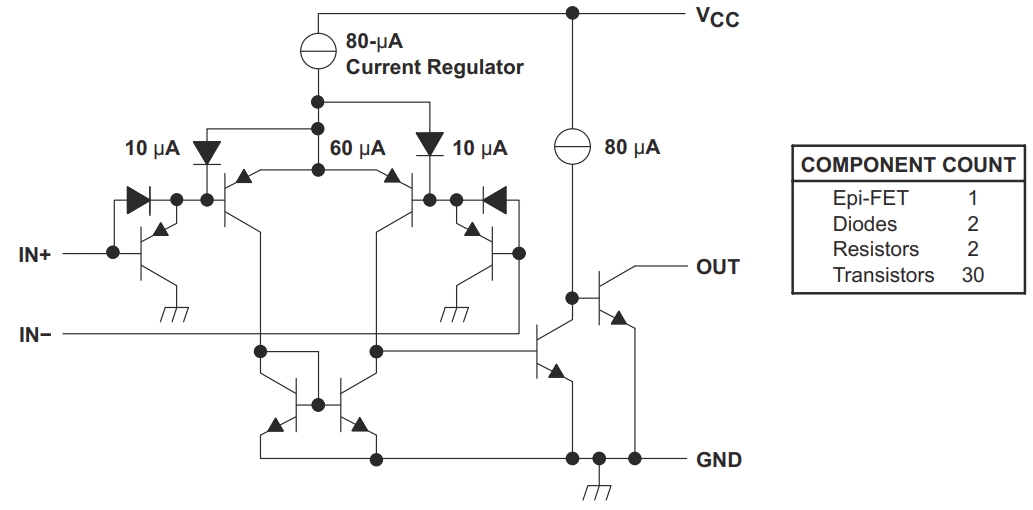

LM293ADGKRG4 Typical application Circuitry

LM293ADGKRG4

The LM293ADGKRG4 is a dual differential comparator chip, similar to the LM293AD, designed for comparing two input voltage levels and providing a digital output indicating the comparison result. Applications needing threshold-based decision-making or accurate voltage level detection frequently use it.

Key Applications

1. Overcurrent Protection: Used in power supply circuits to detect and respond to overcurrent conditions.

2. Voltage Level Detection: Employed in systems that require monitoring and detection of specific voltage levels.

3. Pulse Width Modulation (PWM): Applied in generating PWM signals for motor control or dimming applications.

Notable Parameters

- Supply Voltage Range: Compatible with a wide range of supply voltages, suitable for various applications.

- Input Offset Voltage: Low input offset voltage is included to ensure precise comparisons.

- Propagation Delay: Provides a rapid propagation delay in order to enable prompt reaction in dynamic systems.

Overcurrent Protection Circuit Design

1. Power Supply Connection: Attach the power supply's positive terminal to pin 8 of the LM293ADGKRG4 and its negative terminal to pin 4 of the GND pin.

2. Current Sensing Resistor: To sense the current, connect a low-value resistor (Rsen) in series with the load. The relationship between the voltage across Rsen and the load's current is proportional.

3. Reference Voltage: Set a reference voltage (Vref) corresponding to the maximum allowable current and connect it to the inverting input (pin 6) of the first comparator.

4. Sensing Voltage Input: Connect the voltage across Rsen to the non-inverting input (pin 5) of the first comparator.

5. Output Connection: Connect the LM293ADGKRG4 output (pin 7) of the first comparator to a control circuit or a microcontroller to take appropriate action when an overcurrent condition is detected.

6. Decoupling Capacitor: Attach a capacitor (Cdec) between the Vcc pin and GND to stabilize the power supply.

Considerations for Design

- Power Supply Stability: To ensure proper operation of the LM293ADGKRG4, make sure the supply voltage is within the designated range.

- Current Sensing Accuracy: Choose Rsen with a precise resistance value and low-temperature coefficient for accurate current sensing.

- Reference Voltage Precision: Use a stable and precise reference voltage source to accurately set the overcurrent threshold.

- Response Time: Consider the propagation delay of the comparator to ensure a timely response to overcurrent conditions.

By adhering to these design guidelines, the LM293ADGKRG4 can be effectively utilized in an overcurrent protection circuit, providing reliable and fast detection of overcurrent conditions to safeguard the system.
