Name: LM293ADGKR
Brand: Texas Instruments
SKU: LM293ADGKR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM293ADGKR

Part No.:: LM293ADGKR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LM293ADGKR.pdf

Description:: IC DIFF COMPARATOR DUAL 8VSSOP

In Stock:: 3041

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293ADGKR Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
2mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM293ADGKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293ADGKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293ADGKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293ADGKR information

Views：

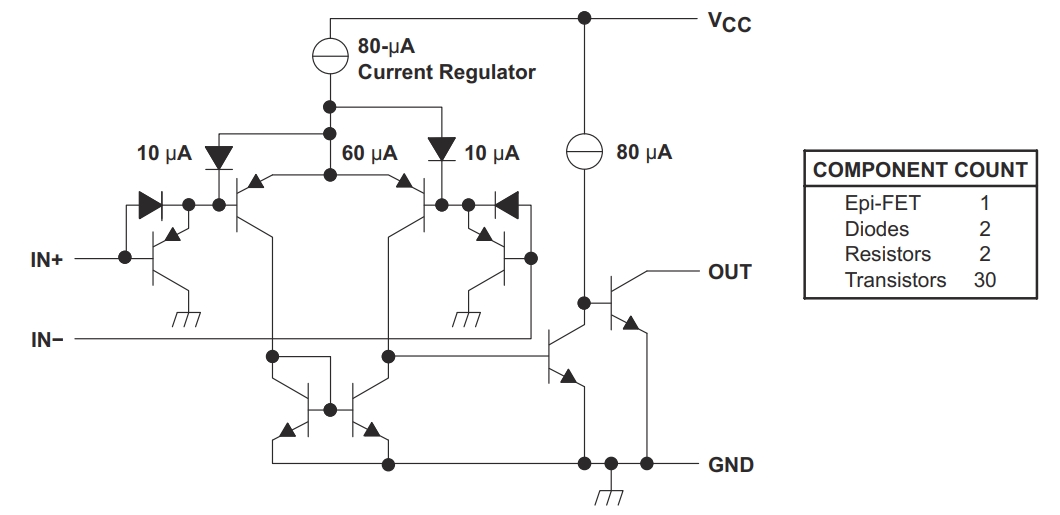

LM293ADGKR Typical application Circuitry

LM293ADGKR

The LM293ADGKR is a dual differential comparator chip, designed for comparing two input voltage levels and providing a digital output indicating the comparison result.It's commonly employed in applications where threshold-based decision-making or accurate voltage level sensing are required.

Key Applications

1. Window Comparator: Used in circuits that detect when a voltage falls within a specified range.

2. Zero-Crossing Detector: Used in AC signal processing to identify the signal's zero voltage crossing point.

3. Motor Control: Utilized in circuits for motor control to regulate direction and speed in response to voltage thresholds.

Notable Specifications

- Supply Voltage Range: Adaptable to a broad spectrum of supply voltages, ideal for a multitude of uses.

- Input Offset Voltage: Low input offset voltage is included to ensure precise comparisons.

- Propagation Delay: Provides a rapid propagation delay in order to enable prompt reaction in dynamic systems.

Design of a Window Comparator Circuit

1. Power Supply Connection: Attach the LM293ADGKR power supply's positive terminal to pin 8 of the LM293ADGKR, and its negative terminal to pin 4 of the GND pin.

2. Upper Threshold Voltage: Using a voltage divider or reference source, set an upper threshold voltage (Vupper) and link it to the first comparator's non-inverting input (pin 5).

3. Lower Threshold Voltage: Set a lower threshold voltage (Vlower) using a voltage divider or a reference source, and connect it to the inverting input (pin 6) of the second comparator.

4. Input Voltage: Connect the voltage to be monitored (Vin) to the inverting input (pin 2) of the first comparator and the non-inverting input (pin 3) of the second comparator.

5. Output Connection: Connect the outputs of both comparators (pins 1 and 7) to a logic circuit or a microcontroller to determine if Vin is within the window defined by Vupper and Vlower.

6. Decoupling Capacitor: Place a capacitor (Cdec) between the Vcc pin and GND to stabilize the power supply.

Design Points

- Power Supply Stability: In order for the LM293ADGKR to operate properly, make sure the supply voltage is within the designated range.

- Threshold Voltage Accuracy: Use precise voltage dividers or reference sources to set the upper and lower threshold voltages accurately.

- Hysteresis: Hysteresis should be added to comparators in order to guard against spurious triggering brought on by noise or minute voltage variations.

- Logic Circuit: Design the logic circuit to correctly interpret the outputs of the comparators based on the application requirements.

By following these design guidelines, the LM293ADGKR can be effectively utilized in a window comparator circuit, providing reliable detection of whether a voltage is within a specified range.
