Texas Instruments LM293AD

Part No.:: LM293AD

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM293AD.pdf

Description:: IC DIFF COMPARATOR DUAL 8-SOIC

In Stock:: 1367

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM293AD Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
2mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM293AD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM293AD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM293AD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM293AD information

Views：

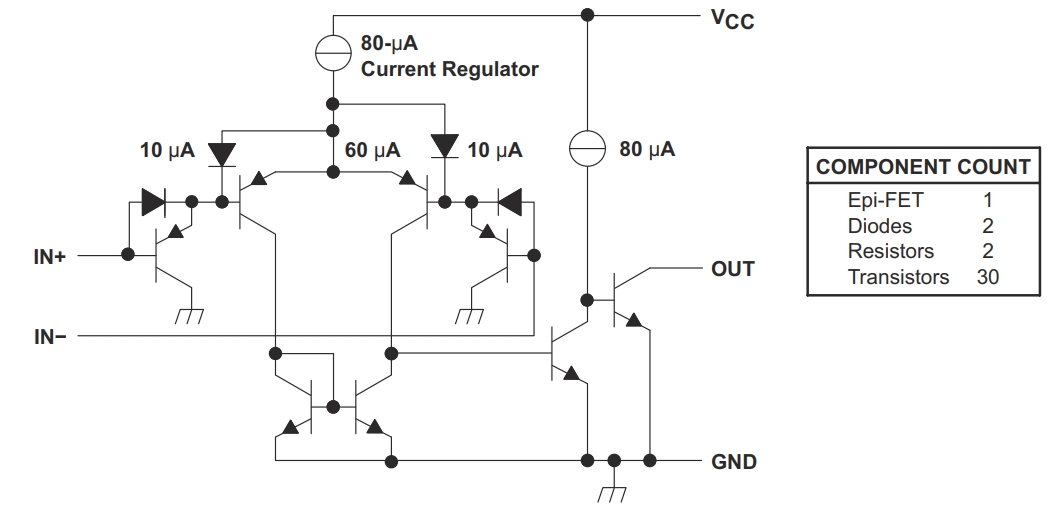

LM293AD Typical application Circuitry

LM293AD

The LM293AD is a dual voltage comparator chip, designed for comparing two input voltage levels and providing a digital output indicating which input is higher. It is commonly used in applications requiring voltage level detection or decision-making based on voltage thresholds.

Primary Uses

1. Battery Voltage Monitoring: This feature keeps track of a portable device's battery life.

2. Window Comparator: Used in circuits that establish if a voltage is inside a predetermined range.

3. Signal Conditioning: This technique compares signal levels in circuits to create control signals.

Notable Parameters

- Supply Voltage variety: This device can function with a broad variety of supply voltages, which makes it appropriate for a number of uses.

- Input Offset Voltage: To ensure precise comparisons, use a low input offset voltage.

- Response Time: Fast response time for quick decision-making in dynamic systems.

Battery Voltage Monitoring Circuit Design

1. Power Supply Connection : Attach the power supply's positive terminal to the LM293AD's Vcc pin (pin 8) and its negative terminal to the GND pin (pin 4).

2. Reference Voltage: Set a reference voltage (Vref) using a voltage divider or a reference source, and connect it to the inverting input (pin 6) of the first comparator.

3. Battery Voltage Input: Connect the positive terminal of the battery to the non-inverting input (pin 5) of the first comparator.

4. Output Connection: Connect the output (pin 7) of the first comparator to an LED or a microcontroller input for battery level indication.

5. Decoupling Capacitor: Place a capacitor (Cdec) between the Vcc pin and GND to stabilize the power supply.

Design Considerations

- Power Supply Stability: Ensure that the supply voltage remains within the specified range for stable operation of the LM293AD.

- Reference Voltage Accuracy: Select a precise reference voltage to accurately compare with the battery voltage.

- Hysteresis: Hysteresis should be added to the comparator to avoid spurious triggering as a result of noise or minute voltage variations.

- Output Load: Consider the load connected to the output and ensure it is within the driving capability of the LM293AD.

By following these design guidelines, the LM293AD can be effectively utilized in a battery voltage monitoring circuit, providing a reliable indication of the battery level in portable devices.
