ON Semiconductor LM2903DMR2G

Part No.:: LM2903DMR2G

Manufacturer:: ON Semiconductor

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LM2903DMR2G.pdf

Description:: IC COMP DUAL OFFSET LV 8-MICRO

In Stock:: 3921

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2903DMR2G Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM2903DMR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2903DMR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2903DMR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2903DMR2G information

Views：

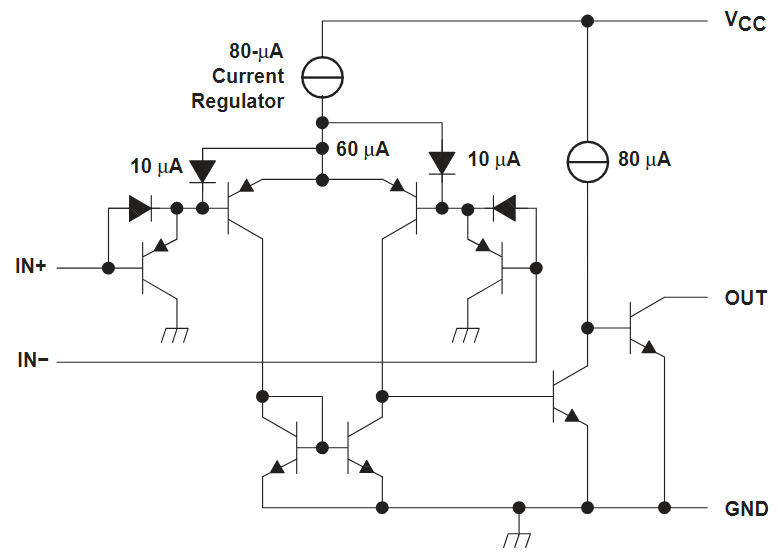

LM2903DMR2G Typical application Circuitry

LM2903DMR2G

The LM2903DMR2G belongs to the LM2903 series, renowned for its dual differential comparators. These devices are pivotal in electronic circuits for precise voltage comparison, recognized for their reliable performance across a range of operating conditions. The LM2903DMR2G, adhering to the series' characteristics, is designed for various applications that necessitate accurate voltage comparison.

1. Power Supply Connections: In its standard 8-pin package, the LM2903DMR2G requires pin 8 for the positive supply voltage (Vcc) and pin 4 for the ground (GND). These connections are essential whether the IC is operating on a single power source or a dual supply system.

2. Input Pins for Comparators: The LM2903DMR2G contains two comparators. Each comparator has an inverting input (pin 2 for the first comparator, pin 7 for the second) and a non-inverting input (pin 3 for the first comparator, pin 6 for the second). These inputs are where the voltages to be compared are connected.

3. Output Pin Configuration: The outputs of the comparators in the LM2903DMR2G are located at pin 1 for the first comparator and pin 5 for the second. These outputs can be connected to other circuit components or stages, depending on the requirements of the application.

4. Comparator Setup: In setting up the LM2903DMR2G, a reference voltage is applied to one input (either inverting or non-inverting) and the voltage to be compared is applied to the other input. The comparator compares these two voltages and modifies its output state accordingly.

5. Circuit Stability Enhancement: Using bypass capacitors, typically around 0.1 µF, near the power supply pins is recommended to reduce noise and improve the stability of the circuit.

6. Protective Measures for the IC: Implementing protective components like transient voltage suppressors is advisable to protect the LM2903DMR2G from electrical disturbances, particularly in environments prone to such issues.

Designing a circuit with the LM2903DMR2G requires careful attention to these details to ensure effective and reliable functionality. Its capability for precise voltage comparison and its adaptability in various conditions make the LM2903DMR2G a valuable component in a wide range of electronic applications. For precise and effective use, always consult the LM2903DMR2G's manufacturer datasheet, which provides comprehensive specifications and guidelines for connections.
