Texas Instruments LM2903DGKR

Part No.:: LM2903DGKR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LM2903DGKR.pdf

Description:: IC DUAL DIFF COMPARATOR 8VSSOP

In Stock:: 3154

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2903DGKR Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2903DGKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2903DGKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2903DGKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2903DGKR information

Views：

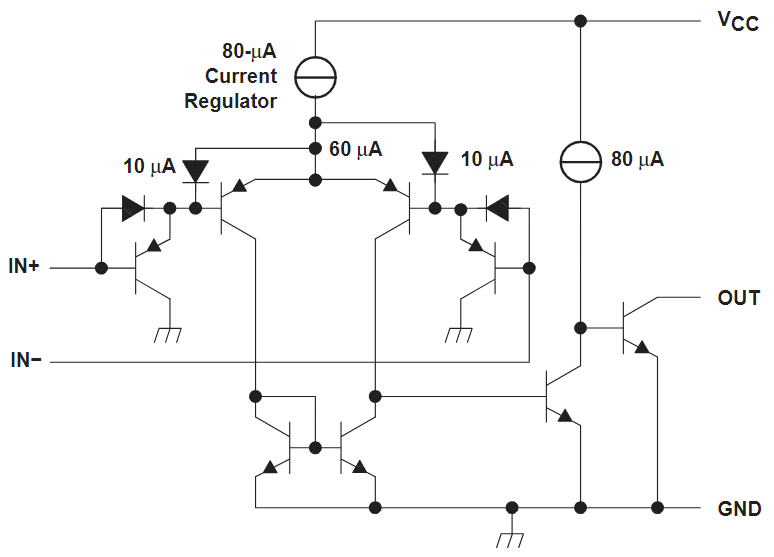

LM2903DGKR Typical application Circuitry

LM2903DGKR

The LM2903DGKR is a model in the LM2903 series, which is renowned for its dual differential comparators. These devices are integral to electronic circuits that require accurate voltage comparison, and they are noted for their consistent performance under various operating conditions. The LM2903DGKR, in line with this series, is designed for a wide array of applications where precise voltage comparison is essential.

1. Power Supply Setup: The LM2903DGKR typically comes in an 8-pin package. For powering the IC, pin 8 is used for connecting to the positive power supply (Vcc), and pin 4 is designated for the ground (GND). These connections are essential, whether the IC operates on a single power source or a dual supply system.

2. Input Pin Configuration for Comparators: The LM2903DGKR features two comparators. Each comparator has an inverting input (pin 2 for the first comparator, pin 7 for the second) and a non-inverting input (pin 3 for the first comparator, pin 6 for the second). These inputs are where the voltages to be compared are connected.

3. Comparator Output Connections: The outputs of the comparators in the LM2903DGKR are located at pin 1 for the first comparator and pin 5 for the second. These outputs can be connected to other components or to the next stage in the circuit, depending on the application.

4. Setting Up the Comparators: To configure the LM2903DGKR, a reference voltage is applied to one of the inputs (inverting or non-inverting) and the voltage to be compared is applied to the other input. The output of the comparator changes states based on the comparison between these two voltages.

5. Enhancing Circuit Stability: Implementing bypass capacitors, typically around 0.1 µF, near the power supply pins is advisable to reduce noise and enhance the stability of the circuit.

6. Protective Measures for the IC: Including protective components such as transient voltage suppressors is recommended to safeguard the LM2903DGKR from electrical disturbances, especially in environments where such issues might arise.

Incorporating the LM2903DGKR into a circuit requires careful consideration of these details to achieve optimal functionality. Its precision in voltage comparison and robustness across various conditions make the LM2903DGKR a valuable component in a diverse range of electronic applications. For accurate and effective usage, always refer to the LM2903DGKR's manufacturer datasheet, which offers comprehensive specifications and detailed guidelines for connections.
