ON Semiconductor LM2903DG

Part No.:: LM2903DG

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2903DG.pdf

Description:: IC COMP DUAL OFFSET LV 8SOIC

In Stock:: 3545

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2903DG Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM2903DG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2903DG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2903DG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2903DG information

Views：

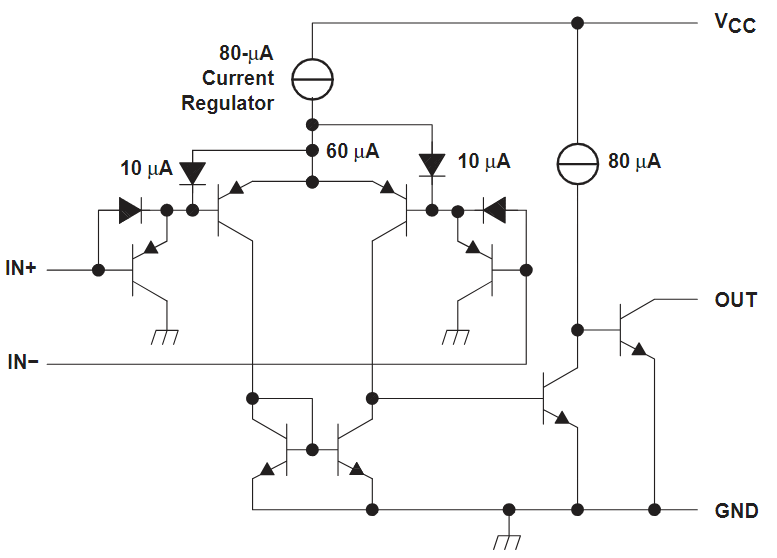

LM2903DG Typical application Circuitry

LM2903DG

The LM2903DG is a component of the LM2903 series, a set of dual differential comparators known for their functionality in voltage comparison tasks. This series is well-suited for a multitude of applications that require a reliable comparison of voltages, with the LM2903DG being no exception. It offers consistent performance in diverse electrical environments.

1. Power Connections: The LM2903DG is commonly presented in an 8-pin package. Pin 8 is allocated for the positive supply voltage (Vcc), and pin 4 is connected to the ground (GND). These connections are indispensable for the operation of the IC, compatible with both single and dual power supply modes.

2. Input Pins for Comparator Function: The LM2903DG features two comparators. Each comparator comprises an inverting input (pin 2 for the first comparator, pin 7 for the second) and a non-inverting input (pin 3 for the first comparator, pin 6 for the second). It is at these inputs that the comparison voltages are applied.

3. Comparator Outputs: The comparator outputs in the LM2903DG are found at pin 1 for the first comparator and pin 5 for the second. These outputs can interface with further circuit components as necessitated by the specific application.

4. Configuring the Comparators: In setting up the LM2903DG, one would typically apply a reference voltage to one of the inputs (inverting or non-inverting) and the variable voltage that is subject to comparison to the other input. The comparator outputs a signal based on the voltage differential between these two inputs.

5. Noise Reduction and Circuit Stability: To mitigate noise and enhance circuit stability, the integration of bypass capacitors near the power supply pins is recommended. Capacitors with a value in the vicinity of 0.1 µF are typically employed for this purpose.

6. Protecting the IC: The inclusion of protective elements, such as transient voltage suppressors, is advisable to protect the LM2903DG from sudden voltage spikes and other electrical anomalies, particularly in harsh electrical environments.

Integrating the LM2903DG into a circuit requires meticulous attention to these aspects to ensure efficient and dependable functionality. The LM2903DG's precision in voltage comparison and its resilience make it an integral component in a wide range of electronic applications. Consult the LM2903DG's manufacturer datasheet for precise and effective usage, which offers comprehensive specifications and detailed connection guidelines.
