STMicroelectronics LM2903D

Part No.:: LM2903D

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2903D.pdf

Description:: IC COMPARATOR DUAL LP 8-SOIC

In Stock:: 2300

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2903D Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
7mV @ 5V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
16mA @ 5V
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2903D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2903D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2903D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2903D information

Views：

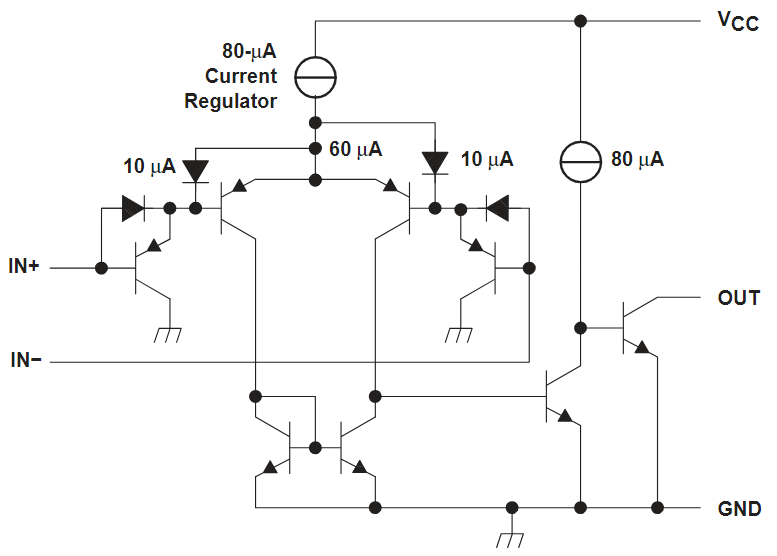

LM2903D Typical application Circuitry

LM2903D

The LM2903D is a model in the LM2903 series, which is characterized by dual differential comparators. These devices are widely used for voltage comparison purposes in various electronic circuits, known for their reliability over a broad range of operating conditions. The LM2903D, in particular, is tailored for applications where precise voltage comparison is essential.

1. Power Supply Considerations: The LM2903D typically comes in an 8-pin package. For powering the device, pin 8 is used for the positive supply voltage (Vcc), and pin 4 is connected to the ground (GND). This setup is crucial regardless of whether the IC is used in a single or dual supply mode.

2. Input Pin Arrangement for Comparators: The LM2903D houses two comparators. Each comparator has an inverting input (pin 2 for the first comparator, pin 7 for the second) and a non-inverting input (pin 3 for the first comparator, pin 6 for the second). These inputs are where the voltages to be compared are fed.

3. Output Connections: The outputs of the comparators in the LM2903D (pin 1 for the first comparator, pin 5 for the second) can be linked to subsequent stages in the circuit. These outputs are typically used to trigger other components in response to the voltage comparison results.

4. Comparator Configuration: To set up the comparators in the LM2903D, apply a reference voltage to one input (either inverting or non-inverting) and the voltage to be compared to the other input. The output state will change based on the comparison between these two voltages.

5. Enhancing Stability with Bypass Capacitors: It's recommended to place bypass capacitors close to the power supply pins to mitigate noise and enhance circuit stability. A common choice is a capacitor around 0.1 µF.

6. Protective Measures for the IC: In environments where the LM2903D might face electrical disturbances, implementing protective elements like transient voltage suppressors can be crucial for safeguarding the IC.

Integrating the LM2903D into a circuit demands an understanding of these aspects for effective and dependable operation. The LM2903D's capacity for accurate voltage comparison and its adaptability across various conditions make it a valuable component in diverse electronic applications. For precise and optimal usage, always consult the LM2903D's manufacturer datasheet, which provides detailed specifications and guidelines for connections.
