Texas Instruments LM2901PWR

Part No.:: LM2901PWR

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM2901PWR.pdf

Description:: IC QUAD DIFF COMPARATOR 14-TSSOP

In Stock:: 2855

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2901PWR Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Differential
NumberofElements:
4
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 30V, ±1V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2901PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2901PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2901PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2901PWR information

Views：

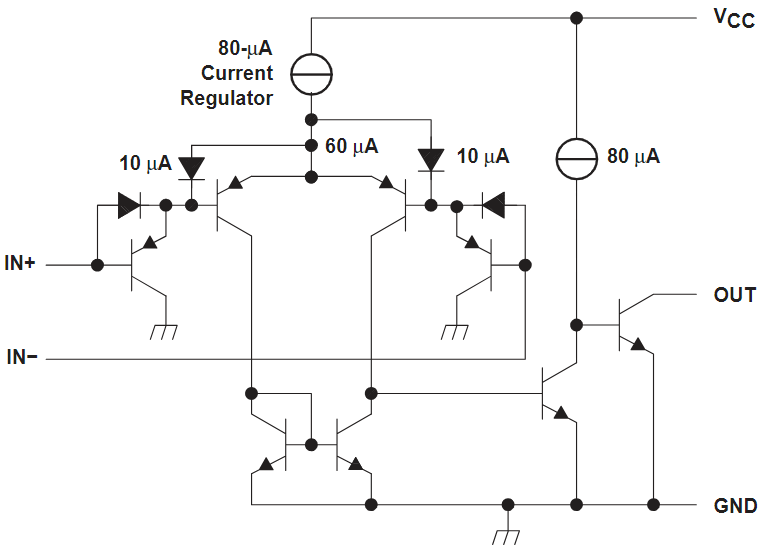

LM2901PWR Typical application Circuitry

LM2901PWR

The LM2901PWR is an integral component of the LM2901 series, which is known for its robust quad differential comparators. When many voltage comparisons are required, these devices are frequently utilized. The LM2901PWR is distinct for its ability to function with both a single or dual power supply, adding to its versatility in various electronic circuits.

1. Powering the LM2901PWR: It is designed to be connected to a power supply through its VCC+ and GND pins. This device can operate using a single power supply with a voltage range from 2V to 36V. Alternatively, it can be powered with a dual supply system, ranging from ±1V to ±18V.

2. Input Connections and Their Functionality: The LM2901PWR features four independent voltage comparators. Each comparator has an inverting input (−) and a non-inverting input (+). These inputs are crucial as they are where the voltages, which need to be compared, are connected.

3. Output Pin Arrangement: For each comparator within the LM2901PWR, there is a corresponding output pin. The design of these outputs is typically open-collector, necessitating the use of an external pull-up resistor to produce a high output state.

4. Detailed Pin Description: In its standard packaging, the LM2901PWR comes in a 14-pin configuration. Each pin plays a specific role, including pins for the power supply, ground, the inverting and non-inverting inputs for each comparator, and their respective output pins.

To sum up, the LM2901PWR from the LM2901 series is a widely used component in electronic circuit designs, favored for its flexibility in terms of power supply options and the wide range of operational voltages. Its applications extend across various fields, including but not limited to, use in analog to digital converters, in generating pulses and square waves, and in designing time delay circuits. Its adaptability and robustness make the LM2901PWR a valuable asset in the realm of electronic components.
