Name: LM2901DRG4
Brand: Texas Instruments
SKU: LM2901DRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM2901DRG4

Part No.:: LM2901DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2901DRG4.pdf

Description:: IC DIFF COMPARATOR QUAD 14-SOIC

In Stock:: 2766

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2901DRG4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
General Purpose
NumberofElements:
4
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 30V, ±1V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2901DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2901DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2901DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2901DRG4 information

Views：

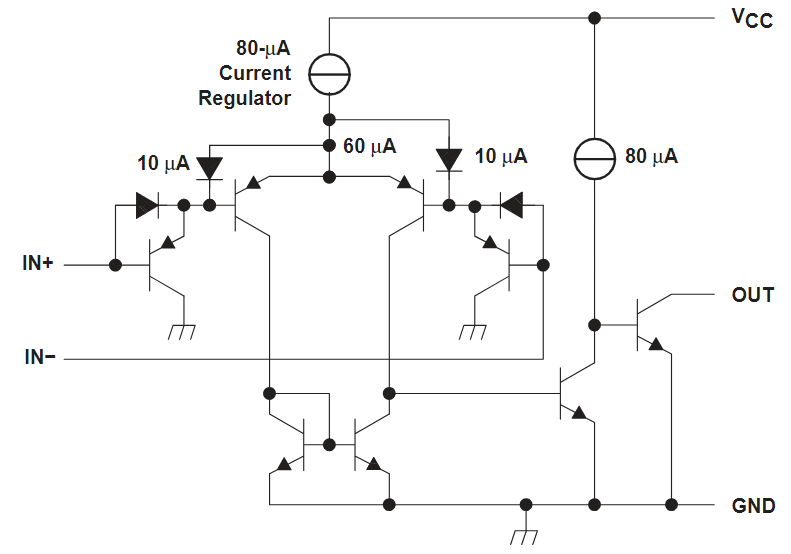

LM2901DRG4 Typical application Circuitry

LM2901DRG4

The LM2901DRG4 is part of Texas Instruments' LM2901 series, which comprises low-power quad differential comparators. These comparators are designed for applications where the ability to compare different voltage inputs is necessary, such as in control systems, and they are characterized by their wide supply voltage range and low supply current.

1. Pins 2, 3, 6, 7, 10, and 11 (Inverting Inputs): Each of these pins serves as the inverting input to one of the four comparators. You would connect the reference voltage or the voltage you want to compare against to these pins.

2. Pins 1, 5, 8, and 9 (Non-inverting Inputs): These pins are the non-inverting inputs for the comparators. The voltage you wish to compare will be connected here.

3. Pins 4 and 13 (GND/VCC-): Pin 4 is typically connected to the ground reference of the system. For single-supply operations, pin 13 is also connected to ground. In dual-supply applications, pin 13 would be connected to the negative voltage.

4. Pins 12 and 14 (VCC+/VCC): Pin 14 is linked to the voltage of the positive supply. In a single-supply operation, this would be your sole supply voltage. For dual-supply systems, pin 12 would be connected to the positive voltage.

5. Pins 1, 5, 8, and 9 (Output): These pins are the outputs for each of the four comparators. The output can be connected to the next stage in your circuit, which could be logic input, an LED for indication, or another part of a control system.

When using the LM2901DRG4, it's important to set up the inputs with the correct voltage levels that you wish to compare. You may also need to include pull-up resistors on the outputs, as the outputs of the LM2901 are open-collector. This means they need an external resistor to pull the output high when the comparator is not driving it low. The datasheet for the LM2901DRG4 will provide detailed information on the required voltage levels, hysteresis, biasing, and other design considerations. Additionally, decoupling capacitors close to the power supply pins are recommended to filter noise and stabilize the supply voltage. Following these guidelines will help ensure that the LM2901DRG4 operates effectively as a comparator in your electronic designs.
