Texas Instruments LM2901DRG3

Part No.:: LM2901DRG3

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2901DRG3.pdf

Description:: IC COMPARATOR DIFF QUAD 14SOIC

In Stock:: 2380

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2901DRG3 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
4
OutputType:
CMOS, MOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 30V, ±1V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2901DRG3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2901DRG3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2901DRG3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2901DRG3 information

Views：

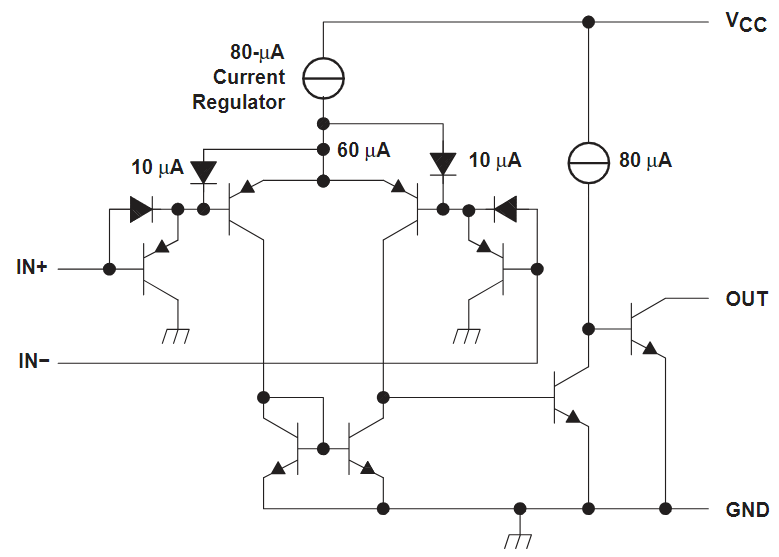

LM2901DRG3 Typical application Circuitry

LM2901DRG3

The LM2901DRG3 is a variant in the LM2901 series of quadruple operational amplifiers, well-regarded for their robustness in a range of voltage comparison tasks. These devices can function with either single or dual power supplies and are adept at operating across a wide range of voltages, suitable for an array of applications such as control systems and battery-powered devices.

1. Output Pins (Pins 1, 7, 8, and 14): Each corresponds to the output from the four internal comparators. These must be connected to the circuit where the comparison result is utilized.

2. Inverting Input Pins (Pins 2, 6, 9, and 13): These are where the input signals, which will be compared against the reference voltage, are applied.

3. Non-Inverting Input Pins (Pins 3, 5, 10, and 12): These pins receive the reference voltage against which the input signals on the inverting pins are compared.

4. Ground Pin (Pin 4) and Supply Voltage Pin (Pin 11): Pin 4 is connected to the system's ground, while Pin 11 is connected to the positive supply voltage, typically between 2V and 36V.

5. Considerations for Incorporation:

- The LM2901DRG3 should be powered within its specified voltage range to prevent damage to the device.

- The addition of decoupling capacitors near the power supply pins can be beneficial in reducing noise and stabilizing the comparators' performance.

- While interfacing with the outputs, it is crucial to consider the current sinking capability of the LM2901DRG3, which can be about 20 mA without the need for external pull-up components.

The inclusion of the LM2901DRG3 in circuitry demands not only a careful planning of power supply parameters but also an accurate connection of its pins to fully harness its voltage comparison capabilities. These comparators are well-suited for a multitude of applications, from simple voltage level detection to more complex analog-to-digital conversion systems.
