What is the Additional Feature ?

Name: LM2733XMF
Brand: National Semiconductor
SKU: LM2733XMF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

National Semiconductor LM2733XMF

Part No.:: LM2733XMF

Manufacturer:: National Semiconductor

Package:: SC-74A, SOT-753

Datasheet:: LM2733XMF.pdf

Description:: SWITCHING REG, CURRENT-MODE, 1.5

In Stock:: 287

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2733XMF Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
Function:
Step-Up
OutputConfiguration:
Positive
Topology:
Boost
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
2.7V
Voltage-Input(Max):
14V
Voltage-Output(Min/Fixed):
2.7V
Voltage-Output(Max):
40V (Switch)
Current-Output:
1A (Switch)
Frequency-Switching:
1.6MHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

LM2733XMF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2733XMF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2733XMF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2733XMF information

Views：

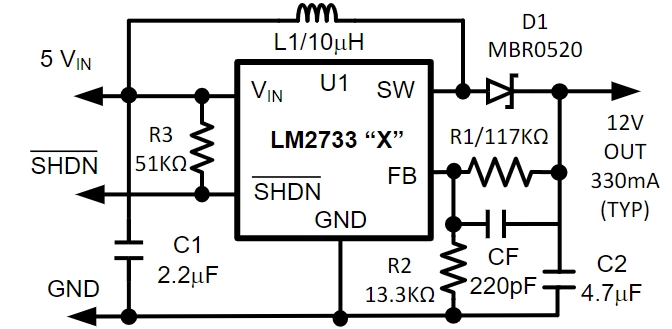

LM2733XMF Typical application Circuitry

LM2733XMF

The LM2733XMF is a high-frequency, step-up (boost) DC-DC switching regulator designed for efficient power conversion in various electronic applications.

Application Scenarios: The LM2733XMF is commonly used in portable devices, LED drivers, bias supplies, and any application requiring a compact, efficient boost converter.

Key Features: This regulator features a wide input voltage range, adjustable output voltage, high switching frequency (up to 3 MHz), and internal compensation, making it suitable for small form-factor designs.

Circuit Design Example – Portable Device Power Supply:

1. Power Supply Connection: Connect a battery or other power source (e.g., 2.7V to 5.5V) to pin 5 (VIN) of the LM2733XMF.

2. Grounding: Connect pin 2 (GND) of the LM2733XMF to the circuit's ground for stable operation.

3. Output Voltage Setup: Connect a feedback resistor divider network from the output (pin 4, SW) to pin 3 (FB) to set the desired output voltage. The output voltage is determined by the resistor values according to the formula: Vout = 0.8V * (1 + R1/R2), where 0.8V is the reference voltage.

4. Inductor Connection: Connect an inductor between pin 4 (SW) and the positive side of the output capacitor. Choose an inductor value based on the desired output current and switching frequency.

5. Output Capacitor: Connect an output capacitor between the output voltage node and ground to filter the output and provide stability.

6. Input Capacitor: Place a capacitor between pin 5 (VIN) and ground to stabilize the input voltage and reduce noise.

7. Bypass Capacitor for Stability: It's recommended to place a small bypass capacitor (e.g., 0.1μF) close to the IC between pin 5 (VIN) and pin 2 (GND) to ensure stability.

Design Considerations: When designing a circuit with the LM2733XMF, consider the input voltage range, desired output voltage, load current requirements, and component selection for the inductor and capacitors. Check to see if the components you have chosen can manage the necessary current levels and the high switching frequency.

In conclusion, where small, effective voltage boosting is needed, the LM2733XMF is critical to applications such as portable device power supply. The architecture of the feedback network, component selection, and input-output parameters must all be carefully considered before implementing this circuit to ensure optimal performance.
