Name: LM2576SX-3.3/NOPB
Brand: Texas Instruments
SKU: LM2576SX-3.3/NOPB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM2576SX-3.3/NOPB

Part No.:: LM2576SX-3.3/NOPB

Manufacturer:: Texas Instruments

Package:: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA

Datasheet:: LM2576SX-3.3/NOPB.pdf

Description:: IC REG BUCK 3.3V 3A TO263-5

In Stock:: 3994

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2576SX-3.3/NOPB Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SIMPLE SWITCHER®
ProductStatus:
Active
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Fixed
NumberofOutputs:
1
Voltage-Input(Min):
4V
Voltage-Input(Max):
40V
Voltage-Output(Min/Fixed):
3.3V
Voltage-Output(Max):
-
Current-Output:
3A
Frequency-Switching:
52kHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

LM2576SX-3.3/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2576SX-3.3/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2576SX-3.3/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2576SX-3.3/NOPB information

Views：

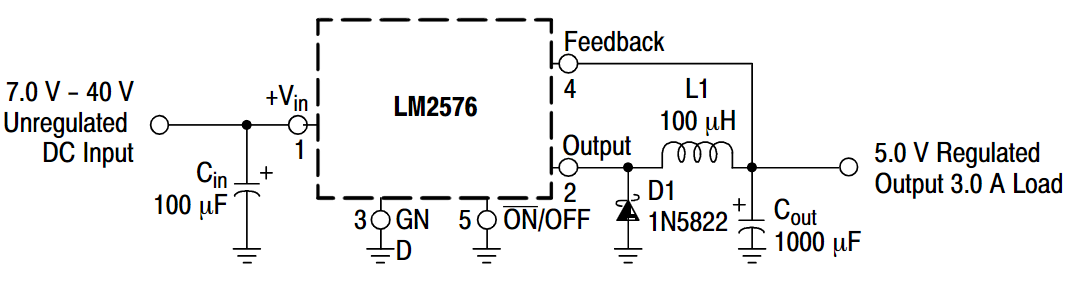

LM2576SX-3.3/NOPB Typical application Circuitry

LM2576SX-3.3/NOPB

The LM2576SX-3.3/NOPB is part of the LM2576 series of integrated circuits, which are monolithic integrated circuits designed as step-down (buck) voltage regulators. They have good line and load control and can drive a 3A load. These regulators are strong and dependable for a broad range of applications, and they are easy to use with features like an internal frequency correction and a fixed-frequency oscillator.

1. Pin Connections:

- Pin 1 (Vin): This is the input voltage pin for the LM2576SX-3.3/NOPB. Connect this pin to your source voltage, which should be higher than 3.3V and typically up to 40V.

- Pin 2 (Output): The output pin delivers the regulated 3.3V. Attach this pin to one end of an inductor (L) and your load.- Pin 3 (Ground): Attach this pin straight to your circuit's ground.

- Pin 4 (Feedback (FB)): Since the LM2576SX-3.3/NOPB is a fixed output version, this pin is typically not used as the feedback is internally set for 3.3V output.

- Pin 5 (On/Off): This enables or disables the regulator. Connect it to a logic high level to enable the LM2576SX-3.3/NOPB, or to logic low level to turn it off. If constant operation is needed, it can be tied directly to the Vin pin.

2. External Components:

- Inductor (L): Place an inductor between the output pin (Pin 2) and the load. The value of this inductor can typically range from 33 µH to 100 µH, with a current rating that exceeds the maximum load current.

- Diode (D): Connect a Schottky or fast-recovery diode from the output pin (Pin 2) to Vin (Pin 1), with the anode on the output side. This diode should be rated for at least the maximum output current and a reverse voltage at least as high as the maximum input voltage.

- Input Capacitor (Cin): A capacitor should be connected close to the Vin (Pin 1) and Ground (Pin 3) pins of the LM2576SX-3.3/NOPB. This capacitor should be a low ESR type and have a value of approximately 100 µF.

- Output Capacitor (Cout): Place a capacitor between the output pin (Pin 2) and ground to improve stability and transient response. The value can be around 1000 µF, also low ESR type.

3. Heatsinking:

- The LM2576SX-3.3/NOPB comes in a TO-263 package, which typically requires a heatsink if the output current is high or if the input-output voltage differential is large, in order to maintain thermal performance and prevent overheating.

When connecting the LM2576SX-3.3/NOPB, it's essential to follow good engineering practices such as keeping the input and output capacitors close to the device pins, using a ground plane for thermal dissipation, and minimizing the length of the paths connecting the inductor and diode to reduce EMI (Electromagnetic Interference).

Remember that the LM2576SX-3.3/NOPB is a robust component but it's still critical to consider all electrical parameters and thermal limits during the design to ensure reliable operation in your application.

LM2576SX-3.3/NOPB FAQ

1. How to order LM2576SX-3.3/NOPB on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LM2576SX-3.3/NOPB is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LM2576SX-3.3/NOPB. All suppliers must pass our qualification reviews before they can publish their products including LM2576SX-3.3/NOPB on icwhale.com; we pay more attention to the channels and quality of LM2576SX-3.3/NOPB products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LM2576SX-3.3/NOPB price and inventory displayed accurate?

The price and inventory of LM2576SX-3.3/NOPB fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LM2576SX-3.3/NOPB?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM2576SX-3.3/NOPB we delivered, we will accept the replacement or return of the LM2576SX-3.3/NOPB only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LM2576SX-3.3/NOPB.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
