Name: LM2576HVT-ADJ
Brand: Texas Instruments
SKU: LM2576HVT-ADJ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM2576HVT-ADJ

Part No.:: LM2576HVT-ADJ

Manufacturer:: Texas Instruments

Package:: TO-220-5

Datasheet:: LM2576HVT-ADJ.pdf

Description:: IC REG BUCK ADJ 3A TO220-5

In Stock:: 466

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2576HVT-ADJ Specifications

Packaging:
Tube
Series:
SIMPLE SWITCHER®
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
4V
Voltage-Input(Max):
60V
Voltage-Output(Min/Fixed):
1.23V
Voltage-Output(Max):
57V
Current-Output:
3A
Frequency-Switching:
52kHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Through Hole

LM2576HVT-ADJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2576HVT-ADJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2576HVT-ADJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2576HVT-ADJ information

Views：

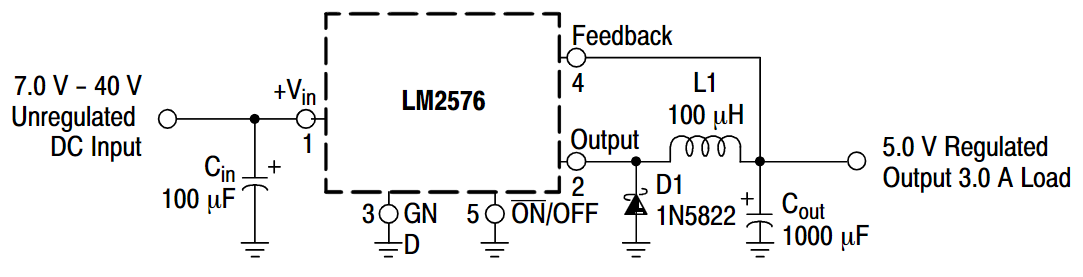

LM2576HVT-ADJ Typical application Circuitry

LM2576HVT-ADJ

The LM2576HVT-ADJ is a variant of the versatile LM2576 series, a family of regulator integrated circuits specifically designed for buck (step-down) voltage conversion. This adjustable version facilitates the customization of the output voltage as required for a particular application, within a specified range that is governed by external resistive components.

1. Input (Pin 1): This pin serves as the entry point for the input voltage, which is to be stepped down by the LM2576HVT-ADJ. An input capacitor should be connected to this pin to ensure smooth operation by mitigating voltage fluctuations and spikes.

2. Output (Pin 2): At this pin, the controlled output voltage is supplied. Key to its stable operation is an inductor, situated between this pin and the load, and a freewheeling diode that recirculates current when the internal switch is open. Additionally, an output capacitor is necessary to smooth out the voltage ripple.

3. Feedback (Pin 3): This pin is critical for setting the output voltage for the LM2576HVT-ADJ. A resistive voltage divider is connected to this pin, with the other end tied to the output and the other to ground. The LM2576HVT-ADJ modulates its internal components to maintain a constant voltage at the feedback pin, relative to a reference voltage.

4. On/Off (Pin 4): The functionality of the LM2576HVT-ADJ can be toggled using this pin. Driving it low deactivates the regulator, whereas connecting it to a high signal or leaving it open ensures the device remains operational.

5. Ground (Pin 5): As the common reference for all operations, this pin should be connected to the system ground. It plays a significant role in the regulation process of the LM2576HVT-ADJ.

Integrating the LM2576HVT-ADJ into a power supply circuit requires adherence to the guidelines provided in the datasheet, especially concerning the selection of inductors, diodes, and capacitors that match the intended output specifications. The physical layout of these components on a printed circuit board is equally important to achieve optimal performance and reliability from the LM2576HVT-ADJ.
