Texas Instruments LM2575T-5.0

Part No.:: LM2575T-5.0

Manufacturer:: Texas Instruments

Package:: TO-220-5

Datasheet:: LM2575T-5.0.pdf

Description:: IC REG BUCK 5V 1A TO220-5

In Stock:: 1792

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2575T-5.0 Specifications

Packaging:
Tube
Series:
SIMPLE SWITCHER®
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Fixed
NumberofOutputs:
1
Voltage-Input(Min):
4V
Voltage-Input(Max):
40V
Voltage-Output(Min/Fixed):
5V
Voltage-Output(Max):
-
Current-Output:
1A
Frequency-Switching:
52kHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Through Hole

LM2575T-5.0 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2575T-5.0 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2575T-5.0 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2575T-5.0 information

Views：

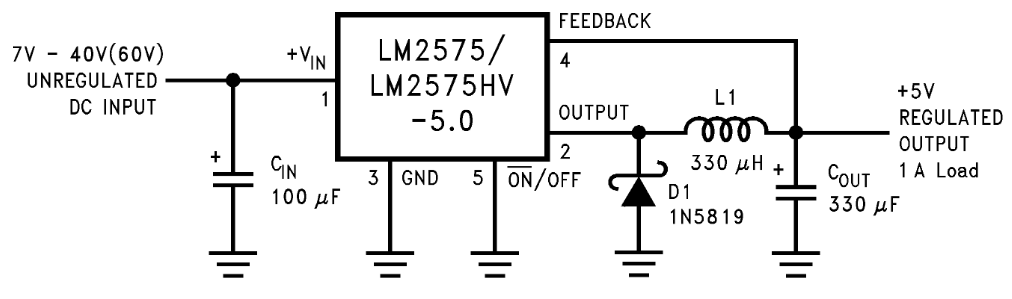

LM2575T-5.0 Typical application Circuitry

LM2575T-5.0

Belonging to the distinguished LM2575 series, the LM2575T-5.0 manifests as a monolithic integrated circuit tailored to cater to step-down voltage regulation requirements. Featuring the signature ease of the LM2575 series, this variant is meticulously crafted to produce a steady output voltage of 5.0V.

1. Pin 1 (Vin): As the lifeblood of the LM2575T-5.0, this pin is where the input voltage streams in, with an acceptable range spanning 4.75V to 40V. To ward off potential voltage fluctuations, integrating a decoupling capacitor in proximity to the IC is a seasoned strategy.

2. Pin 2 (Output): The heart of the switching mechanism, this pin entertains a direct liaison with the inductor, overseeing the seamless energy transfer during diverse switching phases. It also becomes a pivotal point for anchoring the anode of the catch diode.

3. Pin 3 (Ground): This pin anchors the LM2575T-5.0 to the circuit's grounding realm. A steadfast bond with the circuit's ground plane emanating from this pin is instrumental for optimal operational efficacy.

4. Pin 4 (Feedback): Given the LM2575T-5.0's commitment to a fixed 5.0V output, this pin doesn't necessitate an external dalliance.

5. Pin 5 (On/Off): This pin is the control hub, governing the regulator's activation and dormancy. A direct linkage to Vin, perhaps through a pull-up resistor, or leaving it untouched, will activate the regulator. Conversely, a grounded connection sends it into hibernation.

When architecting a circuit blueprint that integrates the LM2575T-5.0, it's paramount to keep pathways from Vin to the switch, and from the switch to the output, crisp and short. Such precision not only deters noise radiation but also elevates the device's performance metrics. Opting for components with a low ESR for both input and output capacitors translates into enhanced filtering and a minimized ripple effect.

Summarizing, the LM2575T-5.0 emerges as a beacon for scenarios that champion a sleek, efficient, and unwavering power solution. The in-built switching mechanism of this regulator diminishes reliance on extraneous entities, streamlining design intricacies and economizing space. Marrying precise pin interconnections with sterling PCB design nuances, one can harness the LM2575T-5.0's prowess to orchestrate a consistent 5V supply.
