ON Semiconductor LM211DR2G

Part No.:: LM211DR2G

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM211DR2G.pdf

Description:: IC COMPARATOR SGL HI VOLT 8SOIC

In Stock:: 3954

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM211DR2G Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
Voltage-SupplySingle/Dual(±):
5V ~ 30V, ±2.5V ~ 15V
Voltage-InputOffset(Max):
3mV @ ±15V
Current-InputBias(Max):
0.1µA @ ±15V
Current-Output(Typ):
-
Current-Quiescent(Max):
6mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM211DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM211DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM211DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM211DR2G information

Views：

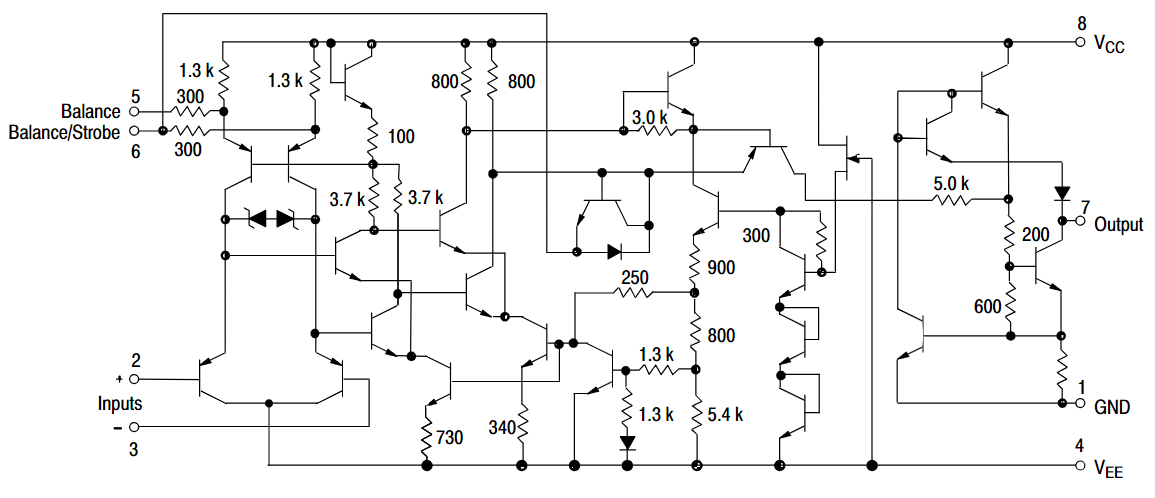

LM211DR2G Typical application Circuitry

LM211DR2G

The LM211DR2G belongs to the family of LM211 differential comparators, which are recognized for their swift response characteristics and compatibility with both digital and analog signals. These devices are engineered to operate on a broad spectrum of supply voltages, suitable for a multitude of applications such as logic systems, time delay circuits, and simple analog-to-digital converters.

1. Powering the Device:

- Pin 8 (VCC+): This terminal is where the LM211DR2G receives its positive supply voltage, accommodating a range from +3V to +36V in single-supply configurations or ±1.5V to ±18V in dual-supply modes.

- Pin 1 (GND/VCC-): For single-supply use, this pin is connected to the system's ground. When utilizing the LM211DR2G with dual supplies, this pin would be linked to the negative voltage rail.

2. Inputs for Comparison:

- Pin 2 (Inverting Input): The voltage level applied to this input of the LM211DR2G is the benchmark against which the non-inverting input's signal is assessed.

- Pin 3 (Non-Inverting Input): This input welcomes the signal whose voltage level is in question, set to be compared with the voltage at the inverting input.

3. Output Management:

- Pin 7 (Output): The LM211DR2G features an open-collector output, necessitating the inclusion of an external pull-up resistor to define the off-state voltage level.

4. Incorporating Hysteresis: Introducing hysteresis into the LM211DR2G's operation involves connecting a resistor from Pin 7 (Output) back to Pin 3 (Non-Inverting Input). This connection is beneficial for mitigating spurious output toggling due to noise on the input lines.

5. Optimization and Protection: To optimize the LM211DR2G's performance, one may need to adjust the biasing at the inputs by selecting appropriate resistor values, referring to the datasheet for guidance. Protection for the inputs can also be achieved using diodes to counteract potential voltage spikes.

6. Strobe and Balance Functionality:

- Pin 4 (Balance/Strobe): This multi-functional pin can be left unconnected if the strobe feature is not required for the LM211DR2G's application, or if differential balancing is not needed.

- Pin 5 (Balance): While it pairs with Pin 4 to provide input offset balance adjustment, it is often unused in general comparator circuits.

7. Disregarded Pin:

- Pin 6 (NC/No Connection): There is no internal connection to this pin in the LM211DR2G, and it does not participate in the circuit configuration.

In the circuit design process involving the LM211DR2G, it's also recommended to integrate a decoupling capacitor close to the device's power supply terminals to suppress potential noise on the power line. Adhering to the datasheet's recommended circuit layout, including proper grounding techniques, is critical to uphold the comparator's accuracy and to negate the likelihood of oscillatory behavior.
