Texas Instruments LM211DR

Part No.:: LM211DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM211DR.pdf

Description:: IC DIFF COMPARATOR W/STRB 8-SOIC

In Stock:: 2341

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM211DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
Voltage-SupplySingle/Dual(±):
3.5V ~ 30V, ±1.75V ~ 15V
Voltage-InputOffset(Max):
3mV @ ±15V
Current-InputBias(Max):
0.1µA @ ±15V
Current-Output(Typ):
50mA
Current-Quiescent(Max):
6mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM211DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM211DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM211DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM211DR information

Views：

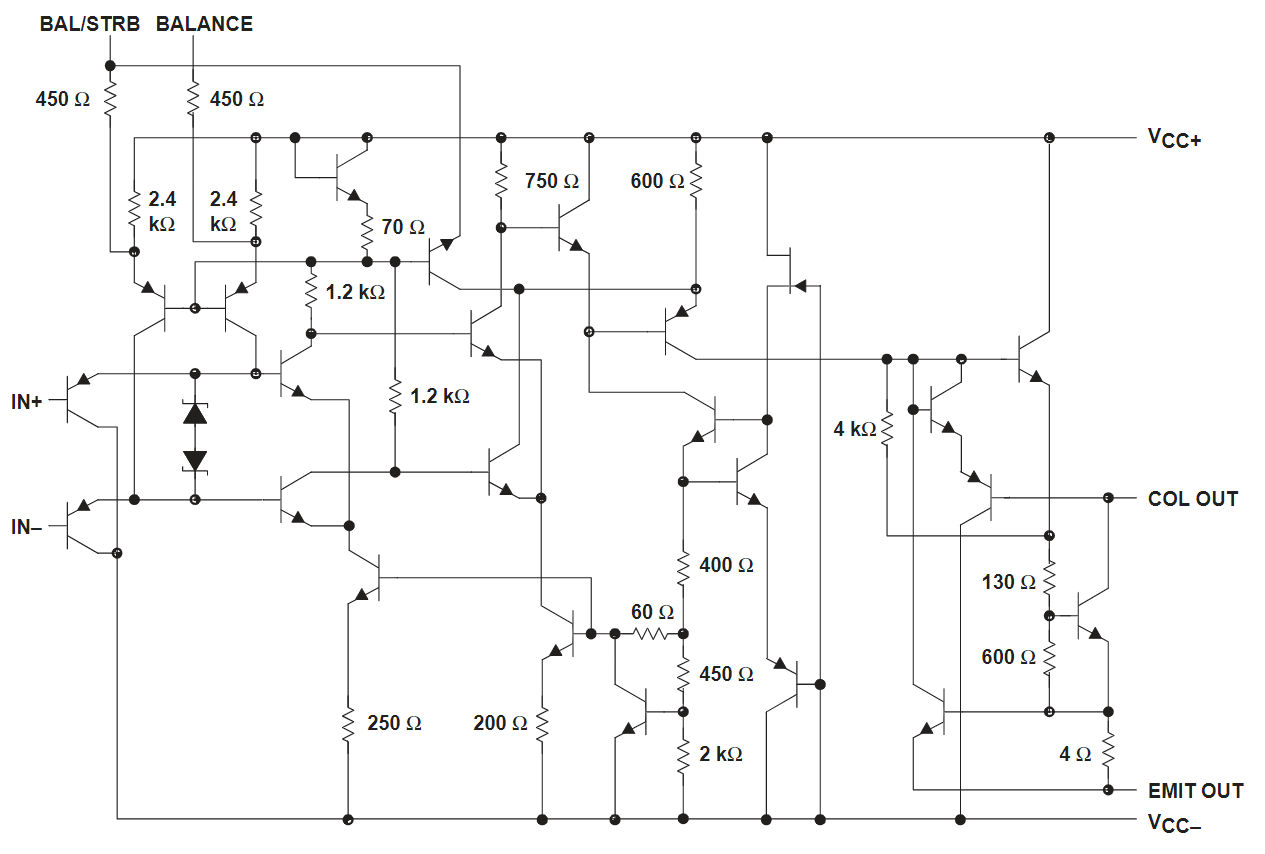

LM211DR Typical application Circuitry

LM211DR

The LM211DR is a differential comparator from Texas Instruments, designed with the capability of operating over a wide range of voltages, from single 5 V supply up to ±15 V dual supplies. An 8-pin small-outline integrated circuit (SOIC) package is the format in which it is offered. This component is optimized for low power consumption while still providing high-speed output switching.

1. Pin 1 (IN-): This is the inverting input pin to which you would connect the voltage that is to be compared. If your application demands comparing a signal to a set reference, this pin will receive the signal.

2. Pin 2 (IN+): The non-inverting input of the LM211DR is where the reference voltage would be applied. The output will change states if the voltage on this pin is higher than the voltage on the inverting input.

3. Pin 3 (Out): The output of the LM211DR is open-collector, requiring an external pull-up resistor to the positive supply voltage for proper logic level output. The input current and intended output speed can be used to modify the resistor's value.

4. Pin 4 (GND): This pin should be connected to the system ground. This ground acts as the reference point for both the input voltages and the power supply.

5. Pin 5 and Pin 6: These pins are used for balancing and strobing but are not always implemented in all versions of the LM211 series. If unused in the LM211DR variant, these pins are typically left unconnected or connected to a potential that disables the strobe feature, often the positive supply voltage.

6. Pin 7 (Vcc+): Attach this pin to the power supply's positive side. The LM211DR functions over a wide range of positive supply voltages, which should be chosen based on the requirements of your particular circuit.

7. Pin 8 (Vcc-): For a single supply operation, this pin would connect to the ground. In a split supply operation, it would connect to the negative supply voltage. The range of operation for the LM211DR makes it versatile for various configurations.

To ensure the accurate operation of the LM211DR, it is recommended to place a bypass capacitor (typically 0.1 μF) between the supply pins (Vcc+ and Vcc-) and ground, as close to the device as possible. This bypass capacitor helps in filtering out noise and stabilizing the supply voltage.

When designing a circuit with the LM211DR, one must be mindful of creating a layout that minimizes the length of the connections to reduce parasitic capacitance and inductance effects, which could otherwise affect the performance of the comparator. Moreover, verifying the LM211DR's datasheet for the specific electrical characteristics pertinent to the device is essential to avoid exceeding its maximum ratings and to ensure that all conditions for proper functionality are met.
