Texas Instruments LM193DRG4

Part No.:: LM193DRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM193DRG4.pdf

Description:: IC DUAL DIFF COMPARATOR 8-SOIC

In Stock:: 2240

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM193DRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Differential
NumberofElements:
2
OutputType:
CMOS, MOS, Open-Drain, TTL
Voltage-SupplySingle/Dual(±):
2V ~ 36V, ±1V ~ 18V
Voltage-InputOffset(Max):
5mV @ 30V
Current-InputBias(Max):
0.1µA @ 5V
Current-Output(Typ):
20mA
Current-Quiescent(Max):
2.5mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

LM193DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM193DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM193DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM193DRG4 information

Views：

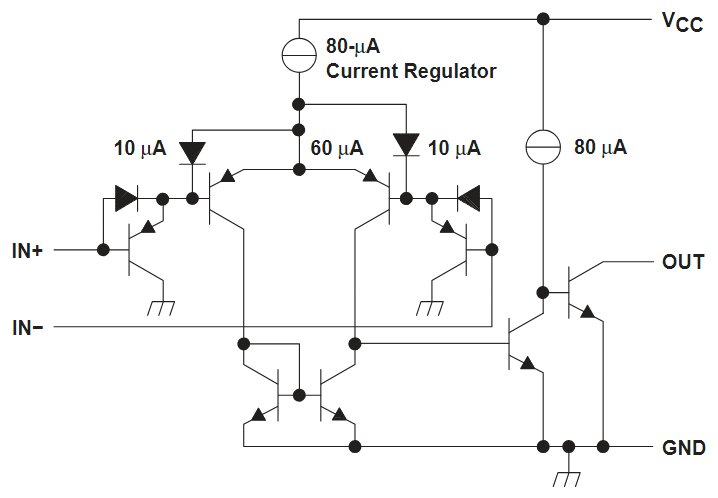

LM193DRG4 Typical application Circuitry

LM193DRG4

The LM193DRG4 is part of the LM193 series, which comprises low-power, low-offset voltage, dual comparators. These devices may run across a broad voltage range from a single power source, or from two supplies in the case of systems that need a bipolar supply. They are commonly used in applications where the need to compare different voltages and provide a corresponding digital output signal is essential, such as in control systems, oscillators, or simple analog to digital converters.

1. Pin 1 (OUT 1): Output of comparator 1. This pin goes high or low depending on the comparison between the voltages at the inverting and non-inverting inputs of comparator 1.

2. Pin 2 (IN- 1): Inverting input of comparator 1. The voltage at this pin is compared with the voltage at pin 3.

3. Pin 3 (IN+ 1): Non-inverting input of comparator 1. If the voltage at this pin is higher than that at pin 2, the output at pin 1 will go high (assuming the supply voltage is connected properly).

4. Pin 4 (VCC-): Ground or the negative supply voltage if a dual supply is being used.

5. Pin 5 (IN+ 2): Non-inverting input of comparator 2. Similar to pin 3, it serves as the reference voltage for the second comparator.

6. Pin 6 (IN- 2): Inverting input of comparator 2. The voltage here is compared with the voltage at pin 5.

7. Pin 7 (OUT 2): Output of comparator 2. This pin provides the second comparator's comparison result and functions similarly to pin 1.

8. Pin 8 (VCC+): Positive supply voltage. This can range from a few volts to the maximum specified for the LM193DRG4 series.

9. Here are some important notes on using the LM193DRG4:

- The power supply voltage (connected to pins 4 and 8) should be within the range specified in the datasheet.

- Input voltage at any pin should not exceed the power supply levels to prevent damage.

- To stabilize the functioning, decoupling capacitors, usually 0.1 µF, should be positioned near the power supply pins.

- The output can sink current, which means it can be directly connected to an LED or a transistor base with a resistor in series.
