Texas Instruments ISOW7842DWE

Part No.:: ISOW7842DWE

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: ISOW7842DWE.pdf

Description:: DGTL ISO 5000VRMS 4CH GP 16SOIC

In Stock:: 3234

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ISOW7842DWE Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
Technology:
Capacitive Coupling
Type:
General Purpose
IsolatedPower:
Yes
NumberofChannels:
4
Inputs-Side1/Side2:
2/2
ChannelType:
Unidirectional
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
100kV/µs
DataRate:
100Mbps
PropagationDelaytpLH/tpHL(Max):
17.6ns, 17.6ns
PulseWidthDistortion(Max):
4.7ns
Rise/FallTime(Typ):
2ns, 2ns
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ISOW7842DWE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ISOW7842DWE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ISOW7842DWE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ISOW7842DWE information

Views：

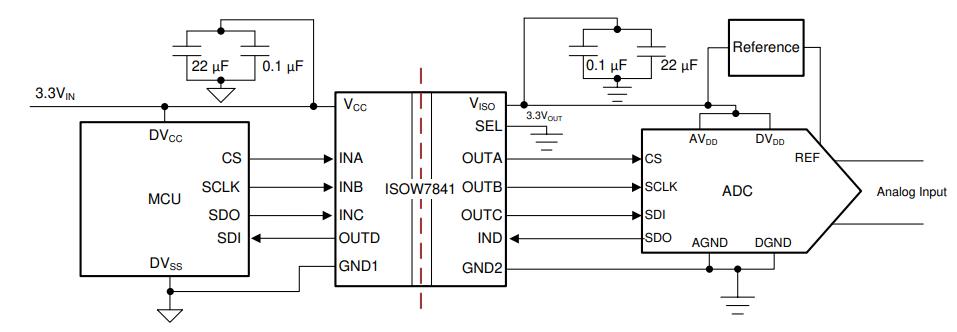

ISOW7842DWE Typical application Circuitry Schematics

The ISOW7842DWE is a high-performance, quad-channel digital isolator with integrated isolated power, designed and manufactured by Texas Instruments. This device serves both as an isolator for digital signals and as a power source, beneficial in many industrial, automotive, and medical systems. The ISOW7842DWE's principal characteristics and details include:

1. Integrated Isolated Power: The ISOW7842DWE provides both signal isolation and isolated power in one package. It can deliver up to 650mW of output power, which can power other devices on the isolated side.

2. Isolation: The ISOW7842DWE provides robust isolation up to 5kVrms according to the UL 1577 standard, offering safety and protection against high voltages.

3. Channels: The device includes four independent isolation channels. Depending on the specific needs of the application, different configurations are available with all four channels in the same direction or two in each direction.

4. High Data Rates: The ISOW7842DWE supports data rates up to 100 Mbps, making it suitable for high-speed digital isolation applications.

5. Efficiency: The integrated isolated power supply of the ISOW7842DWE operates with high efficiency, reducing the thermal footprint and power consumption.

6. Supply Voltage: The ISOW7842DWE operates with a wide supply voltage range from 3V to 5.5V.

7. Packaging: The ISOW7842DWE comes in a wide-body SOIC-16 (Small Outline Integrated Circuit) package, which is ideal for space-constrained applications.

8. Applications: The ISOW7842DWE is typically used in a range of applications that require both isolation and power transfer, such as industrial automation, motor control, medical equipment, hybrid electric vehicle (HEV) and electric vehicle (EV) systems, and power supplies.

As always, the Texas Instruments data sheet or other official documentation should be consulted for the most precise and recent information.
