Texas Instruments ISO7762DBQR

Part No.:: ISO7762DBQR

Manufacturer:: Texas Instruments

Package:: 16-SSOP (0.154, 3.90mm Width)

Datasheet:: ISO7762DBQR.pdf

Description:: DGTL ISO 3000VRMS 6CH GP 16SSOP

In Stock:: 2683

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ISO7762DBQR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ISO776x
ProductStatus:
Active
Technology:
Capacitive Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
6
Inputs-Side1/Side2:
4/2
ChannelType:
Unidirectional
Voltage-Isolation:
3000Vrms
CommonModeTransientImmunity(Min):
85kV/µs
DataRate:
100Mbps
PropagationDelaytpLH/tpHL(Max):
16ns, 16ns
PulseWidthDistortion(Max):
4.9ns
Rise/FallTime(Typ):
1.1ns, 1.4ns
Voltage-Supply:
2.25V ~ 5.5V
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

ISO7762DBQR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ISO7762DBQR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ISO7762DBQR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ISO7762DBQR information

Views：

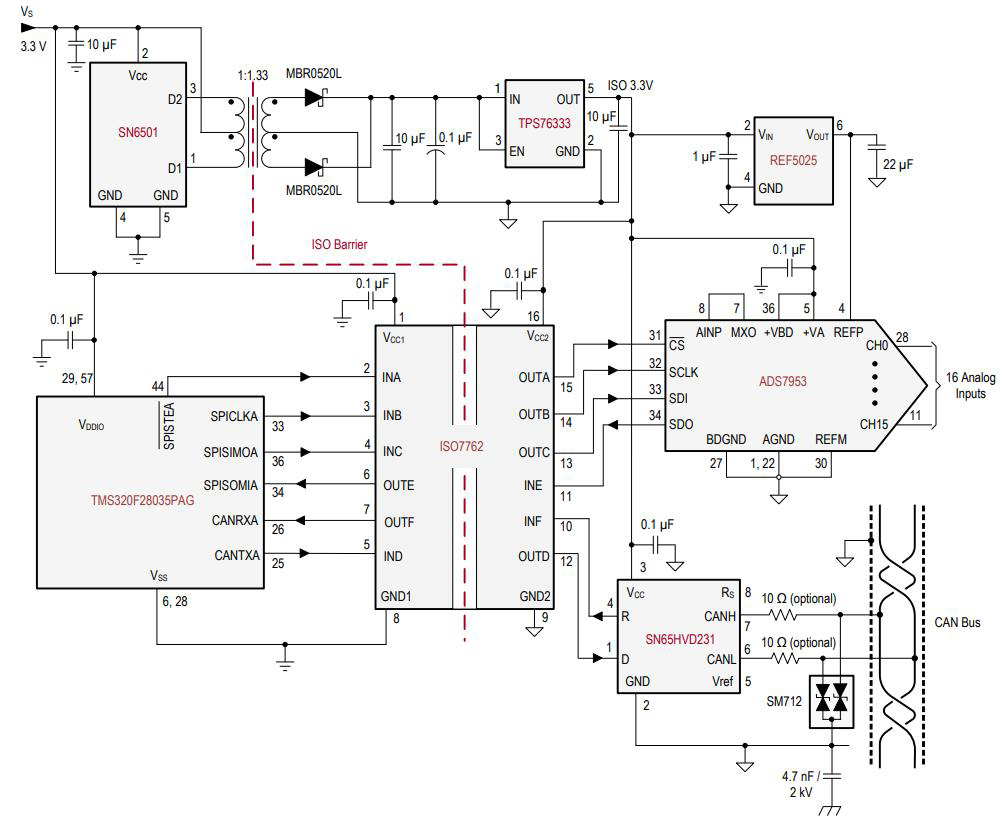

ISO7762DBQR Typical application Circuitry

ISO7762DBQR

The ISO7762DBQR from Texas Instruments is a high-performance, reinforced, six-channel digital isolator with an isolation barrier life of more than 40 years. It finds wide applications in a variety of sectors such as industrial, communication, and medical due to its outstanding performance and robustness.

1. Power Supply: ISO7762DBQR requires two separate power supplies, one for each isolated side. This enhances its flexibility in different application circuits as it can handle a wide range of voltages.

2. Data Rate: With a data rate of up to 100 Mbps, ISO7762DBQR ensures quick and effective communication across the isolation barrier, an attribute that is crucial in fast-paced industrial applications.

3. Isolation Channels: This device features six isolation channels, allowing it to handle multiple digital signals simultaneously. This can significantly simplify circuit design in complex systems.

4. Robustness: The ISO7762DBQR provides reinforced isolation, with a withstand voltage rating of up to 5 kVrms, ensuring high robustness against electrical noise and surges, which makes it suitable for harsh industrial environments.

5. Default Output: In case of input power or signal loss, the ISO7762DBQR has default output feature can configure the default state of the output, enhancing the safety aspect in critical applications.

6. Power Consumption: The device offers low power consumption with its 5 V supply, contributing to energy-efficient designs.

7. Package: The ISO7762DBQR comes in a 16-pin SOIC package, which saves valuable board space in compact designs.

8. Safety Approvals: The ISO7762DBQR is approved by various safety regulatory agencies, including CSA, VDE, TUV, and CQC, providing an extra layer of assurance in safety-critical applications.

9.Layout Consideration: For optimal performance and reliability, power supply bypass capacitors should be placed as close to the device pins as possible.

10. Applications: Some key applications of the ISO7762DBQR include isolated SPI, I2C interfaces, isolated ADCs and DACs, and medical equipment.

To sum up, the ISO7762DBQR offers a multitude of features that make it a versatile choice when designing an application circuit. Its multichannel support, robust isolation capabilities, flexible power supply options, and regulatory approvals make it a stand-out option in the digital isolator market.
