Texas Instruments ISO7740DBQ

Part No.:: ISO7740DBQ

Manufacturer:: Texas Instruments

Package:: 16-SSOP (0.154, 3.90mm Width)

Datasheet:: ISO7740DBQ.pdf

Description:: DGTL ISO 5000VRMS 4CH GP 16SSOP

In Stock:: 2089

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ISO7740DBQ Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
Technology:
Capacitive Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
4
Inputs-Side1/Side2:
4/0
ChannelType:
Unidirectional
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
85kV/µs
DataRate:
100Mbps
PropagationDelaytpLH/tpHL(Max):
16ns, 16ns
PulseWidthDistortion(Max):
4.9ns
Rise/FallTime(Typ):
2.4ns, 2.4ns
Voltage-Supply:
2.25V ~ 5.5V
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

ISO7740DBQ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ISO7740DBQ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ISO7740DBQ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ISO7740DBQ information

Views：

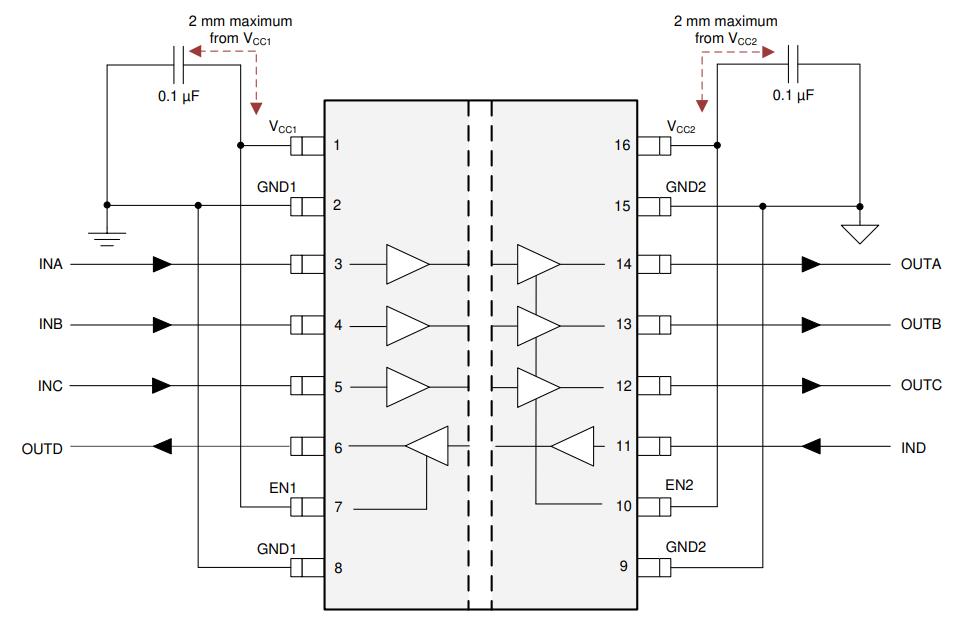

ISO7740DBQ Typical application Circuitry

ISO7740DBQ

A high-performance, four-channel digital isolator with three channels for forward and one for reverse direction, the ISO7740DBQ. Produced by Texas Instruments, this IC provides the critical function of transferring digital signals across isolation barriers, thereby ensuring reliable data transmission in noise-sensitive or harsh industrial environments.

Key Features of ISO7740DBQ:

1. Quad-Channel Isolation: This feature lends versatility to the ISO7740DBQ, enabling it to isolate multiple digital signals independently.

2. High-Speed Operation: With data rates of up to 100 Mbps, the IC can efficiently serve in high-speed digital communication interfaces.

3. Robust Isolation: In accordance with the end equipment standards UL 1577, IEC 60950-1, and IEC 62368-1, it offers reinforced isolation rated up to 5000 VRMS for 1 minute.

4. Low Power Consumption: Its low power dissipation is especially advantageous in power-critical applications.

5. Wide Operating Temperature Range: The device can function effectively in a broad temperature range from -40°C to +125°C.

Applications of ISO7740DBQ:

The ISO7740DBQ finds use in a variety of applications, including industrial automation, medical equipment, electric vehicle systems, power supplies, and any other application where reliable digital signal isolation is crucial.

Sample Circuit Connection - SPI Interface Isolation:

Consider a situation where we use the ISO7740DBQ for isolating an SPI (Serial Peripheral Interface) bus. Here's how you could connect it:

- Pin 1 (VCCI): Connect this pin to the supply voltage on the SPI master side.

- Pin 2-4 (IN1-IN3): Connect these pins to the SPI signals (SCLK, MOSI, and SS) on the SPI master side.

- Pin 5 (GNDI): Connect this pin to the ground on the SPI master side.

- Pin 6 (VCCO): Connect this pin to the supply voltage on the SPI slave side.

- Pin 7-9 (OUT1-OUT3): Connect these pins to the corresponding SPI signals (SCLK, MOSI, and SS) on the SPI slave side.

- Pin 10 (GNDO): Connect this pin to the ground on the SPI slave side.

- Pin 11-12 (IN4, OUT4): Connect these pins to the SPI MISO signal line, IN4 on the SPI slave side, and OUT4 on the SPI master side.

Design Considerations:

1. Power Supply Decoupling: Placing decoupling capacitors close to the VCCI and VCCO pins can significantly mitigate noise and enhance the performance of the isolator.

2. Data Rate: Keep ISO7740DBQ's maximum rate of 100 Mbps in mind while designing your SPI or other digital interfaces.

3. Ground Separation: Preserve the integrity of isolation by maintaining separate grounds (GNDI and GNDO) on either side of the isolator.

4. Isolation Requirements: Evaluate your design for isolation requirements. While ISO7740DBQ provides strong isolation, the overall isolation performance can be influenced by your system's design and layout.

To sum up, the ISO7740DBQ is an efficient, high-speed, quad-channel digital isolator, suitable for various applications that require effective digital signal isolation. Its robust isolation capabilities, high-speed performance, and low power consumption make it an excellent choice for isolating digital interfaces like SPI, I2C, and others.
