Texas Instruments ISO7240MDWR

Part No.:: ISO7240MDWR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: ISO7240MDWR.pdf

Description:: DGTL ISO 2500VRMS 4CH GP 16SOIC

In Stock:: 3729

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ISO7240MDWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Technology:
Capacitive Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
4
Inputs-Side1/Side2:
4/0
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
150Mbps
PropagationDelaytpLH/tpHL(Max):
23ns, 23ns
PulseWidthDistortion(Max):
2ns
Rise/FallTime(Typ):
2ns, 2ns
Voltage-Supply:
3.15V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ISO7240MDWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ISO7240MDWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ISO7240MDWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ISO7240MDWR information

Views：

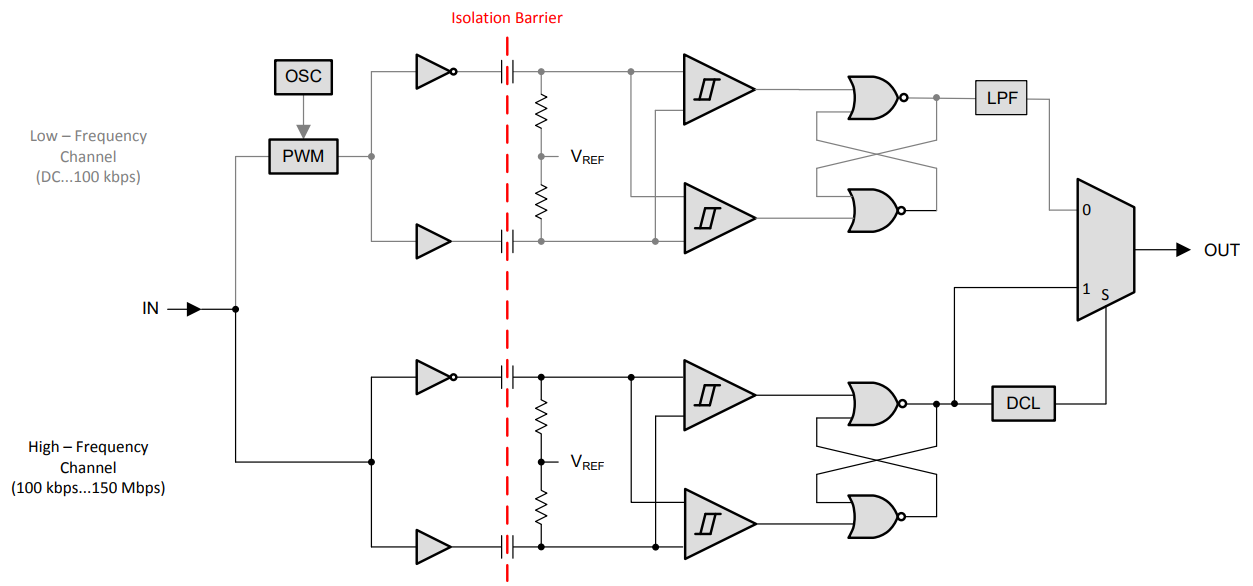

ISO7240MDWR Typical application Circuitry

ISO7240MDWR is a quad-channel digital isolator produced by Texas Instruments. It's designed to offer signal isolation and reduce noise and interference in various digital signal applications.

ISO7240MDWR is particularly valuable in circumstances that necessitate digital signal isolation, such as communication interfaces, medical electronics, isolated ADCs and DACs, as well as power inverters.

Key characteristics of the ISO7240MDWR are:

1. Quad Channel: It comprises four independent isolation channels.

2. High-Speed Performance: It offers up to 150 Mbps (Mega-bits per second) data rate.

3. Robust Isolation Barrier: It provides an isolation barrier capable of withstanding up to 4250 VPK.

4. Wide Supply Voltage Range: The chip operates over a wide supply voltage range of 3 V to 5.5 V.

Let's contemplate the application of ISO7240MDWR in an isolated SPI (Serial Peripheral Interface) communication scheme:

1. Connecting Power Supply: Attach the supply to the VCCI (Pin 3) and GNDI (Pin 4) pins for the input side and to the VCCO (Pin 11) and GNDO (Pin 12) pins for the output side.

2. Interface with SPI: Connect the SPI's MOSI (Master Out Slave In) line to one of the INx (Pin 6, 7, 8, 9) pins, and the MISO (Master In Slave Out) line to the corresponding OUTx (Pin 13, 14, 15, 16) pin.

3. Ensuring Isolation: The isolation barrier is inherently built into the chip, isolating the INx and OUTx pins.

While creating a design using the ISO7240MDWR, certain considerations should be borne in mind:

- Supply Power: The input and output sides of the isolator require separate power supplies. Both supplies must fall within the chip's specified operating range.

- Grounding: The ground references for each power supply should be handled appropriately to ensure correct operation.

- Signal Integrity: Signal paths should be kept as short as possible, and measures should be adopted to minimize noise and crosstalk.

- PCB Layout: Follow good PCB layout practices, such as strategic placement of bypass capacitors.

To summarize, the ISO7240MDWR is a high-speed, multi-channel, robust isolation solution, offering excellent performance for a variety of applications requiring digital signal isolation. Given that it combines high speed, numerous channels, and enhanced isolation into a single package, it is the ideal choice for a number of applications.
