Texas Instruments ISO7221BDRG4

Part No.:: ISO7221BDRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ISO7221BDRG4.pdf

Description:: DGTL ISO 2500VRMS 2CH GP 8SOIC

In Stock:: 2136

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ISO7221BDRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Technology:
Capacitive Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
2
Inputs-Side1/Side2:
1/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
5Mbps
PropagationDelaytpLH/tpHL(Max):
70ns, 70ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
1ns, 1ns
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ISO7221BDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ISO7221BDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ISO7221BDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ISO7221BDRG4 information

Views：

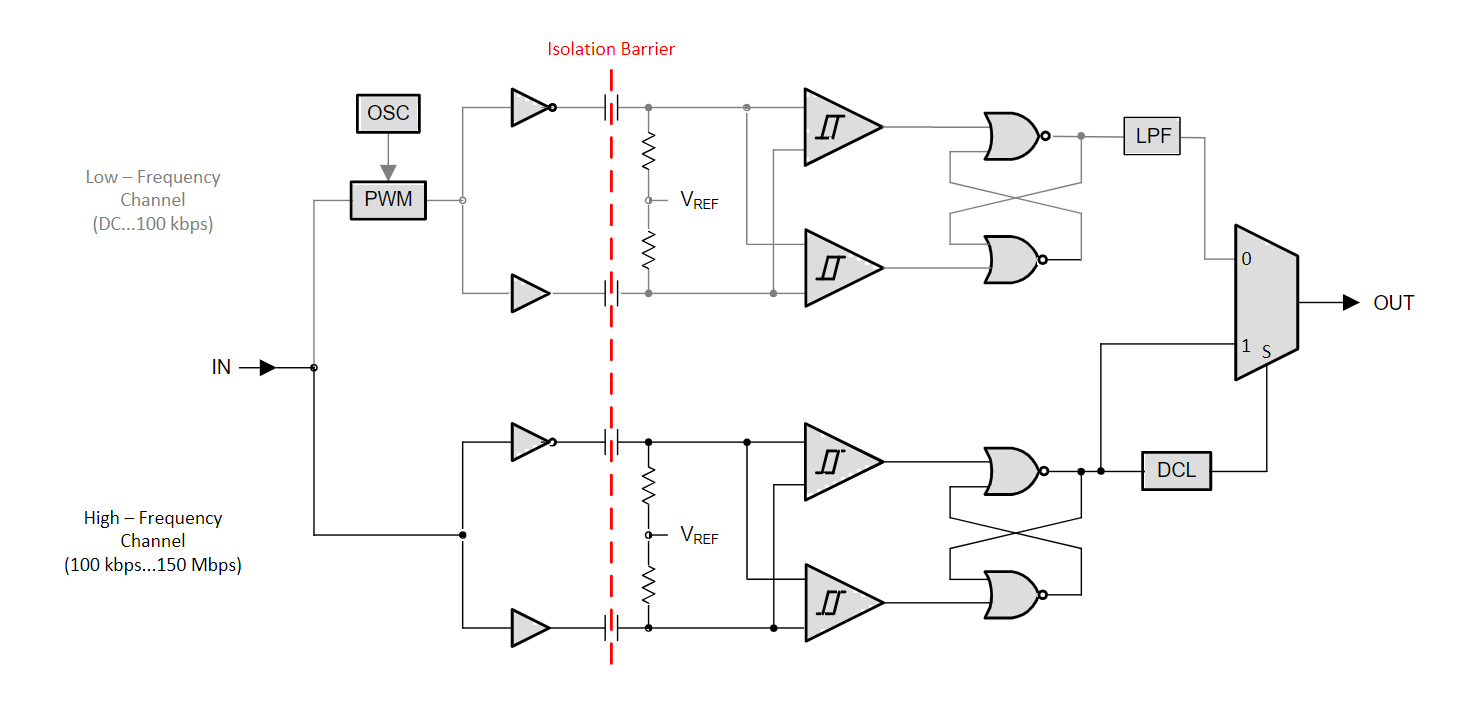

ISO7221BDRG4 Typical application Circuitry
