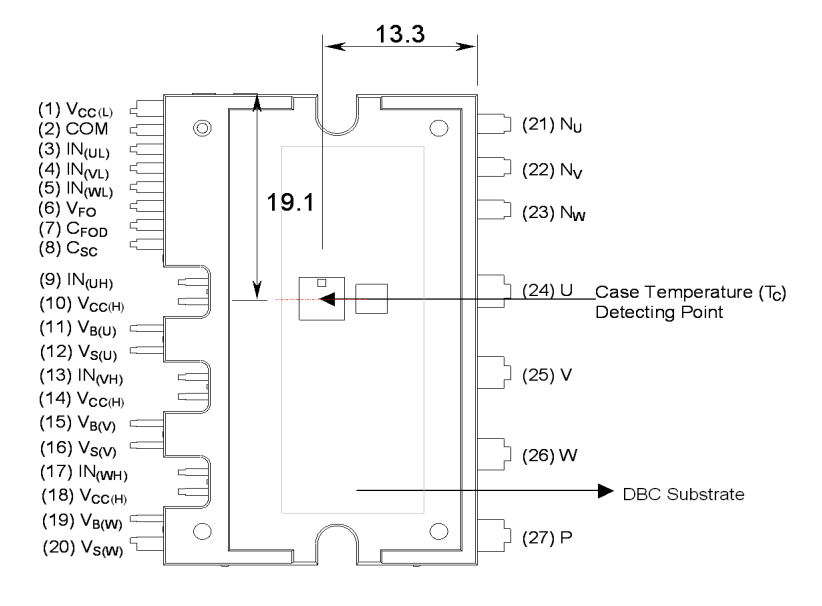

ON Semiconductor FSBB20CH60CL

Part No.:: FSBB20CH60CL

Manufacturer:: ON Semiconductor

Package:

Datasheet:: FSBB20CH60CL.pdf

Description:: SMART POWER MODULE 20A SPM27-CB

In Stock:: 3580

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FSBB20CH60CL Specifications

Package/Case:
Packaging:
Tube
Series:
Motion SPM® 3
Product Status:
Obsolete
Type:
IGBT
Configuration:
3 Phase
Current:
20 A
Voltage:
600 V
Voltage-Isolation:
2500Vrms
MountingType:
Through Hole

FSBB20CH60CL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FSBB20CH60CL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FSBB20CH60CL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FSBB20CH60CL information

Views：

FSBB20CH60CL Typical application Circuitry

The FSBB20CH60CL is an advanced smart power module that essentially acts as an integrated inverter for driving three-phase motor applications. Its configuration is optimized for high-efficiency electric motor control, offering a compact and reliable solution for variable speed and torque management.

What are the Application Scenarios for FSBB20CH60CL?

Applications of FSBB20CH60CL range from air conditioners, washing machines, and refrigerators to industrial motors and even electric vehicle drivetrains.

Key Features of FSBB20CH60CL

- Voltage Rating: 600V

- Current Rating: 20A

- In-built protection features such as overcurrent shutdown and fault detection.

- Efficient thermal performance

Detailed Circuit Connection for an Air Conditioner Application

Required Components:

- FSBB20CH60CL Smart Power Module

- Three-Phase AC Motor

- Microcontroller Unit (MCU)

- Gate Resistors and Pull-down Resistors

- Auxiliary Power Supply

- Capacitors and Inductors as Filters

Circuit Design Methodology:

1. Input Voltage Connection: Connect your DC power supply's positive and negative terminals to the FSBB20CH60CL's DC bus (+) and (-) terminals, respectively.

2. Three-Phase Motor Connections: The U, V, and W terminals of FSBB20CH60CL should be connected to the corresponding terminals of the three-phase AC motor.

3. Control Signals: Use a microcontroller to generate the PWM signals. These signals should be fed to the inputs labeled IN1, IN2, and IN3 on the FSBB20CH60CL.

4. Gate Resistors: Place gate resistors between the MCU's output pins and the IN1, IN2, IN3 terminals of FSBB20CH60CL to limit the inrush current.

5. Feedback Mechanism: Connect a set of current and voltage sensors to the FSBB20CH60CL to provide feedback to the MCU for closed-loop control.

6. Protective Components: Integrate fuses and diodes to protect FSBB20CH60CL from overvoltage and reverse voltage scenarios.

Design Considerations:

1. Cooling Solution: FSBB20CH60CL may generate substantial heat. Proper heatsinking and thermal management are critical.

2. Signal Integrity: Given that FSBB20CH60CL is sensitive to noise, proper shielding and grounding are necessary.

3. PWM Frequency: Ensure the PWM frequency is within the specified operating range of FSBB20CH60CL for optimum performance.

4. Safety Measures: Implement safety features like emergency stop and overcurrent protection to safeguard both FSBB20CH60CL and the motor.

By carefully considering these aspects, one can optimize the FSBB20CH60CL for robust and efficient performance in demanding applications like air conditioners.
