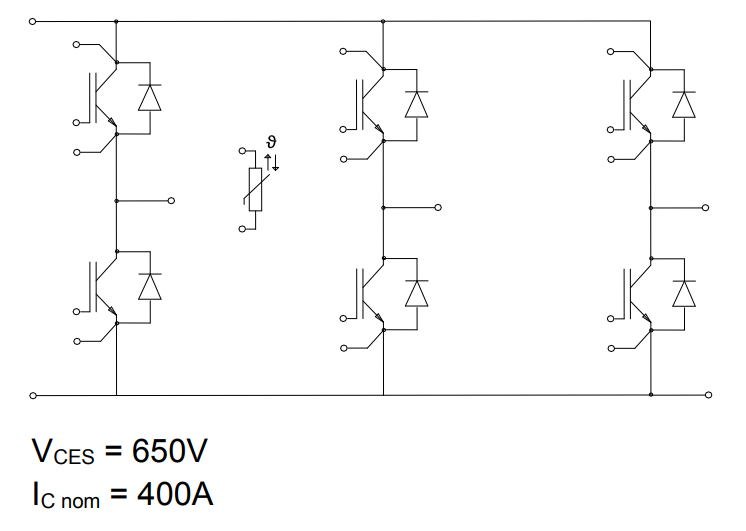

FS400R07A1E3 Typical application Circuitry

The FS400R07A1E3 is a robust Insulated Gate Bipolar Transistor (IGBT) module from the renowned manufacturer Infineon Technologies. These power modules are designed to switch electrical power efficiently and with high reliability, making them ideal for a variety of power electronics applications.

Characteristic Features of FS400R07A1E3:

- Voltage Rating: The FS400R07A1E3 comes with a voltage rating of 650V. It can handle significant voltage levels, making it suitable for high-power applications.

- Current Rating: The module is designed to handle a continuous collector current of up to 400A at 25°C, facilitating its use in high current scenarios.

- Package: It utilizes a 62mm C-series package which is standardized and perfect for robust power applications.

- Technology: The module leverages IGBT4 V-CE(sat) with positive temperature coefficient technology. This enhances its performance and reliability even in high temperature environments.

Application Scenarios for FS400R07A1E3:

The FS400R07A1E3 is widely used in several high power applications, including industrial motor drives, solar inverters, uninterruptible power supplies (UPS), and other power conversion systems.

Example Circuit Connection - Industrial Motor Drive:

1. Power Terminals: The FS400R07A1E3 module has three primary power terminals: collector (C), gate (G), and emitter (E). The collector and emitter are used to switch the load (an industrial motor in this case), while the gate terminal is used to control the switching activity.

2. Gate-Emitter Voltage (VGE): The gate terminal (G) is connected to a pulse-width modulation (PWM) signal from a microcontroller or similar control circuitry. This signal determines when the IGBT turns on and off, thereby controlling the power delivery to the motor.

3. Load Connection: The collector (C) is connected to the positive terminal of the power supply, while the emitter (E) is connected to the load (the motor), which is then connected to the negative terminal of the power supply to complete the circuit.

4. Protection Circuitry: A snubber circuit (usually a resistor-capacitor or RC network) can be connected across the collector and emitter to protect the IGBT module from voltage spikes.

Design Considerations with FS400R07A1E3:

- Gate-Emitter Voltage (VGE): Care should be taken to ensure that the gate-emitter voltage does not exceed the module's maximum VGE rating, as exceeding this can lead to permanent damage to the FS400R07A1E3 module.

- Cooling: Considering the high power levels, suitable thermal management (e.g., heat sinks or fans) should be included in the design to prevent overheating of the FS400R07A1E3.

- Snubber Circuit: Given the high voltage and current levels, a snubber circuit is recommended to protect the IGBT from potential voltage transients.

- Driving Circuit: A robust and correctly designed driving circuit is crucial. Any malfunction can cause severe problems, such as the module not switching off or getting damaged due to excessive current.
