Fairchild Semiconductor FPF2165

Part No.:: FPF2165

Manufacturer:: Fairchild Semiconductor

Package:: 6-MicroFET (2x2)

Datasheet:: FPF2165.pdf

Description:: CURRENT LIMIT LOAD SWITCH

In Stock:: 3537

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FPF2165 Specifications

Package/Case:
6-MicroFET (2x2)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
P-Channel
Interface:
On/Off
Voltage-Load:
1.8V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.5A
RdsOn(Typ):
120mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

FPF2165 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FPF2165 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FPF2165 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FPF2165 information

Views：

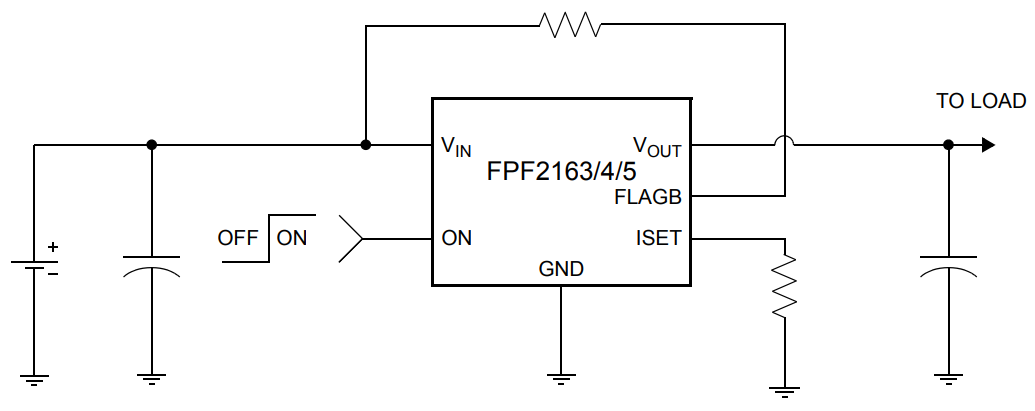

FPF2165 Typical application Circuitry

FPF2165

The FPF2165 is a component of ON Semiconductor's IntelliMAX™ product family, a collection of advanced load switches designed for power management in a range of electronic devices. It serves as an integrated circuit that controls the distribution and management of power to ensure safety and efficiency. The FPF2165 is optimized for operation with portable and space-constrained applications, providing protection features like controlled turn-on and over-current shutdown with auto-retry functionality.

1. Voltage Operation and Power Supply Configuration: The FPF2165 operates within an input voltage range typically between 2.5V and 5.5V, which aligns with common low-voltage power rails in electronics. This voltage range enables the FPF2165 to be versatile across various designs, particularly fitting for battery-powered devices where efficient power management is crucial.

2. Connection Method and Detailed Pin Layout: The FPF2165 comes in a compact package that includes several pins critical for its operation: VIN (the input voltage to the switch), VOUT (the controlled output voltage), ON (the enable input), and GND (the ground connection). Additionally, it includes an over-current fault flag output (FLAGB), which provides an indication when the current limit threshold has been exceeded. For precise control and protection, the correct connection of each pin is essential, following the recommended layout guidelines to ensure the integrity of signals and power distribution.

3. Optimal System Efficiency via Strategic Connectivity: Proper integration of the FPF2165 into an electronic system requires careful consideration of each connection. This means providing a stable voltage at the VIN pin, ensuring that the ON pin is connected to a logic source for enabling the switch, and connecting the FLAGB pin to a status monitoring input of a microcontroller, allowing the system to react to fault conditions appropriately.

4. Thermal Management Considerations: Even with its built-in thermal protection features, the FPF2165 should be operated within its specified temperature range to ensure longevity and reliability. Adequate PCB layout for heat dissipation, including ground plane allocation and thermal vias, if necessary, is important to maintain the thermal wellbeing of the device.

5. Circuit Design and Implementation for Enhanced Performance: Utilizing the FPF2165 in a design requires an understanding of its load management capabilities and protection features. The circuit should be designed with considerations for the timing of the controlled turn-on, the sizing of external components to ensure the current limit setpoint is appropriate for the load, and the management of fault conditions through the FLAGB output.

6. Component Selection for System Design: Incorporating the FPF2165 into a system design involves selecting components that complement its specifications and functions. This includes choosing capacitors with appropriate voltage ratings for input and output stabilization, resistors for setting timing characteristics if applicable, and interface elements that work with the ON and FLAGB functionalities. Choosing the right components to accompany the FPF2165 is vital for achieving an optimized power management solution.

In conclusion, the FPF2165 from ON Semiconductor's IntelliMAX™ series stands out as a versatile and robust load switch solution, engineered to enhance the power management capabilities of modern electronics. It's a pivotal component that, when correctly implemented and complemented with suitable external components, contributes to the development of efficient, reliable, and safe electronic products.
