Intel EPM570F100C5NAA

Part No.:: EPM570F100C5NAA

Manufacturer:: Intel

Package:: 100-LBGA

Datasheet:

Description:: IC CPLD 440MC 5.4NS 100FBGA

In Stock:: 2405

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EPM570F100C5NAA Specifications

Package/Case:
100-LBGA
Packaging:
Tray
Series:
MAX® II
ProductStatus:
Active
ProgrammableType:
In System Programmable
DelayTimetpd(1)Max:
8.7 ns
VoltageSupply-Internal:
2.375V ~ 2.625V, 3V ~ 3.6V
NumberofLogicElements/Blocks:
570
NumberofMacrocells:
440
NumberofGates:
-
NumberofI/O:
76
OperatingTemperature:
0°C ~ 85°C (TJ)
MountingType:
Surface Mount

EPM570F100C5NAA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EPM570F100C5NAA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EPM570F100C5NAA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EPM570F100C5NAA information

Views：

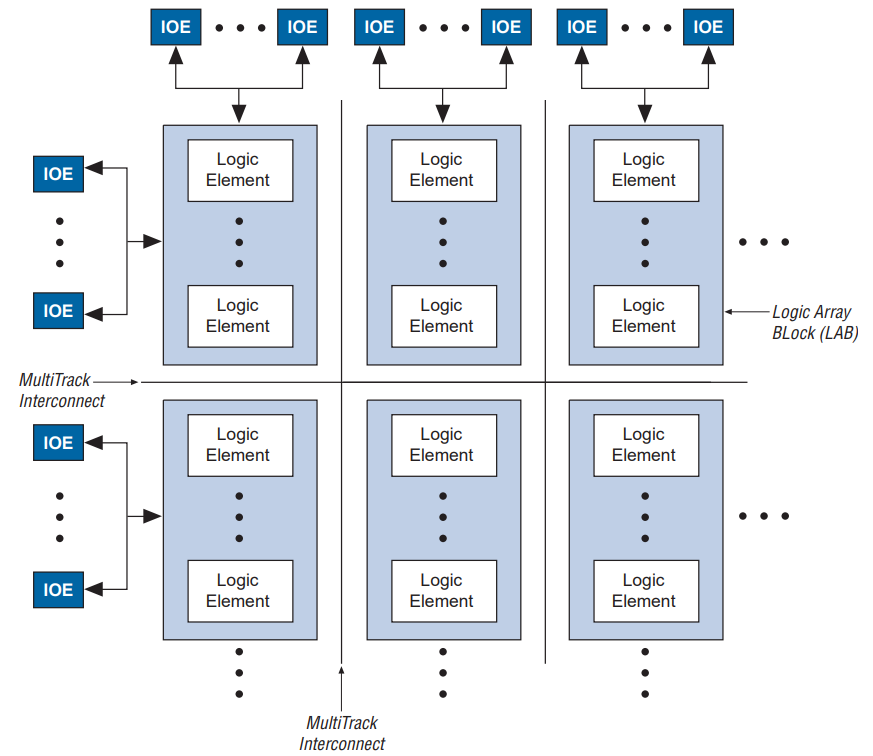

EPM570F100C5NAA Typical application Circuitry

The EPM570F100C5NAA is a Complex Programmable Logic Device (CPLD) from Intel's MAX II series. It's engineered to meet the needs of advanced digital logic designs and signal processing implementations.

Key Features:

- Logical Elements: 570

- Macrocells: 440

- I/O Pins: Up to 158

- Operational Voltage: 1.8V

- Package: 100-pin FineLine BGA

- Flash Memory: Built-in

- PLLs: Integrated

Fields of Application

The EPM570F100C5NAA can serve a multitude of functions in diverse domains such as:

1. Networking Equipment

2. Home Automation Systems

3. Robotics

4. Medical Devices

5. Embedded Controllers

Application Example: Home Automation System

Bill of Materials

- 1x EPM570F100C5NAA CPLD

- Assorted Relays for controlling home appliances

- Sensors (temperature, motion)

- 3.3V Voltage Regulator

- Push-buttons for manual controls

- Communication module (like ESP8266 for Wi-Fi)

Circuit Connections Detailed

1. Power Handling: Wire a 3.3V voltage regulator to VCCINT (e.g., pins 5, 45) and VCCIO (e.g., pins 15, 68). Make sure all GND pins (like 8, 31) are properly grounded.

2. Clock Signal: Introduce an external clock to the dedicated GCLK pin (e.g., pin 6) if the internal clock doesn't suffice.

3. Relay Connections: To control relays, link the EPM570F100C5NAA's GPIO pins to relay driver circuits. For example, connect pin 20 (IO_20) to the control input of Relay1, and pin 21 (IO_21) to Relay2.

4. Sensor Inputs: If you're employing temperature and motion sensors, connect their output to additional GPIO pins. For instance, a temperature sensor can be connected to pin 22 (IO_22), and a motion sensor to pin 23 (IO_23).

5. User Inputs: Attach push-buttons for manual controls to other GPIOs. For instance, a manual override button can be wired to pin 24 (IO_24).

6. Wireless Module: If a Wi-Fi module like ESP8266 is used, SPI or UART can be wired to pins 30-33 (IO_30 to IO_33).

Engineering Considerations

- Consumption of Power: Power budgeting is critical, especially if the EPM570F100C5NAA is part of a battery-operated system.

- Signal Conditioning: Filters or debouncing circuits may be needed for sensor inputs.

- Programmable Logic: The logic embedded in EPM570F100C5NAA needs to be carefully designed, tested, and loaded.

- Testing: Design your PCB layout so it allows for testing. Provision of test points on critical signals can save time during the debugging phase.

Understanding and incorporating these aspects will aid in the robust design of a home automation system that employs EPM570F100C5NAA.
