Intel EPM3128ATC144-10N

Part No.:: EPM3128ATC144-10N

Manufacturer:: Intel

Package:: 144-LQFP

Datasheet:: EPM3128ATC144-10N.pdf

Description:: IC CPLD 128MC 10NS 144TQFP

In Stock:: 2790

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EPM3128ATC144-10N Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
MAX® 3000A
ProductStatus:
Obsolete
ProgrammableType:
In System Programmable
DelayTimetpd(1)Max:
10 ns
VoltageSupply-Internal:
3V ~ 3.6V
NumberofLogicElements/Blocks:
8
NumberofMacrocells:
128
NumberofGates:
2500
NumberofI/O:
96
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

EPM3128ATC144-10N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EPM3128ATC144-10N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EPM3128ATC144-10N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EPM3128ATC144-10N information

Views：

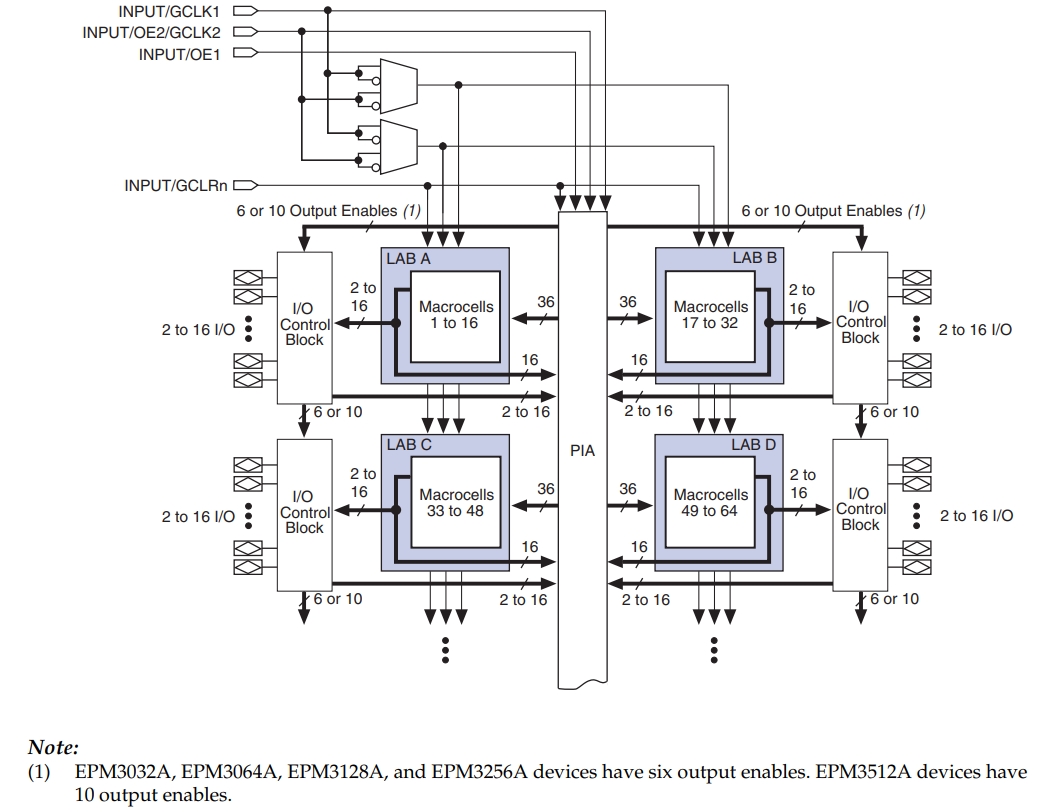

EPM3128ATC144-10N Typical application Circuitry

EPM3128ATC144-10N

The EPM3128ATC144-10N is a member of Altera's MAX 3000A series, known for its programmable logic capabilities. This chip is engineered to offer a versatile solution for custom logic applications in a variety of electronic systems.

Application: Fundamentally, the EPM3128ATC144-10N is a PLD that is based on EEPROM. It has many programmable logic elements and macrocells that can be adjusted to carry out a variety of logic operations. It is the best option for implementing arithmetic operations, complicated state machines, and combinational and sequential logic because of its flexibility. Furthermore, the logic configuration can be easily updated thanks to its in-system programmability capability.

Contexts for Application: There are numerous application areas where the EPM3128ATC144-10N is used, including but not limited to:

- Crafting custom logic for embedded systems.

- Serving as interface and glue logic in digital circuitry.

- Providing control logic for microprocessors and microcontrollers.

- Facilitating signal processing and filtering in communication systems.

Parameters: Key specifications of the EPM3128ATC144-10N include:

- A total of 128 macrocells, each equipped with programmable logic and flip-flops.

- A 144-pin TQFP package.

- A supply voltage of 5V, with a tolerance range of ±10%.

- A high-speed operational capability, with a maximum frequency reaching up to 227 MHz.

Circuit Design Example: Crafting a PWM Generator

Let's design a pulse-width modulation (PWM) generator using the EPM3128ATC144-10N chip. This generator will produce a PWM signal with a variable duty cycle controlled by an input voltage.

1. Define the Logic: Begin by outlining the logic for the PWM generator in a hardware description language (HDL), such as VHDL or Verilog. The generator should include an input for the control voltage and an output for the PWM signal.

2. Pin Assignment: Allocate the HDL signals to the physical pins of the EPM3128ATC144-10N. For instance, assign the control voltage input to pin 1 and the PWM output to pin 2.

3. Macrocell Configuration: Employ Altera Quartus software to set up the macrocells within the EPM3128ATC144-10N to realize the PWM logic. Each macrocell should be programmed to fulfill its specific role in generating the PWM signal.

4. Programming the Chip: After completing the design, use a programming device to upload the configuration data into the EPM3128ATC144-10N chip, thereby programming it to function as a PWM generator.

5. Testing the Circuit: Connect a power source and the necessary inputs and outputs. Verify that the PWM generator produces a signal with the correct duty cycle, which varies according to the control voltage.

Design Considerations:

When creating circuits with the EPM3128ATC144-10N, consider the following:

- Stable Power Supply: Ensure that the chip receives a consistent 5V power supply. Variations in voltage can negatively affect the device's performance.

- Signal Integrity: Be mindful of signal routing, particularly for the PWM output, to reduce the risk of crosstalk and signal distortion.

- Decoupling Capacitors: Position decoupling capacitors near the power supply pins to mitigate noise and stabilize the power supply.

- Thorough Programming and Configuration: Carefully check the programming data and pin assignments before loading the configuration to prevent logic errors.

By adhering to these considerations and meticulously designing the circuit, the EPM3128ATC144-10N chip can be effectively employed to create a versatile PWM generator for your electronic projects.
