Intel EPCS128SI16N

Part No.:: EPCS128SI16N

Manufacturer:: Intel

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: EPCS128SI16N.pdf

Description:: IC CONFIG DEVICE 128MBIT 16SOIC

In Stock:: 2671

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EPCS128SI16N Specifications

Packaging:
Tube
Series:
EPCS
ProductStatus:
Obsolete
ProgrammableType:
In System Programmable
MemorySize:
128Mb
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

EPCS128SI16N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EPCS128SI16N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EPCS128SI16N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EPCS128SI16N information

Views：

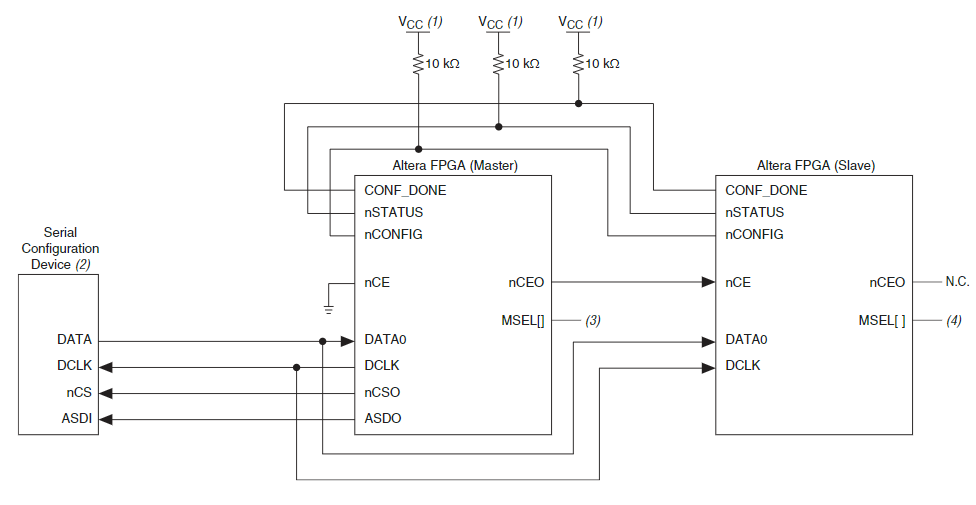

EPCS128SI16N Typical application Circuitry

The EPCS128SI16N is a serial configuration device from Altera (now a part of Intel). These chips are primarily used to store configuration data for Altera's FPGAs.

1. Functions of EPCS128SI16N:

- The main role of the EPCS128SI16N is to provide the configuration bitstream to FPGAs at startup. This dictates how the FPGA functions by establishing its internal logic configuration.

2. Application Scenarios:

- FPGA-based system designs, especially when the FPGA lacks onboard non-volatile memory for configuration storage.

- Digital signal processing systems, where FPGAs need dynamic reconfiguration.

- Industrial automation systems, employing FPGAs for control or signal processing tasks.

3. Parameter Features:

- High-density storage: The '128' indicates that the EPCS128SI16N has storage capacity adequate for sizable FPGA designs.

- Serial Configuration Interface: Uses a serial interface for configuration, reducing the number of required connections.

- Supports a range of Altera FPGA families: Making it versatile for various projects.

Application Scenario Example: Configuring an Altera Cyclone FPGA on an industrial control board.

Circuit Connection Instructions:

1. Power Supply:

- Connect the `VCC` pin of EPCS128SI16N to the system's positive voltage supply (as indicated in the datasheet). Ensure that all `GND` pins are linked to the system's ground.

2. Serial Data Connection:

- The `DOUT` pin from the EPCS128SI16N should be tied to the `DATA0` or `DIN` pin of the FPGA. This transmits the configuration bitstream from the device to the FPGA.

3. Clock:

- Connect the `DCLK` pin from the FPGA to the `DCLK` pin of EPCS128SI16N. This clock ensures synchronous data transfer between the configuration device and the FPGA.

4. Chip Select:

- The `nCSO` pin of EPCS128SI16N should be linked to the FPGA's chip select or enable pin for the configuration interface, allowing the FPGA to initialize and control the reading of the configuration bitstream.

5. Status and Configuration Indicators:

- The `nSTATUS` pin can be routed to an LED through a resistor, giving a visual cue when the configuration is successful or highlighting issues during the process.

Design Considerations:

1. Integrity of Connections:

- When laying out the PCB, ensure the traces between EPCS128SI16N and the FPGA are as short as possible to minimize potential interference or signal degradation.

2. Decoupling:

- Place decoupling capacitors near the `VCC` pin of EPCS128SI16N. This will help in filtering voltage spikes and noise, ensuring a steady supply.

3. Boot-Up Sequence:

- Understand the FPGA's boot-up sequence. Ensure the EPCS128SI16N is accessible and ready to provide the configuration data when the FPGA initiates the configuration process.

4. Protection:

- Consider adding protective elements, like ESD diodes, to safeguard the EPCS128SI16N from potential electrostatic discharges, especially in industrial scenarios where such events can be common.

Always refer to Altera's (or Intel's) official datasheets and guidelines when working with the EPCS128SI16N to ensure optimum performance and a smooth configuration process.
