Intel EN5319QI

Part No.:: EN5319QI

Manufacturer:: Intel

Package:: 24-QFN (6x4)

Datasheet:: EN5319QI.pdf

Description:: DC DC CONVERTER 0.6-5.05V

In Stock:: 2526

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EN5319QI Specifications

Package/Case:
24-QFN (6x4)
Packaging:
Series:
Enpirion® 5300
ProductStatus:
Obsolete
Type:
NumberofOutputs:
Voltage-Input(Min):
Voltage-Input(Max):
Voltage-Output1:
Voltage-Output2:
Voltage-Output3:
Voltage-Output4:
Current-Output(Max):
Power(Watts):
Voltage-Isolation:
Applications:
Features:
OperatingTemperature:
Efficiency:
MountingType:
Size/Dimension:
ControlFeatures:
ApprovalAgency:

EN5319QI this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EN5319QI price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EN5319QI to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EN5319QI information

Views：

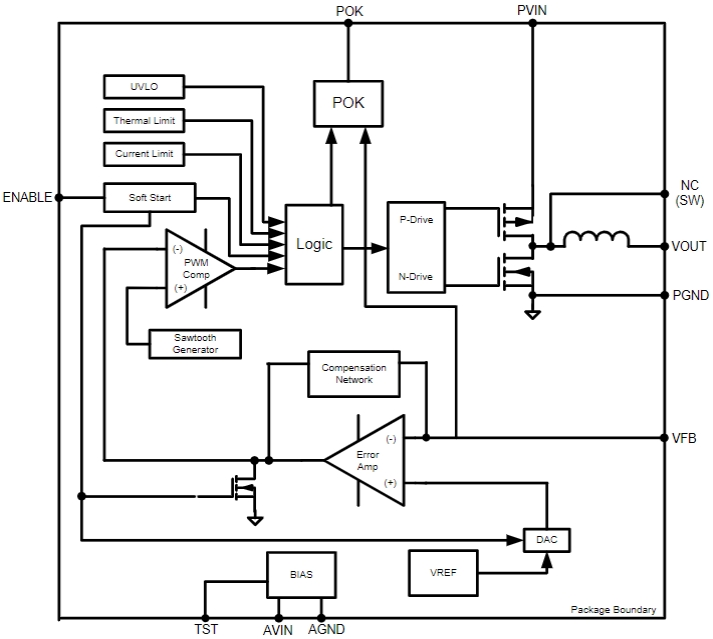

EN5319QI Typical application Circuitry

EN5319QI

The EN5319QI is a highly integrated, high-efficiency, synchronous buck DC-DC converter. This power management integrated circuit (PMIC) is designed by Enpirion (now part of Intel) and is especially suitable for applications where space and efficiency are critical. It features a built-in inductor and supports a compact footprint on PCBs, making it ideal for densely packed electronics such as telecommunications equipment, servers, and compact industrial devices.

Key Features and Specifications:

- Output Voltage: Provides a fixed output voltage, which is adjustable through external components.

- High Efficiency: Operates with high efficiency, which minimizes thermal stress and enhances power delivery performance.

- Integrated Inductor: Features an integrated inductor to reduce design complexity and improve power density.

- Output Current: Capable of delivering substantial current, typically up to 4 Amps, supporting demanding electronic loads.

- Input Voltage Range: Supports a wide input voltage range, making it versatile for different power systems.

- Package: Offered in a QFN package which ensures a minimal footprint on the system's board.

Application Scenario: Server Motherboard Power Supply

In a server motherboard application, the EN5319QI can be used to provide localized power conversion, efficiently converting a higher voltage from the main power supply down to the voltage required by specific components such as processors, memory, or auxiliary controllers.

Circuit Design Methodology:

1. Power Input Connection (Vin, GND):

- Vin (Voltage Input): Connect Vin to a stabilized 12V source from the server's main power supply. Ensure that the input connection includes a capacitor (typically 10 µF) close to the pin to stabilize the input power and filter high-frequency noise.

- GND (Ground Connection): Connect all GND pins to the system's ground plane. Good grounding is essential for minimizing noise and ensuring stable operation.

2. Output Voltage Setup (Vout, Feedback Network):

- Vout (Voltage Output): The output voltage should be set to the specific needs of the load. If adjustments are necessary, connect the feedback network (consisting of resistors R1 and R2) to the specified feedback pins to set the desired output voltage.

- Feedback Network: Carefully calculate the values of R1 and R2 to achieve accurate output voltage based on the feedback mechanism described in the datasheet.

3. Power Good and Enable Pins (PG, EN):

- PG (Power Good Output): Connect this pin to a status LED or an input to a supervisory microcontroller to indicate when the output voltage is stable and within the tolerance.

- EN (Enable Pin): This pin can be driven by a logic signal to turn the converter on or off. Connect it to a controller or logic circuit that can selectively disable the power when not needed or during a system power-down sequence.

4. Output Capacitance (Capacitors at Vout):

- Place capacitors at the Vout pin to stabilize the output voltage and filter any residual switching noise. Typically, a combination of ceramics and bulk capacitors (like tantalum or polymer) are used to optimize performance across different frequencies.

5. Thermal Management and Layout Considerations:

- Thermal Management: Given the compact nature and potential high power dissipation, ensure adequate cooling is provided. Thermal pads or heatsinks might be necessary depending on the load and operating environment.

- PCB Layout: Minimize the loop area formed by the input and output capacitors and the EN5319QI to reduce electromagnetic interference (EMI). Use thick traces for high-current paths to minimize voltage drops and improve efficiency.

Design Considerations:

- Signal Integrity and Noise: Keep sensitive analog or digital lines away from the high-current switching paths to avoid noise coupling.

- Reliability: Incorporate protection features such as over-current, over-voltage, under-voltage, and thermal shutdown as necessary to protect the server motherboard from power anomalies.

- Component Selection: Use high-quality components that meet the specifications and expected operating conditions, especially capacitors and resistors that directly affect the voltage regulation and stability.

- Testing and Validation: Extensively test the power supply circuit under all operational conditions to ensure it meets the required specifications and performance standards.

Implementing the EN5319QI in a server motherboard scenario efficiently addresses the challenge of providing stable, reliable power to sensitive electronic components, maximizing system performance and enhancing overall reliability.
