What is the Additional Feature ?

Name: EL4583CSZ-T7
Brand: Renesas Electronics America Inc
SKU: EL4583CSZ-T7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Renesas Electronics America Inc EL4583CSZ-T7

Part No.:: EL4583CSZ-T7

Manufacturer:: Renesas Electronics America Inc

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: EL4583CSZ-T7.pdf

Description:: IC VIDEO SYNC SEPARATOR 16SOIC

In Stock:: 3786

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EL4583CSZ-T7 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
Function:
Separator
Applications:
Professional Video
Standards:
NTSC, PAL, SECAM
ControlInterface:
-
Voltage-Supply:
5V
MountingType:
Surface Mount

EL4583CSZ-T7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EL4583CSZ-T7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EL4583CSZ-T7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EL4583CSZ-T7 information

Views：

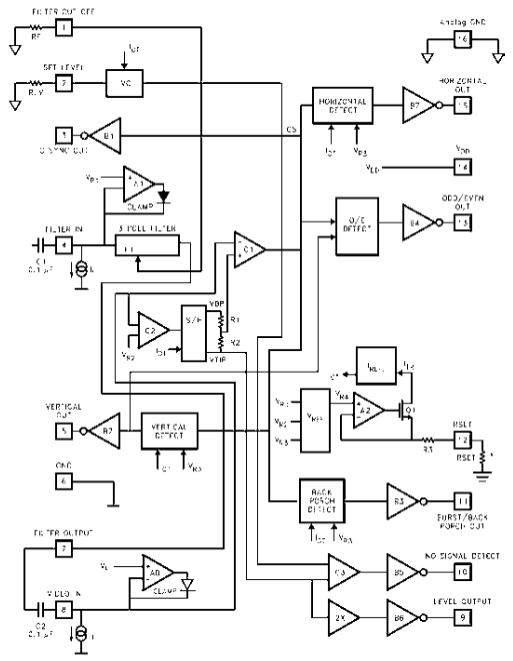

EL4583CSZ-T7 Typical application Circuitry

EL4583CSZ-T7

The EL4583CSZ-T7 is a sync separator chip designed for extracting timing information from standard analog video signals, making it ideal for video processing applications that require synchronization of video content with external sources or devices. This chip is particularly useful in applications such as broadcast equipment, video editing systems, and other multimedia processing systems.

Key Features and Specifications:

- Functionality: Sync separator that extracts horizontal and vertical synchronization pulses from composite video signals.

- Supported Video Formats: Compatible with NTSC, PAL, and SECAM standards.

- Outputs: Provides critical timing outputs such as composite sync, vertical sync, and burst/back porch intervals.

- Power Supply Requirements: Operates typically on a 5V single supply.

- Package: Available in an SOIC package which is conducive to integration in various circuit designs.

Application Scenario: Video Surveillance System

In a video surveillance system, the EL4583CSZ-T7 can be used to synchronize multiple video inputs from different cameras before processing or recording, ensuring that all video streams are aligned in time for effective monitoring and analysis.

Circuit Design Methodology:

1. Power Supply Connection (Pin 8: VDD, Pin 4: GND):

- VDD (Power Supply): Connect Pin 8 to a +5V power source. It is critical to provide a stable and clean supply to minimize signal integrity issues. Include a 0.1 µF decoupling capacitor near the power pin to filter out any high-frequency noise.

- GND (Ground Connection): Connect Pin 4 to the ground. Ensure that the ground plane on the PCB is extensive enough to handle ground currents without significant voltage drops.

2. Video Input Connection (Pin 3: VIDEO IN):

- VIDEO IN: Connect this pin to the output of the camera. Use a coupling capacitor (typically 0.1 µF) to block DC components from the video signal and match the AC characteristics of the incoming video signal to the chip's input requirements.

3. Sync Signal Outputs (Pin 1: CS, Pin 2: VS, Pin 5: BP/BT):

- Composite Sync (CS, Pin 1): Route this output to any system components that require composite sync signals for further video processing or timing alignment.

- Vertical Sync (VS, Pin 2): Connect to systems that require vertical synchronization, such as switching between video sources or frames.

- Burst/Back Porch (BP/BT, Pin 5): Utilize this timing signal for color processing units or other timing-dependent video processing circuits.

4. Additional Circuit Components:

- Include series resistors on the video input to protect the IC from potential overvoltage and to control the input current.

- Place a pull-up resistor on the output pins if interfacing with digital circuits that require a defined high level when outputs are inactive.

Design Considerations:

- Signal Integrity: Carefully route the video and sync signal paths to avoid interference from high-frequency noise sources like power supplies or digital buses. Use shielded cables for video inputs where possible.

- Power Integrity: Ensure the power supply is well-regulated and capable of supplying clean power under varying load conditions. Use additional filtering and stabilization if the environment has significant electrical noise.

- Thermal Management: While the EL4583CSZ-T7 does not typically generate substantial heat, monitor the ambient temperature and ensure that the operational limits are not exceeded in tightly packed enclosures.

- Component Placement: Place sensitive components such as capacitors and resistors close to the chip to minimize the effects of PCB layout parasitics.

- System Testing: Thoroughly test the synchronization functionality under various conditions to ensure reliability, especially in surveillance applications where continuous operation is critical.

By employing the EL4583CSZ-T7 in a video surveillance system, designers can effectively manage multiple video streams, ensuring synchronization and timing precision that is crucial for security monitoring and recording applications. This setup highlights the chip's utility in complex video processing environments where precise timing and synchronization are required for optimal operation.
