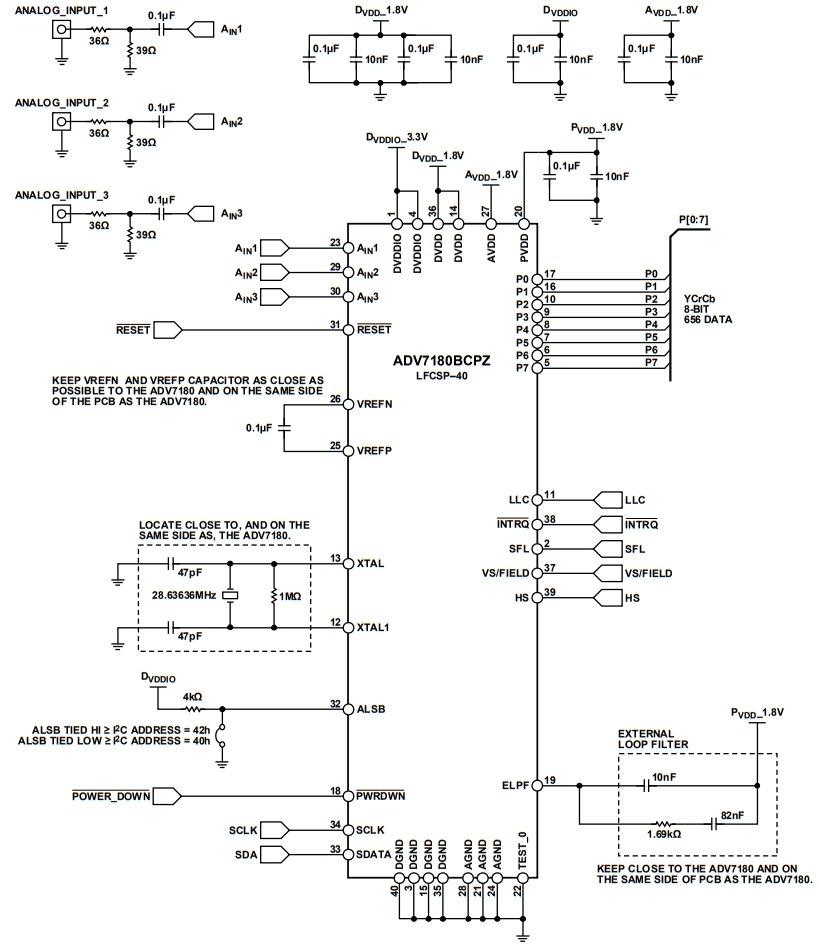

ADV7180BCPZ-REEL Typical application Circuitry

ADV7180BCPZ-REEL

ADV7180BCPZ-REEL is an analog-to-digital video decoder chip, specifically designed to convert standard-definition analog video signals into a digital format. This chip is used primarily in applications where high-quality video capture from analog sources is required.

Function and Application Scenarios

1. Automotive Video Systems: ADV7180BCPZ-REEL is ideal for automotive applications like rearview camera systems, where it decodes analog video signals from the camera into digital format for display.

2. Video Surveillance Systems: In surveillance, it's used to convert analog camera feeds into digital data for processing and recording.

Parameter Features

- Standard-Definition Decoding: Supports NTSC, PAL, and SECAM video formats.

- 10-Bit ADC: Provides high-quality 10-bit analog-to-digital conversion.

- Low Power Consumption: Designed for efficient power usage in continuous operation environments.

- Compact Package: Comes in a 32-lead LFCSP package, fitting for space-sensitive applications.

Specific Application Scenario and Circuit Connection

Scenario: Rearview Camera System in Automotive Application

1. Analog Video Input: Connect the rearview camera's analog output to pin 11 (AIN1) of ADV7180BCPZ-REEL.

2. Power Supply Connections: Supply 3.3V to pin 32 (DVDD) for digital operation and 1.8V to pin 22 (AVDD) for the analog section.

3. Digital Video Output: The digital video output can be taken from pins 25-31 (P[7:1]) and connected to a digital display processor or controller.

4. Grounding and Stability: Ensure that pins 1, 12, 13, and 24 are well grounded for system stability.

5. Circuit Design Considerations: Focus on minimizing noise, particularly in the layout and separation of analog and digital grounds, and power supply decoupling.

Design Considerations

1. Maintaining Video Quality: Use the 10-bit ADC of ADV7180BCPZ-REEL to ensure high-quality video capture and conversion.

2. Stable Power Supply: Ensure the power supply is stable and clean, crucial for maintaining the performance of the video decoding.

3. Noise Reduction in Design: Pay attention to circuit layout to reduce noise in the analog-to-digital conversion process.

4. Thermal Management in Automotive Environments: Implement appropriate cooling solutions, as automotive environments can present thermal challenges.

Integrating ADV7180BCPZ-REEL into circuit designs requires careful consideration of the application's specific requirements, the chip's functionalities, ensuring accurate pin connections, and an optimized layout. Managing signal quality, power stability, noise reduction, and thermal considerations are key to achieving a successful and reliable solution in automotive rearview camera systems or other video decoding applications.
