Texas Instruments DS90UB964TRGCTQ1

Part No.:: DS90UB964TRGCTQ1

Manufacturer:: Texas Instruments

Package:: 64-VFQFN Exposed Pad

Datasheet:: DS90UB964TRGCTQ1.pdf

Description:: IC DESERIALIZER 800MBPS 64VQFN

In Stock:: 3206

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS90UB964TRGCTQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Function:
Deserializer
DataRate:
800Mbps
InputType:
FPD-Link III, LVDS
OutputType:
CSI-2, MIPI
NumberofInputs:
-
NumberofOutputs:
-
Voltage-Supply:
1.8V, 3.3V
OperatingTemperature:
-40°C ~ 105°C (TA)
MountingType:
Surface Mount

DS90UB964TRGCTQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS90UB964TRGCTQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS90UB964TRGCTQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS90UB964TRGCTQ1 information

Views：

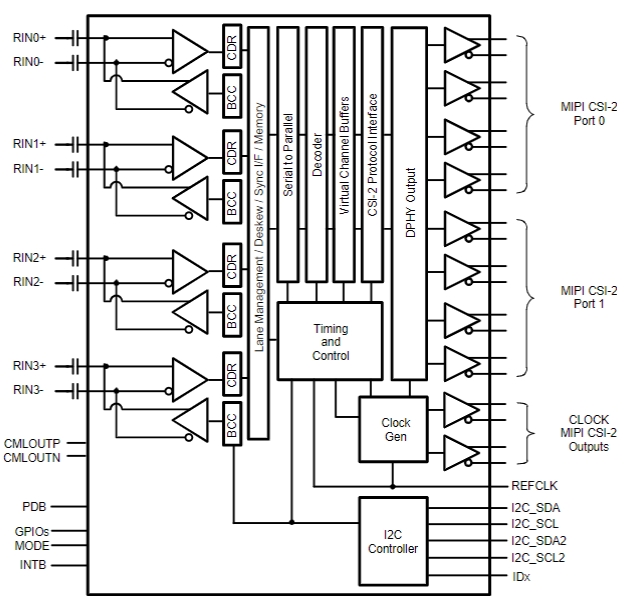

DS90UB964TRGCTQ1 Typical application Circuitry

DS90UB964TRGCTQ1

The DS90UB964TRGCTQ1 is a highly integrated automotive-grade deserializer chip from Texas Instruments, designed for advanced driver assistance systems (ADAS). It's part of the FPD-Link™ III series, optimized for receiving high-speed serialized data streams from automotive cameras and sensors, then deserializing this data for ADAS processing units. The chip supports high-definition video and data aggregation from multiple sources, making it an essential component in multi-camera automotive safety systems, such as surround-view systems, rear-view camera systems, and other sensor-based driver assist features.

Key Features and Specifications:

- Multiple Input Channels: Supports up to four FPD-Link III inputs, allowing connections from multiple cameras or sensors.

- High-Speed Data Transmission: Facilitates high-speed video and data transmission, crucial for real-time ADAS functionalities.

- I2C Master for Sensor Control: Integrates an I2C master to control connected sensors or cameras directly, simplifying system architecture.

- Automotive-Grade Reliability: Designed to meet the rigorous demands of automotive environments, including extended temperature ranges and vibration resistance.

- Coax or STP Cable Support: Enables transmission over coaxial or shielded twisted-pair (STP) cables, offering flexibility in vehicle wiring.

Application Scenario: Surround-View Camera System for a Vehicle

In this scenario, the DS90UB964TRGCTQ1 is utilized in a vehicle's surround-view system, aggregating video data from four cameras positioned around the vehicle to create a 360-degree view, aiding in parking and low-speed maneuvers.

Circuit Design Methodology:

1. Power Supply Connection (AVDD, DVDD, PVDD, GND): Connect AVDD, DVDD, and PVDD to a stable 3.3V power source, ensuring the device operates reliably. Connect all GND pins to the system's ground. It's critical to use decoupling capacitors near these power pins to filter noise.

2. Camera Input Connections (RX0+, RX0- to RX3+, RX3-): Interface the differential pairs from the output of the cameras to the RX0+ to RX3+ and RX0- to RX3- pins on the DS90UB964TRGCTQ1. Proper impedance matching and termination are vital for maintaining signal integrity.

3. I2C Bus for Camera Control (SDA, SCL): Connect the SDA and SCL pins to the cameras' control interfaces, allowing the DS90UB964TRGCTQ1 to configure camera settings and retrieve status information via I2C.

4. Deserializer Output to ADAS Processor (CSI-2 Interface): Utilize the MIPI CSI-2 interface pins to connect the deserialized video data output to the ADAS processing unit. This connection is essential for the high-speed transfer of video data for processing.

5. Configuration and Diagnostics (GPIO, INT): Employ the GPIO pins for system-level control signals and connect the INT pin to the processor to handle diagnostic alerts and status indications from the DS90UB964TRGCTQ1.

Design Considerations:

- EMI and Signal Integrity: Given the high-speed nature of data transmission, careful PCB layout to minimize EMI and preserve signal integrity is critical. Differential signal routing and shielding techniques should be employed.

- Power Supply Noise: The stability of the power supply is crucial for the DS90UB964TRGCTQ1's performance. Implement robust power management with automotive-grade components to handle the electrical disturbances typical in vehicles.

- Thermal Management: Ensure adequate thermal management strategies are in place, considering the DS90UB964TRGCTQ1's power dissipation and ambient temperature conditions in automotive environments.

- Camera and Cable Selection: The choice of cameras and the quality of coaxial or STP cables directly affect system performance. Ensure compatibility and reliability to maintain high video quality.

- System Redundancy and Safety: For safety-critical applications like ADAS, incorporating redundancy and fail-safe mechanisms is vital, especially in signal paths and power supply design.

Implementing the DS90UB964TRGCTQ1 in a surround-view system underscores its utility in handling complex video data aggregation and deserialization tasks, pivotal for enhancing vehicle safety and assisting drivers through accurate and comprehensive visual information. This setup demonstrates the DS90UB964TRGCTQ1's role in enabling sophisticated ADAS features by facilitating seamless integration of multiple video sources into a coherent and actionable data stream.
