Texas Instruments DS90UB926QSQX/NOPB

Part No.:: DS90UB926QSQX/NOPB

Manufacturer:: Texas Instruments

Package:: 60-WFQFN Exposed Pad

Datasheet:: DS90UB926QSQX/NOPB.pdf

Description:: IC DESERLIZR FPD LINKIII 60WQFN

In Stock:: 2968

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS90UB926QSQX/NOPB Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Function:
Deserializer
DataRate:
2.975Gbps
InputType:
FPD-Link III, LVDS
OutputType:
LVCMOS
NumberofInputs:
1
NumberofOutputs:
24
Voltage-Supply:
1.71V ~ 1.89V, 3V ~ 3.6V
OperatingTemperature:
-40°C ~ 105°C (TA)
MountingType:
Surface Mount

DS90UB926QSQX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS90UB926QSQX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS90UB926QSQX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS90UB926QSQX/NOPB information

Views：

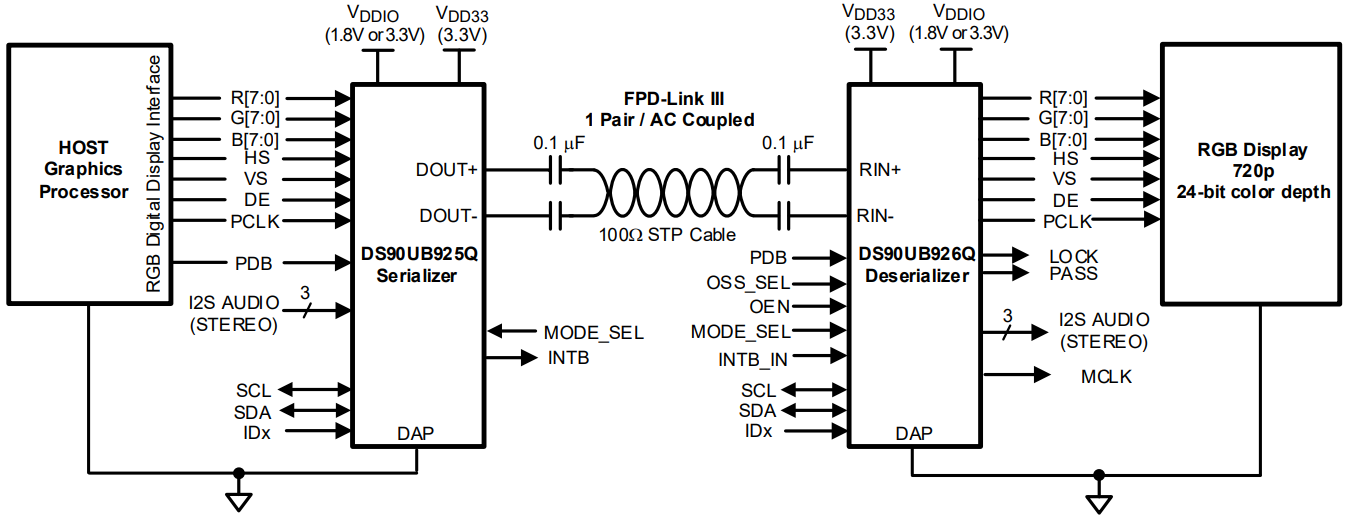

DS90UB926QSQX/NOPB Typical application Circuitry

DS90UB926QSQX NOPB

The DS90UB926QSQX/NOPB is part of the DS90UB series from Texas Instruments, distinguished as a FPD-Link III deserializer. This device specializes in converting high-speed serialized LVDS (Low Voltage Differential Signaling) data back into parallel data or video formats. It's extensively used in automotive applications, including advanced driver assistance systems, infotainment systems, and rear-seat entertainment, where efficient high-speed data communication is essential.

1. Power Supply Connection: The DS90UB926QSQX/NOPB typically operates with a 3.3V power supply. Connect a steady 3.3V supply to the VCC pin. A steady and noise-free power source is essential to the device's best deserialization of high-speed communications.

2. Grounding the Device: All GND pins of the DS90UB926QSQX/NOPB should be connected to the ground of your circuit. A solid ground connection is essential for minimizing noise and enhancing the reliability of the deserialization process.

3. LVDS Input Configuration: The device is designed to receive serialized data through LVDS inputs. Connect these pins to the output of an LVDS serializer. Using twisted-pair cables for these connections is recommended to maintain the integrity of the high-speed differential signals.

4. Parallel Data Output Setup: The DS90UB926QSQX/NOPB converts the serialized data into a parallel format. Connect these output pins to the corresponding inputs of your target device, such as a video processor or display interface.

5. Clock Input Connectivity: A clock signal is necessary for the operation of the DS90UB926QSQX/NOPB. Connect an appropriate clock source to the CLKIN pin. The quality and consistency of this clock signal are vital for accurate data deserialization.

6. Control and Configuration Pin Management: The device includes pins for various control and configuration functions. Refer to the datasheet for detailed information on these pins and connect them based on your system's specific requirements.

7. Signal Routing and PCB Layout: In high-speed signal applications, careful planning of PCB trace routing is critical. Ensure controlled impedance and minimal crosstalk between signal lines for optimal deserializer performance.

8. Thermal Management Planning: Given the high-speed operation of the DS90UB926QSQX/NOPB, consider thermal management in your design, especially if the device is located in a densely populated PCB area or near sources of heat.

In summary, the DS90UB926QSQX/NOPB is a high-performance FPD-Link III deserializer, suitable for high-speed data communication applications, particularly in the automotive industry. Effective deployment involves connecting to a 3.3V power source, ensuring robust grounding, configuring LVDS inputs and parallel outputs, managing clock inputs, setting up control and configuration pins, careful signal routing, and considering thermal management. These measures are key to fully utilizing the DS90UB926QSQX/NOPB in advanced communication and display systems.
